Connection box OEM COUPL-UTP6-CR — UTP Cat6 coupling box for network cable termination

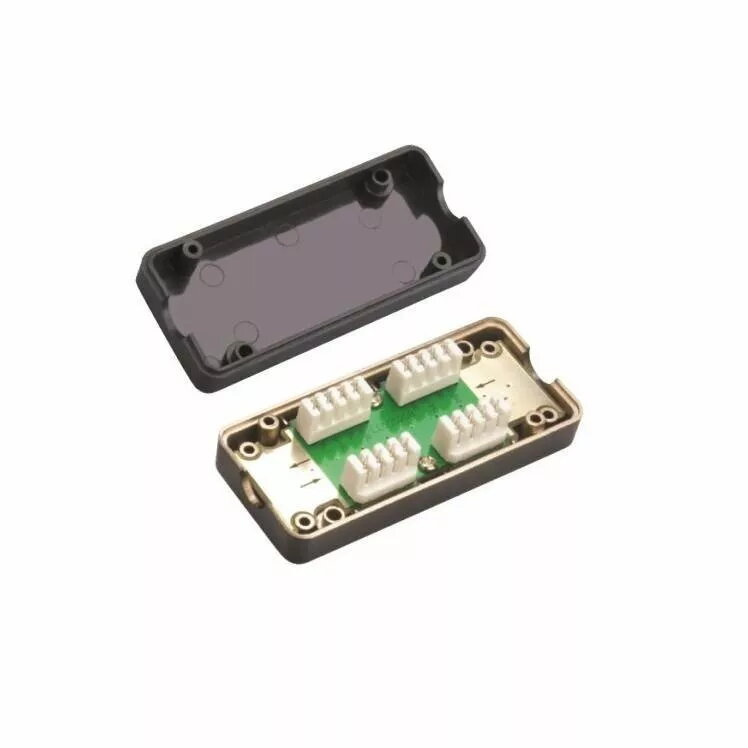

Connection box OEM COUPL-UTP6-CR is a compact UTP Cat6 coupling box designed to terminate and join Cat6 network cables. The unit provides an enclosed point for connecting two Cat6 UTP cable runs, protecting terminations from dust and mechanical stress while maintaining signal continuity. It is intended for small network installations, patching short runs or extending Ethernet links where a simple, space-saving coupling is required.

Advantages

The coupling box offers a straightforward method to join two Cat6 UTP cables without the need for larger patch panels or tool-intensive splicing. Its compact enclosure keeps twisted-pair connections contained and protected, reducing the risk of accidental disconnection or contamination. The product supports standard Cat6 wiring practices to preserve network performance and provides an organized point for cable management in constrained spaces.

Suitable for

• Joining two Cat6 UTP cable runs in residential and small office networks
• Extending Ethernet links over short additional distances
• Making discrete terminations in tight or concealed installation locations
• Temporary or semi-permanent patching where a full patch panel is unnecessary

Key specifications

• Cable standard compatibility: UTP Cat6 (twisted-pair)
• Function: in-line coupling/termination box for two cable ends
• Enclosure type: compact protective housing
• Protection: shields terminations from dust and mechanical strain
• Installation: wall-mounted or recessed options depending on site (requires mechanical fixing)

How to use

Prepare both Cat6 UTP cable ends by stripping outer jacket and arranging conductor pairs according to the chosen wiring standard (T568A or T568B). Insert the conductors into the corresponding termination points inside the coupling box and secure them following standard termination practice to ensure solid contact. Close the enclosure to provide mechanical protection and, if applicable, fix the box to the mounting surface to prevent movement. Verify continuity and signal quality with a cable tester after termination to confirm proper connection.

Usage recommendations

Use consistent wiring standard (T568A or T568B) on both cable ends to avoid cross-wiring. Avoid running high-voltage power cables parallel to the terminated UTP connection to minimize interference. For permanent or high-density installations, consider a dedicated patch panel or keystone jack solution; use this coupling box for space-limited or temporary connections.
