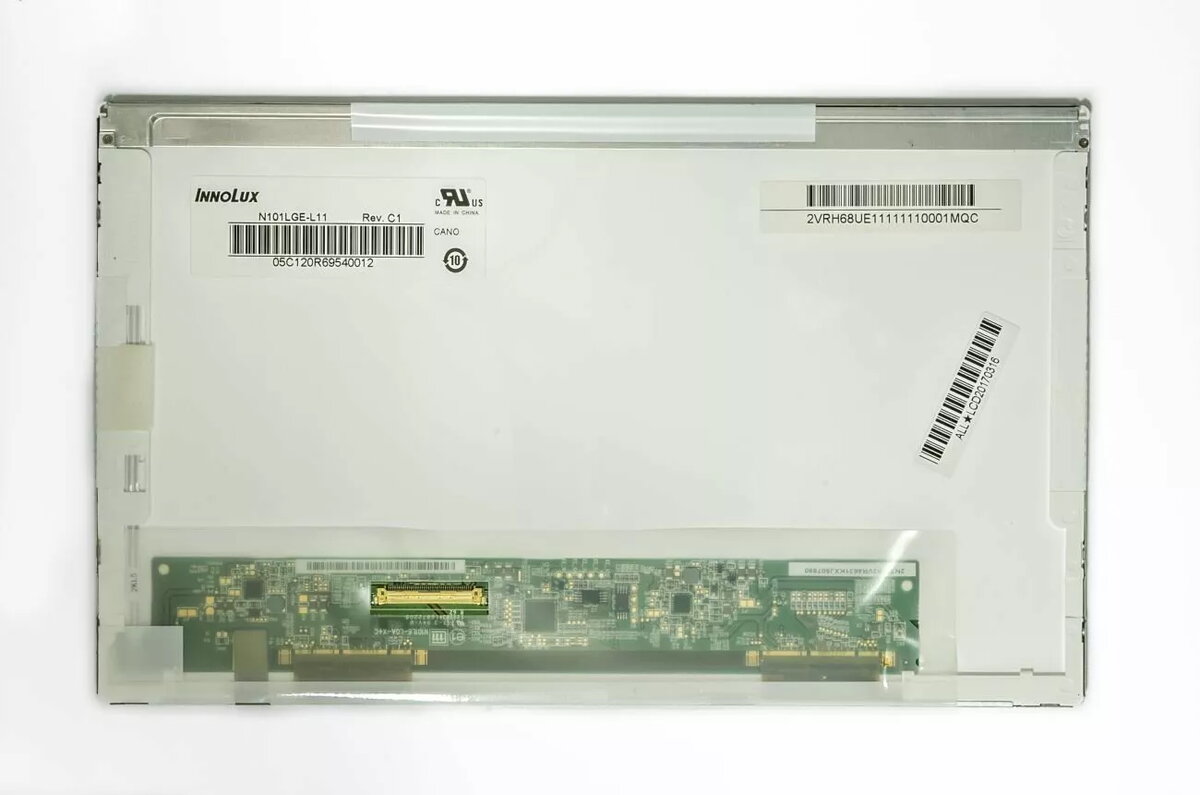

10.1-inch LCD screen OEM LC300501 1024x600 matte display panel

10.1-inch LCD replacement panel with 1024×600 resolution, matte surface and LED backlight. The display uses a 40‑pin connector on the left side and is identified as model N101LGE-L11 (MPN: LC300501). It is compatible with a range of manufacturer part numbers from AU Optronics, Chi Mei, Chunghwa, Hannstar, IVO and LG Philips, as well as several Samsung models. The panel is intended for use as a replacement screen in laptops, tablets or other portable devices that accept a 10.1" 1024×600 matte LCD module. Warranty: 6 months.

Advantages

This 10.1-inch LCD panel offers a matte, anti-glare surface to reduce reflections and improve visibility in ambient light. The LED backlight delivers even illumination with standard HD 1024×600 resolution, and the common 40‑pin left-side connector simplifies compatibility with many device controllers and harnesses. The OEM form factor (model N101LGE-L11 / LC300501) aligns with multiple original part numbers, making it suitable for repair or OEM replacement projects.

Suitable for

• Laptop screen replacements for 10.1" notebooks
• Tablet and portable monitor repair or rebuilds
• Embedded devices and custom projects requiring a 1024×600 matte display

Key specifications

• Screen diagonal: 10.1"
• Resolution: 1024×600
• Surface: matte (anti-glare)
• Backlight: LED
• Connector: 40‑pin, left-side
• Model: N101LGE-L11 (MPN: LC300501)
• Warranty: 6 months

How to use

Power off the device and disconnect any power sources and battery before beginning replacement. Remove the bezel and existing screen following the device manufacturer’s service instructions. Disconnect the old panel’s 40‑pin connector and carefully connect the new 40‑pin left-side panel (N101LGE-L11). Reassemble the device, reconnect power, and verify the display initializes at 1024×600 with correct orientation and backlight. If the image does not appear, check cable seating, inverter/LED driver connections, and compatibility with the device’s controller board.

Usage recommendations

Handle the LCD by its edges, avoid touching the active area, and use an anti-static wrist strap when working inside electronic devices. Confirm the device’s connector pinout and firmware/controller compatibility before installation. If unsure about compatibility, compare the old panel’s part number with the compatible models list and consult a qualified technician for installation.
