Optical Endstop Limit Switch for 3D Printers OEM Endstop Reprap Ramps 1.4

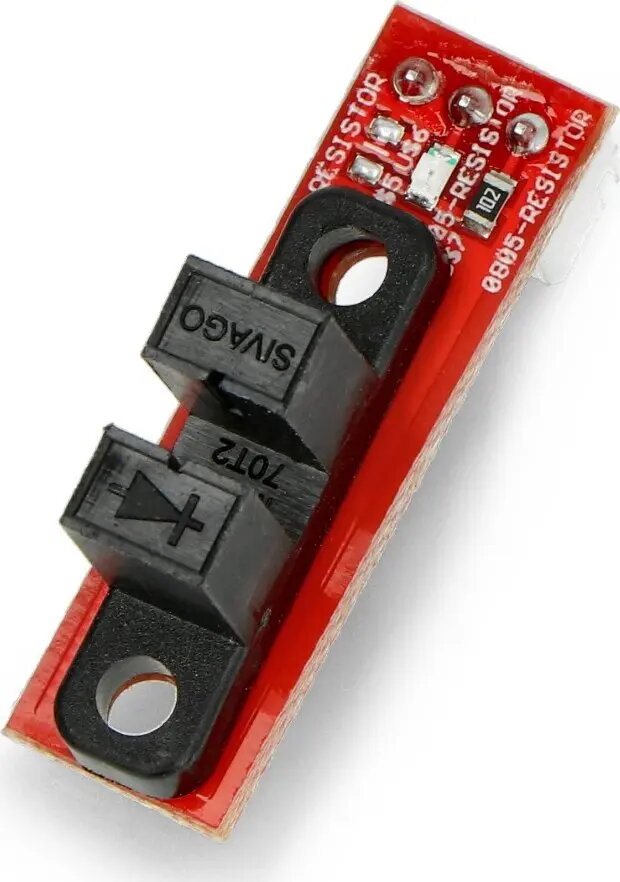

Optical Endstop Limit Switch for 3D Printers OEM Endstop Reprap Ramps 1.4 is a non-contact optical sensor module intended for RepRap-compatible Cartesian 3D printers and RAMPS 1.4 based electronics. The module detects the presence or passage of a mechanical flag or tab to signal axis home positions and limit events. Its optical detection method reduces mechanical wear and contact bounce compared with mechanical microswitches and helps maintain consistent homing and repeatability for X, Y and Z axes.

Advantages

The optical endstop provides non-contact sensing that eliminates physical switch wear and minimizes electrical debounce. It offers fast response time and consistent triggering, improving positional repeatability for homing and safety stops. The compact PCB form factor and standard three-pin connector make it compatible with many RepRap-style controller boards, including RAMPS 1.4, and it is straightforward to integrate into existing printer frames or DIY builds.

Suitable for

• Homing and limit detection on Cartesian 3D printers (X, Y, Z axes)
• RepRap and RAMPS 1.4 based electronics and controllers
• Retrofit upgrades replacing mechanical endstops to reduce wear and bounce
• DIY printer builds and experimental or educational projects requiring reliable position sensing

Key specifications

• Detection type: optical non-contact sensor
• Connector: standard three-pin header (signal, VCC, GND)
• Compatible logic levels: typical microcontroller TTL/CMOS 5V systems
• Mounting: compact PCB with mounting holes suitable for common RepRap endstop brackets
• Typical applications: axis homing, limit sensing, probe/flag detection

How to use

Mount the optical endstop so the printer axis carries a small flag or tab through the sensor’s detection gap at the intended home or limit position. Connect the three-pin header to the controller board endstop input (signal, VCC, GND), observing correct polarity and the controller’s voltage requirements. Configure the firmware endstop type and logic (normally open/closed or inverted) according to the optical sensor’s output behavior and test homing moves at low speed to verify trigger position before normal operation.

Usage recommendations

Place the sensor away from direct exposure to bright ambient light where practical, and ensure the flag or tab reliably passes through the sensing path without wobble. Verify wiring and firmware settings, and perform initial homing tests at reduced speed to confirm correct trigger polarity and position before running full prints.
