Wireless Handheld Microphone System Omnitronic UHF-602 2-Channel 520–554 MHz

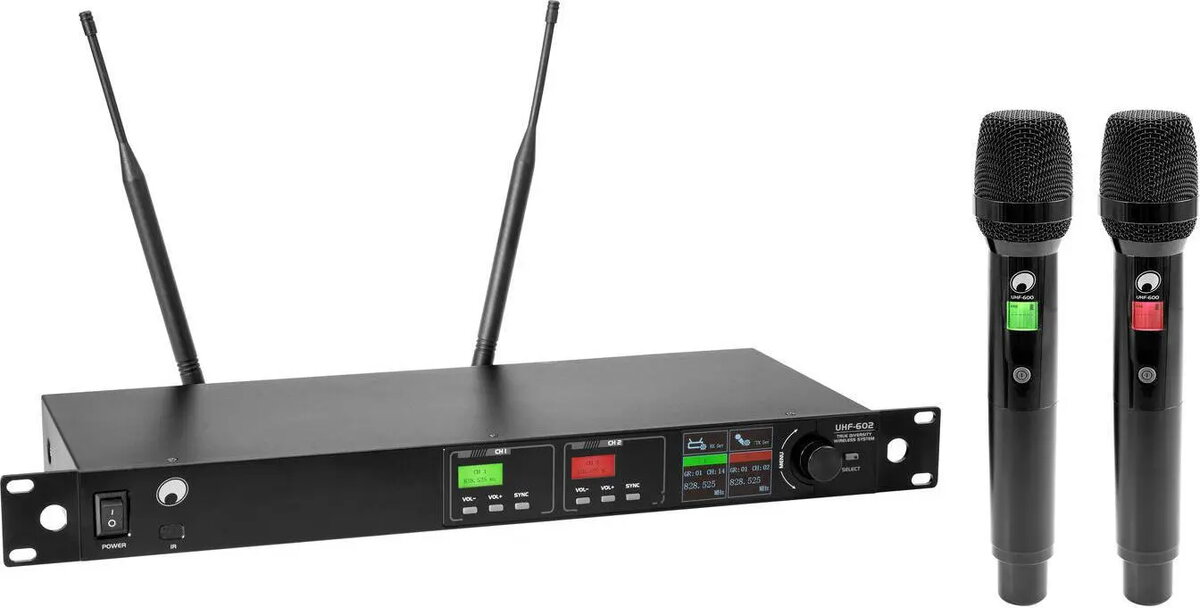

The Omnitronic UHF-602 is a wireless handheld microphone system with two independent channels operating in the 520–554 MHz UHF band. The set includes two handheld transmitters and a dual-channel receiver designed for voice reinforcement in presentations, small events and public speaking. The receiver provides two separate audio outputs and front-panel controls for simple operation and quick setup.

Advantages

The system offers two simultaneous channels allowing dual-microphone use without wiring. Operating in the 520–554 MHz UHF range provides a balance of range and interference resistance typical for UHF systems. Handheld transmitters are integrated for immediate use, and the dual-channel receiver simplifies connection to PA systems or mixers with separate outputs for each channel. Setup is intended to be straightforward, with user controls on the receiver for level adjustment and channel selection.

Suitable for

• Presentations and corporate meetings
• Small to medium-sized live events and gigs
• Public speaking, lectures and workshops
• Houses of worship and community centres

When it may not be suitable

The UHF-602 is intended for small to medium venues; it may not provide the extended range or multiple-channel capacity required for large-scale productions, stadium events or complex multi-microphone setups. Environments with heavy RF congestion or regulatory restrictions on the 520–554 MHz band could limit performance or require a different frequency band or professional frequency coordination.

Key specifications

• Operating frequency range: 520–554 MHz UHF
• Channels: 2 independent wireless channels
• Transmitter type: handheld wireless microphones (two units included)
• Receiver type: dual-channel rack/table receiver with separate outputs
• Typical applications: vocal reinforcement, speech and presentation use

How to use

Place the receiver in a location with clear line-of-sight to the performance area and connect its audio outputs to a mixer or PA system. Power on the receiver and both handheld transmitters, select matching channels or frequencies on transmitter and receiver, and set audio gain levels using the receiver controls and the mixer input trim. Position the handheld microphones a few centimetres from the mouth while speaking or singing to obtain a clear signal and reduce handling noise. Monitor audio levels and RF indicators to ensure stable reception and switch off unused transmitters when not in use.

What to consider before purchase

• Verify that operation in the 520–554 MHz band is permitted in your country and venue.
• Assess the size of the venue and the required wireless range for consistent coverage.
• Consider future expansion needs—this is a two-channel system; larger setups may require additional receivers or a multi-channel system.

Usage recommendations

For reliable performance, position the receiver away from other active RF sources and metal obstructions, use line-of-sight placement when possible, and perform a frequency scan or soundcheck before the event to confirm interference-free operation across both channels.
