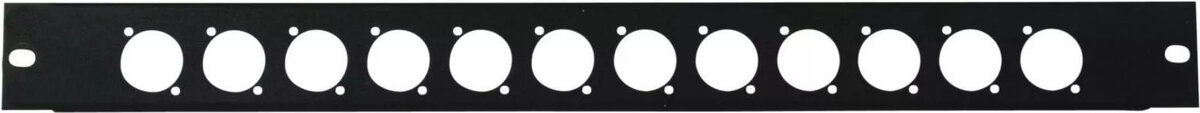

Front panel Omnitronic Z-19 12 x XLR D-Type 1U — rack panel with twelve XLR D-Type connectors

The Omnitronic Z-19 front panel is a 1U rack accessory fitted with twelve XLR D-Type connectors designed for professional audio patching and cable exit management. The panel provides a compact, standardized interface for multiple XLR connections, enabling tidy cable routing and quick access to balanced audio inputs and outputs in studio, live sound or installation environments.

Advantages

The panel consolidates twelve XLR D-Type connectors into a single 1U module, saving rack space and reducing cable clutter. Its standardized D-Type mounting simplifies installation and replacement within a rack system, while the front-facing XLR ports keep connections accessible for rapid re-patching. The robust construction supports repeated use in professional settings and helps maintain organized signal flow across devices.

Suitable for

• Studio patch bays and channel routing
• Live sound racks and stage boxes
• Broadcast and recording installations
• Fixed AV installations in venues and conference rooms
• Mobile rigs where compact, reliable XLR access is required

Key specifications

• Form factor: 1U rack panel for standard 19-inch racks
• Connector type: twelve female XLR D-Type ports (mounted via D-Sub interface)
• Material: metal front plate designed for durability in professional use
• Color/finish: typically matte or powder-coated surface to resist wear (actual finish may vary)
• Mounting: standard rack screw holes compatible with 19" rack enclosures
• Application: balanced audio signal routing and cable exit management

How to use

Install the Omnitronic Z-19 into a standard 19-inch rack occupying one unit of vertical space. Secure the panel with appropriate rack screws, then connect multi-core D-Type breakout cables or wiring harnesses at the rear D-Type interface to distribute audio signals to and from console, stage boxes, recorders, or other equipment. Use the front-facing XLR ports for quick access when patching microphones, direct boxes, processors, or outputs. Ensure proper wiring and shielding practices when terminating cables to preserve signal integrity.

Usage recommendations

For reliable long-term operation, route cables to avoid sharp bends and mechanical strain at connector points, periodically check mounting screws for tightness, and use labeled cable ties or markers to identify channels. Verify pin wiring conventions before connecting equipment to ensure correct signal polarity and compatibility.
