Opticon OPR2001 Handheld 1D/2D Barcode Scanner

Name: Opticon OPR2001 Handheld 1D/2D Barcode 11646
Brand: Opticon
SKU: 1945533
Price: 129.99 EUR
Availability: OutOfStock

Dreame – powerful cleaning with ease

Dreame vacuums for fast and efficient cleaning!

Opticon OPR2001 Handheld 1D/2D Barcode Scanner, Wired RS-232, Photo Diode Sensor

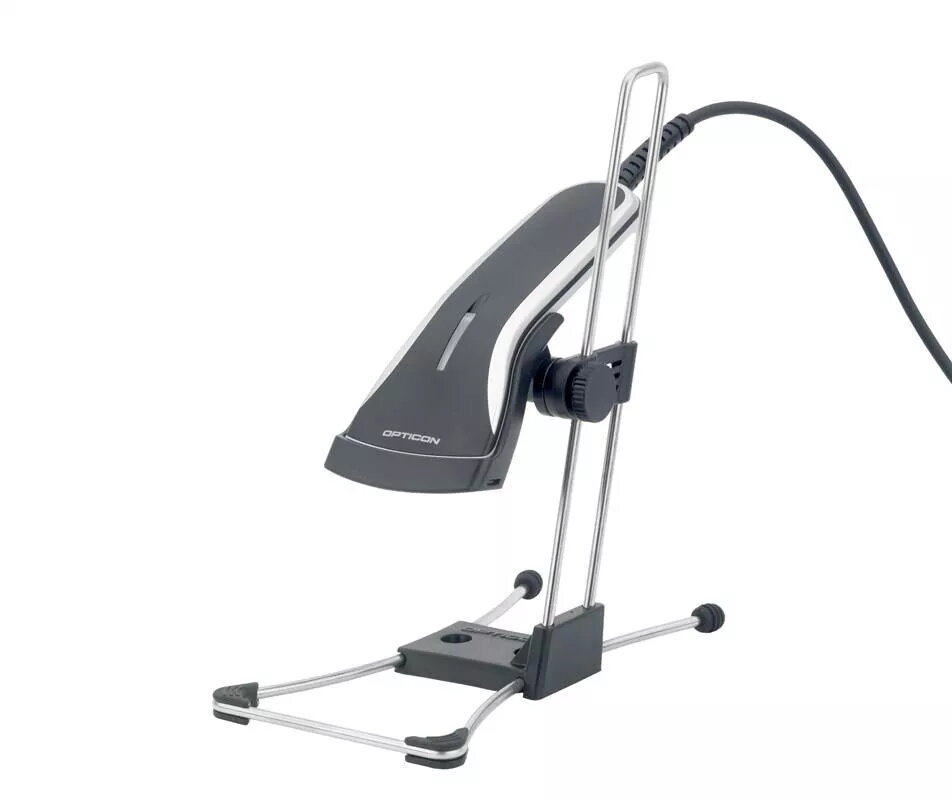

Opticon OPR2001 Handheld 1D/2D Barcode Scanner Photo 1

Opticon OPR2001 Handheld 1D/2D Barcode Scanner Photo 2

Opticon OPR2001 Handheld 1D/2D Barcode Scanner Photo 3

Short description

The Opticon OPR2001 is a compact, handheld 1D/2D barcode scanner featuring a high-performance photo diode sensor. Designed for efficiency, it supports a wide range of symbologies including EAN, UPC, and PDF417 with a scan rate of 100 reads per second. This wired device utilizes an RS-232 interface and is housed in durable ABS synthetics with an IP42 rating, making it a reliable solution for retail and industrial scanning applications.

Warranty: 2 Years

SKU: 1945533

Manufacturer: Opticon

Information regarding the items availability for purchase will be posted on this site

Item cost information will be published on this site

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Opticon OPR2001 is a compact, handheld 1D/2D barcode scanner designed for efficient data capture in retail and industrial environments. Equipped with a high-performance photo diode sensor, this device delivers a scan rate of 100 reads per second, ensuring fast and accurate processing even for barcodes with low contrast. Its lightweight, durable ABS synthetic housing is built to withstand drops of up to 1.5 meters, providing long-term reliability.

Advantages

This scanner offers versatile operation through an integrated auto-trigger mode and a dedicated stand, allowing for convenient hands-free scanning. Its ultra-thin and compact design saves valuable counter space, making it an ideal fit for various office or retail setups. As a plug-and-play device, it integrates seamlessly into existing host computer systems via an RS-232 interface, minimizing setup time and complexity.

Suitable for

Retail point-of-sale systems
Inventory management and tracking
Office document processing
Industrial scanning applications

When it may not be suitable

This device is designed specifically for wired connectivity via an RS-232 interface, so it may not be suitable for environments requiring wireless mobility or USB-only connections. Additionally, while it handles a wide range of 1D and 2D symbologies, it is not intended for high-speed industrial conveyor belt scanning or long-range distance reading.

Key specifications

Scanner type: 1D/2D
Sensor type: Photo diode
Scan rate: 100 reads per second
Connectivity: Wired RS-232
Housing material: ABS synthetics
Weight: 0.06 kg
Supported 1D barcodes: MSI, JAN, GS1-128, EAN-8, EAN-13, Code 39, Code 128, Code 11, Plessey, Trioptic, U.P.C.
Supported 2D barcodes: Composite Codes, MicroPDF417, PDF417

How to use

To begin using the scanner, connect the RS-232 cable to your host computer system. The device functions as a plug-and-play unit, meaning it should be recognized automatically by your system. For hands-free operation, place the scanner into the dedicated stand, which activates the auto-trigger mode. Simply present the barcode within the scanner's field of view to initiate a read.

What to consider before purchase

Ensure your host system supports the RS-232 interface connection.
Verify that the barcode symbologies you use are included in the supported list.
Consider if the wired connection meets your mobility requirements for the workspace.

Usage recommendations

For optimal performance, keep the scanner lens clean and free of dust. When using the hands-free mode, ensure the scanner is positioned securely in the stand to maintain a consistent scanning angle.

Specifications

Scanner type:: 1D/2D
Sensor type:: Photo diode
Read rate (max):: 100 reads/s
Connectivity technology:: Wired
Weight:: 0.06 kg
Linear (1D) barcodes supported:: MSI, JAN, GS1-128 (UCC/EAN-128), EAN-8, EAN-13, Code 39, Code 128, Code 11, Plessey, Trioptic, U.P.C.
2D (matrix & stacked) barcodes supported:: Composite Codes, MicroPDF417, PDF417
Product colour:: Black, Chrome
Housing material:: ABS synthetics

All features

Scanning

Scanner type:: 1D/2D
Sensor type:: Photo diode
Type:: Handheld bar code reader
Read rate (max):: 100 reads/s
Linear (1D) barcodes supported:: MSI, JAN, GS1-128 (UCC/EAN-128), EAN-8, EAN-13, Code 39, Code 128, Code 11, Plessey, Trioptic, U.P.C.
2D (matrix & stacked) barcodes supported:: Composite Codes, MicroPDF417, PDF417
Wavelength:: 650 nm
Decoding standards:: JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISMN-ISSN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey Chinese Post, Korean Postal Authority code Composite codes, MicroPDF417, PDF417
Pitch reading angle:: -35 - 35
Tilt reading angle:: -20 - 20
Light levels (direct sunlight):: 0 - 50000

Ports & interfaces

Connectivity technology:: Wired
Bluetooth:: No
Standard interfaces:: RS-232

Power

Input voltage:: 6
Power consumption:: 150 mA

Technical details

Sustainability certificates:: RoHS

Performance

Product colour:: Black, Chrome
Housing material:: ABS synthetics
Certification:: CE, FCC, VCCI, RoHS, JIS-C-6802 2, IEC 60825-1 2, FDA CDRH II
LED indicators:: Y
International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.: IP42
Buzzer:: Yes
Built-in display:: No

Weight & dimensions

Weight:: 0.06 kg
Height:: 151 mm
Width:: 56 mm
Depth:: 31 mm
Base dimensions (WxDxH):: 100 x 127 x 175
Base weight:: 115 g

Operational conditions

Operating relative humidity (H-H):: 20 - 85
Storage temperature (T-T):: -20 - 60
Operating temperature (T-T):: -5 - 50

Logistics data

Harmonized System (HS) code:: 84716070
