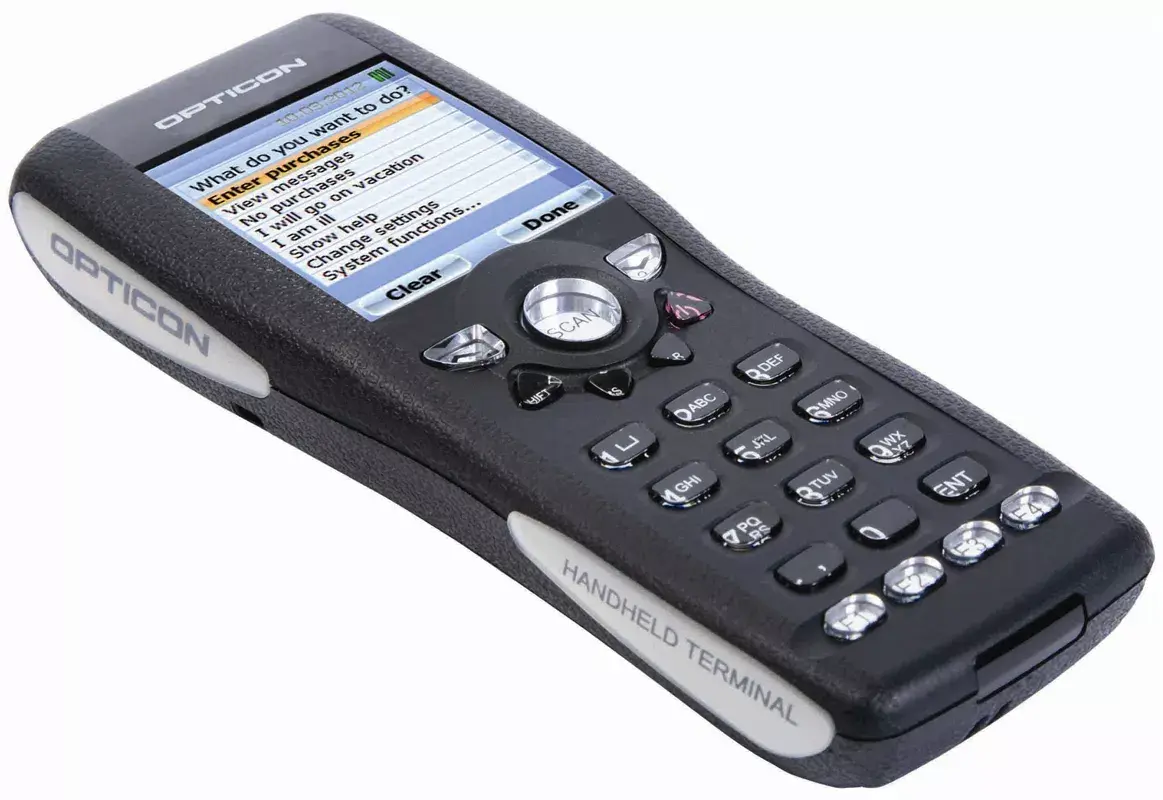

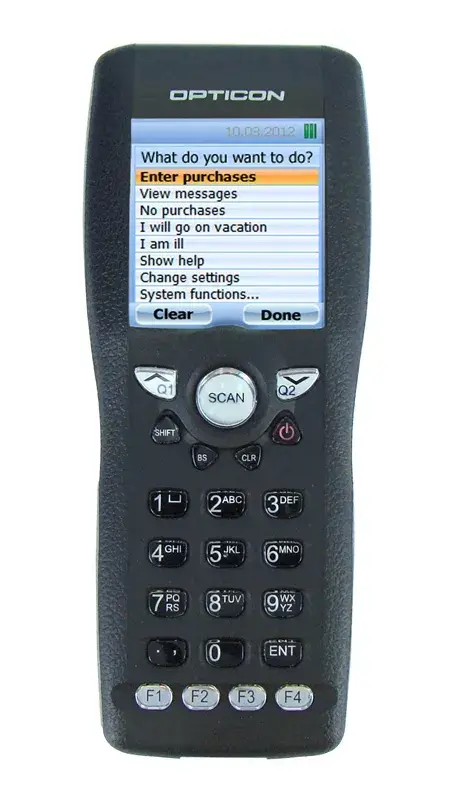

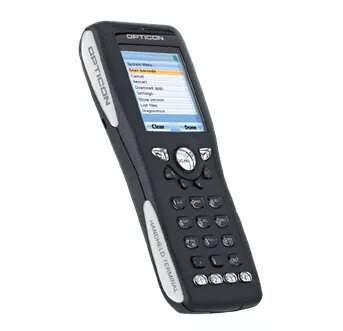

Handheld Mobile Computer Opticon OPH1005
Markdown: Demo
Offer for a legal entity, non-cash payment.
Short description
Cheapest delivery:
Unisend LV
Product information
Description
The Opticon OPH1005 is a compact handheld mobile computer designed for batch barcode capture in light industrial, retail, healthcare and warehousing environments. It features a 2" (5.08 cm) color graphical LCD with 320 × 240 resolution, an alphanumeric keypad for data entry, and onboard memory for temporary storage of scanned records. The device is about the size of a mobile phone, weighs approximately 140 g and provides a portable, easy-to-use solution for capture and later transfer of barcode data.
Advantages
The OPH1005 delivers fast laser scanning performance (up to 100 scans/second) and a robust memory configuration (128 MB NAND flash, 4 MB flashROM, 4 MB SRAM) suitable for reliable batch operations. Its small dimensions and low weight support comfortable prolonged use. The unit includes an adjustable-backlight color display, an IP54 rating against dust and moisture and drop resistance to 1.5 m. A free Opticon SDK is provided for developing custom scanning and integration solutions.
Suitable for
- Batch barcode collection in retail stocktaking
- Light industrial inventory and parts tracking
- Warehouse goods receiving and dispatch
- Healthcare asset and sample tracking
Key specifications
- Scanner type: Portable laser barcode scanner, up to 100 scans/second
- Display: Graphical color LCD, 320 × 240 resolution, 2" (5.08 cm)
- Memory: 128 MB NAND flash; 4 MB flashROM; 4 MB SRAM
- Processor: RX62N
- Dimensions: 55 mm W × 136 mm L × 23 mm D
- Weight: Approximately 140 g

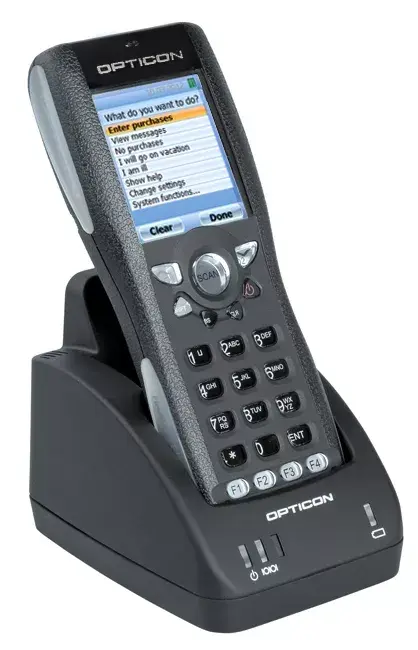

- Data transfer: Batch storage with IrDA transfer via charging cradle (cradle sold separately)
- Durability: Drop resistance up to 1.5 m to concrete
- Ingress protection: IP54 (protection against dust and moisture)
- Keyboard: Alphanumeric layout
- Software: Free Opticon SDK for programmable/custom scanning solutions
How to use
Operate the OPH1005 as a handheld batch scanner by aiming the built-in laser at barcodes and pressing the scan key to record entries into onboard memory. Adjust the LCD backlight for readability in different lighting conditions and use the alphanumeric keypad to add or correct data when required. To transfer collected data, place the unit in the compatible charging cradle and initiate IrDA transfer to a host system. For custom workflows or system integration, use the Opticon SDK to create tailored applications.
Usage recommendations
Handle the device within its specified environmental limits, use the manufacturer-recommended charging cradle for reliable IrDA data transfer, and employ the Opticon SDK when custom integration or advanced processing is needed.
Features
- Battery capacity:
- 1100 mAh
- Weight:
- 0.14 kg
- Built-in camera:
- No
- Flash memory:
- 0.128 GB
- Internal memory:
- 0.004 GB
- Touchscreen:
- No
- Display resolution:
- 320 x 240
- Display diagonal:
- 2 "
- Product colour:
- Black
- Data network:
- Not supported
