Fixed bar code reader Opticon M-11

Name: Fixed bar code reader Opticon 14294
Brand: Opticon
SKU: 11280010
Price: 302.99 EUR
Availability: InStock

JBL – powerful sound always with you

JBL speakers and headphones for pure and deep sound!

Fixed bar code reader Opticon M-11 1D/2D CMOS Wired Black

Fixed bar code reader Opticon M-11 Photo 1

Fixed bar code reader Opticon M-11 Photo 2

Fixed bar code reader Opticon M-11 Photo 3

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The Opticon M-11 is a fixed bar code reader designed for 1D and 2D scanning. It features a CMOS sensor, wired connectivity via RS-232 and USB, and supports BMP and JPEG image formats. With a weight of 220 g and dimensions of 84.4 mm width and 124.4 mm depth, it is compact and easy to integrate into various systems. The device has an IP42 rating for protection against dust and water.

Available at price 302.99 €: 11 pcs.

Total available for order: 23 pcs.

Warranty: 2 Years

SKU: 11280010

Manufacturer: Opticon

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

22.06.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

22.06.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

29.06.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.22 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

29.06.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay

Available for private customers at price 369.49 €: 6 pcs.

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

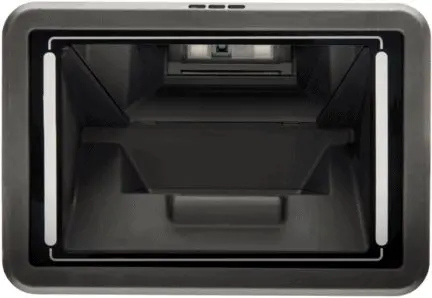

The Opticon M-11 is an omni-directional fixed barcode reader for countertop or built-in installation, suitable for 1D and 2D scanning. It integrates a high-performance 2D CMOS imager and wired connectivity (USB and RS-232). With a compact footprint and IP42 rating, the M-11 can be embedded in ticketing, parking, POS and identity-document scanning solutions where hands-free or presentation scanning is required.

Advantages

The M-11 offers omni-directional presentation scanning so barcodes and tickets can be read from any orientation. It combines a 2D CMOS imager with automatic or manual triggering, supports BMP and JPEG image output and provides reliable operation with an IP42 ingress protection rating and 1.5 m drop resistance on concrete. Wired connectivity ensures stable data transfer for integration into counters or built-in scanners.

Suitable for

Point-of-sale (POS) checkout on counters
Ticketing and parking gate scanners
Mobile marketing and scanning barcodes from smartphones
Passport and ID document scanning in customs, schools or offices
Document handling in banks and post offices

Key specifications

Scanner type: 1D/2D omni-directional presentation scanner
Sensor: 2D CMOS imager
Connectivity: Wired (USB, RS-232)
Image formats: BMP, JPEG
Dimensions (W×D): 84.4 mm × 124.4 mm; Weight: 0.22 kg
Ingress protection: IP42
Drop resistance: 1.5 m to concrete
Supported 1D codes: JAN, UPC, Code 39, Code 128, GS1-128, GS1 DataBar, Interleaved 2 of 5, MSI, etc.
Supported 2D codes: QR Code, Micro QR, Data Matrix, PDF417, MicroPDF417, Aztec, MaxiCode, Codablock, Composite Codes
Colour: Black

How to use

Install the M-11 as a countertop unit or embed it into a built-in housing according to the mounting requirements of your system. Connect the scanner to your host via USB or RS-232 and configure the interface using the supplied configuration manual or programming barcodes. Place the device on the counter for hands-free operation and present barcodes, tickets or ID documents in front of the imager; the omni-directional reader will capture codes automatically or when manually triggered.

Usage recommendations

For reliable scanning, keep the imager window clean and avoid direct intense light on the sensor. Use wired USB or RS-232 connections for stable data transfer in POS and ticketing environments. For embedded passport or ID scanning, ensure the unit is mounted at an appropriate height and angle for clear document placement.

Specifications

Scanner type:: 1D/2D
Sensor type:: CMOS
Connectivity technology:: Wired
Weight:: 0.22 kg
Linear (1D) barcodes supported:: JAN, U.P.C., Trioptic, Telepen, S-Code, Plessey, Matrix 2 of 5, MSI, Interleaved 2 of 5, Industrial 2 of 5, ISSN, ISBN, GS1-128 (UCC/EAN-128), GS1 DataBar, Code 93, IATA, Code 39, Code 128, Code 11, Codabar
2D (matrix & stacked) barcodes supported:: Micro QR Code, MaxiCode, Data Matrix, Composite Codes, Codablock, Aztec Code, MicroPDF417, PDF417, QR Code
Product colour:: Black

All features

Scanning

Scanner type:: 1D/2D
Sensor type:: CMOS
Type:: Fixed bar code reader
Linear (1D) barcodes supported:: JAN, U.P.C., Trioptic, Telepen, S-Code, Plessey, Matrix 2 of 5, MSI, Interleaved 2 of 5, Industrial 2 of 5, ISSN, ISBN, GS1-128 (UCC/EAN-128), GS1 DataBar, Code 93, IATA, Code 39, Code 128, Code 11, Codabar
2D (matrix & stacked) barcodes supported:: Micro QR Code, MaxiCode, Data Matrix, Composite Codes, Codablock, Aztec Code, MicroPDF417, PDF417, QR Code
Yaw reading angle:: -70 - 70
Pitch reading angle:: -60 - 60
Tilt reading angle:: 0 - 360
Optical sensor resolution (W x H):: 1280 x 800

Ports & interfaces

Connectivity technology:: Wired
Cable length:: 2.1 m
Data transfer rate:: 12 Mbit/s
Standard interfaces:: USB, RS-232

Power

Power source type:: RS-232, USB

Technical details

Sustainability compliance:: Yes
Compliance certificates:: RoHS

Performance

Product colour:: Black
LED indicators:: Y
International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.: IP42
Image formats supported:: JPEG, BMP

Weight & dimensions

Weight:: 0.22 kg
Height:: 48 mm
Width:: 84.4 mm
Depth:: 124.4 mm

Operational conditions

Operating relative humidity (H-H):: 10 - 90
Storage temperature (T-T):: -30 - 60
Operating temperature (T-T):: -5 - 45
Storage relative humidity (H-H):: 10 - 90
