Short throw projector Optoma UHZ35ST

Name: Short throw projector Optoma UHZ35ST E9PD7LD11EZ2
Brand: OPTOMA
SKU: 10646054
Price: 1849.49 EUR
Availability: OutOfStock

Aquaphor

Filters you can trust. Pure water every day.

Short throw projector Optoma UHZ35ST 3500 ANSI lumens DLP UHD 4K

Short throw projector Optoma UHZ35ST Photo 1

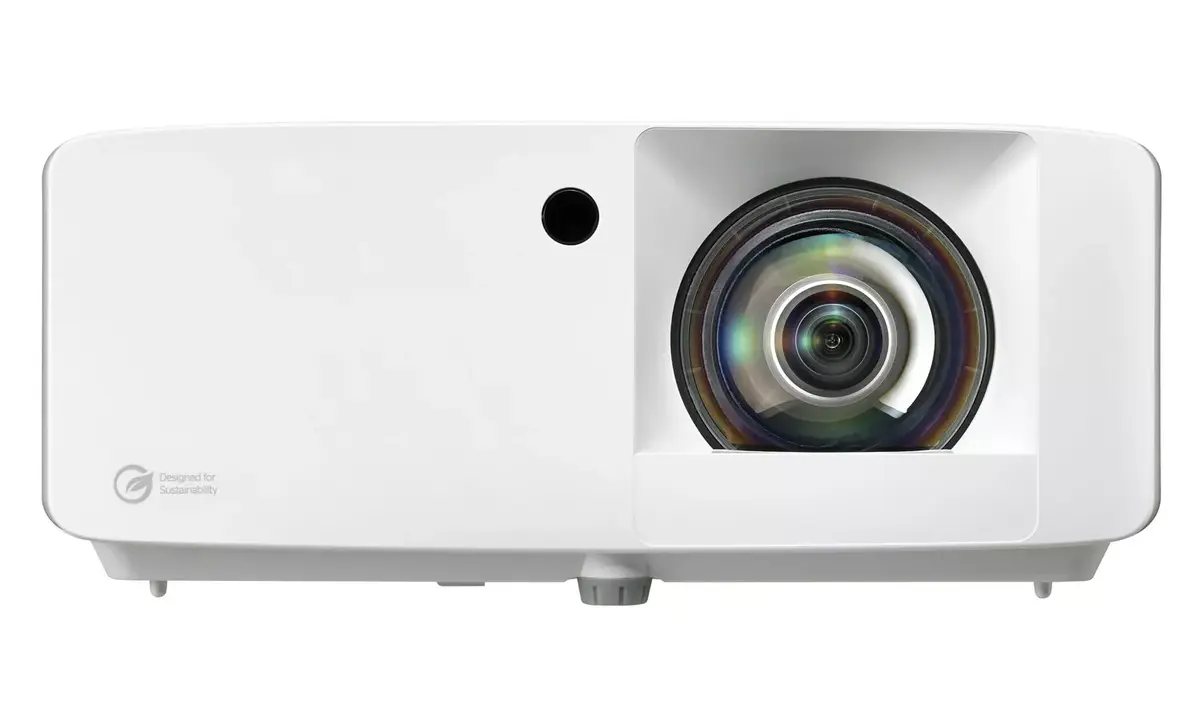

Short throw projector Optoma UHZ35ST Photo 2

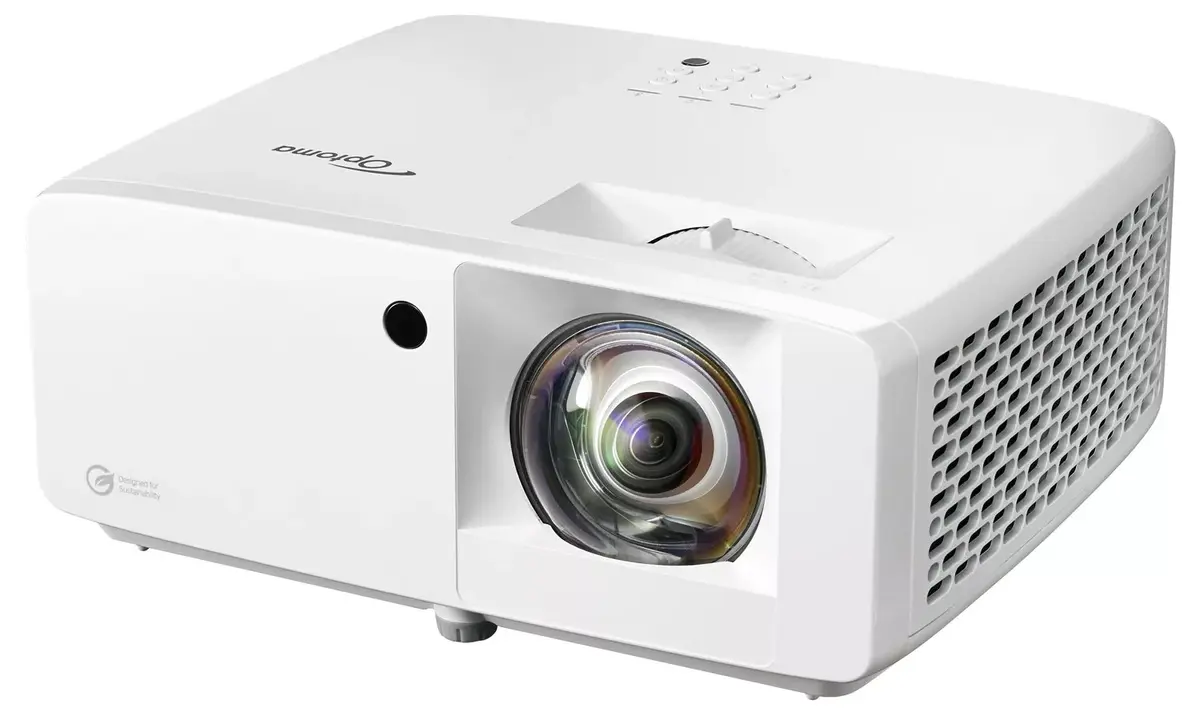

Short throw projector Optoma UHZ35ST Photo 3

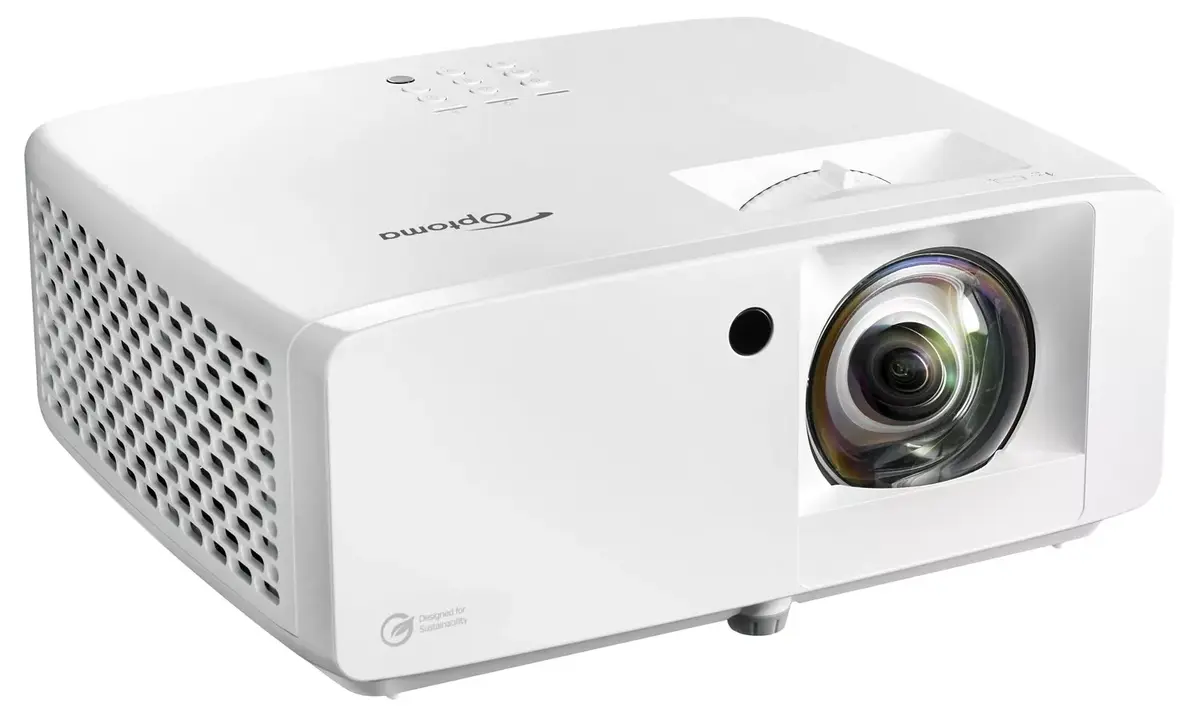

Short throw projector Optoma UHZ35ST Photo 4

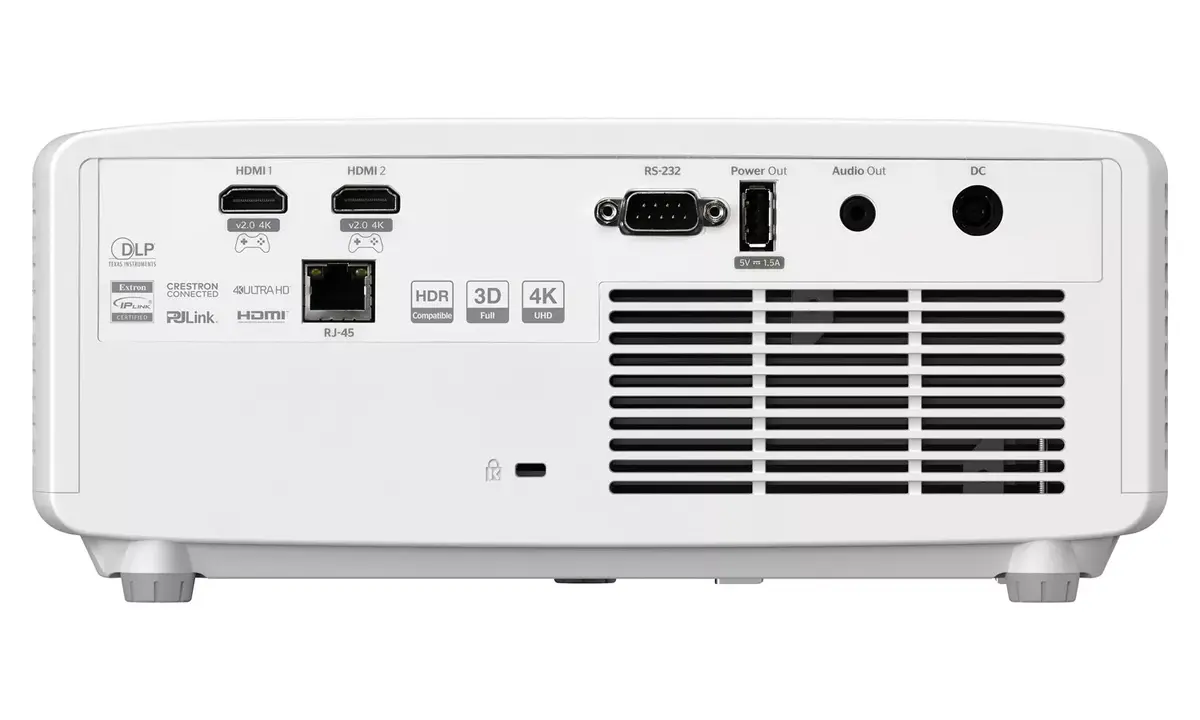

Short throw projector Optoma UHZ35ST Photo 5

Short throw projector Optoma UHZ35ST Photo 6

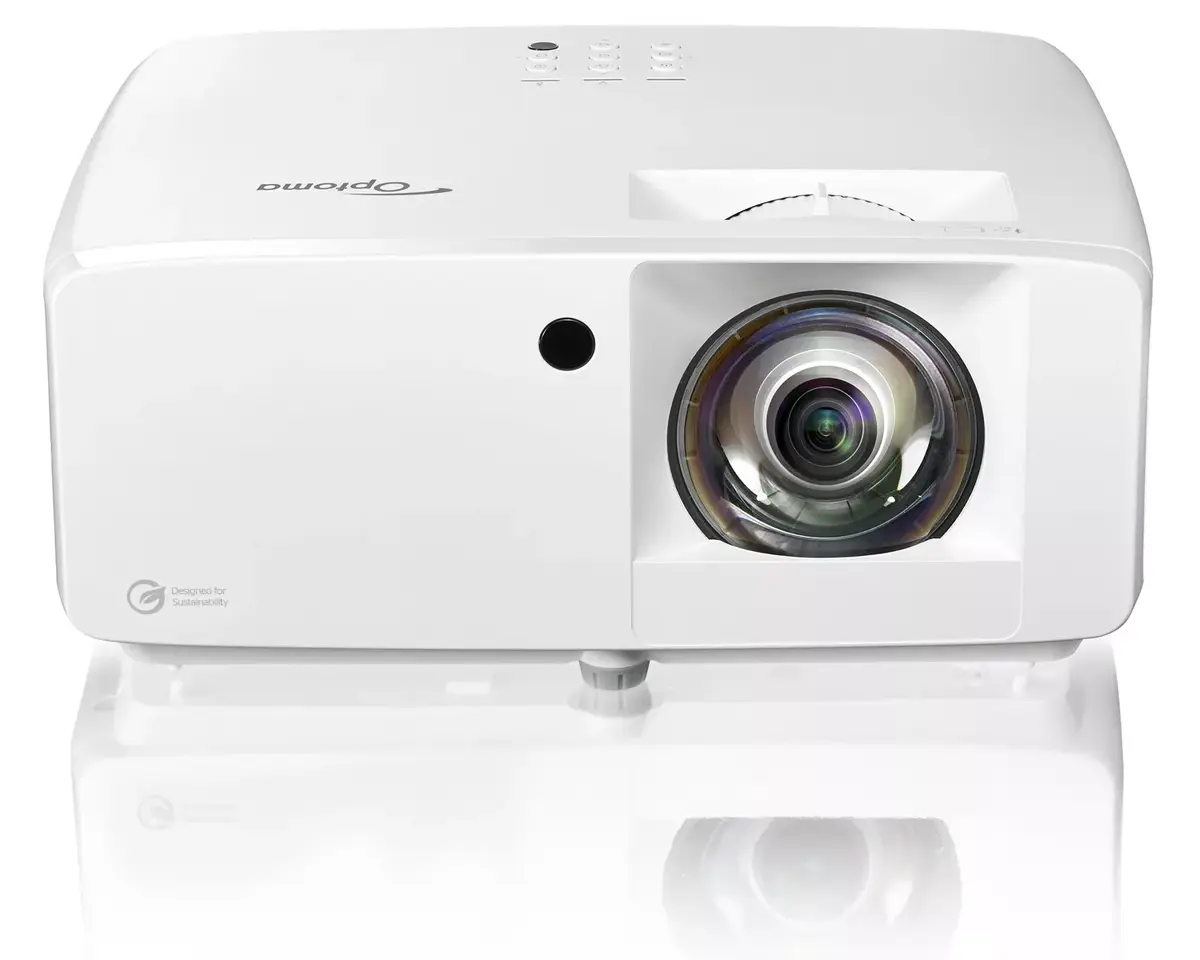

Short throw projector Optoma UHZ35ST Photo 7

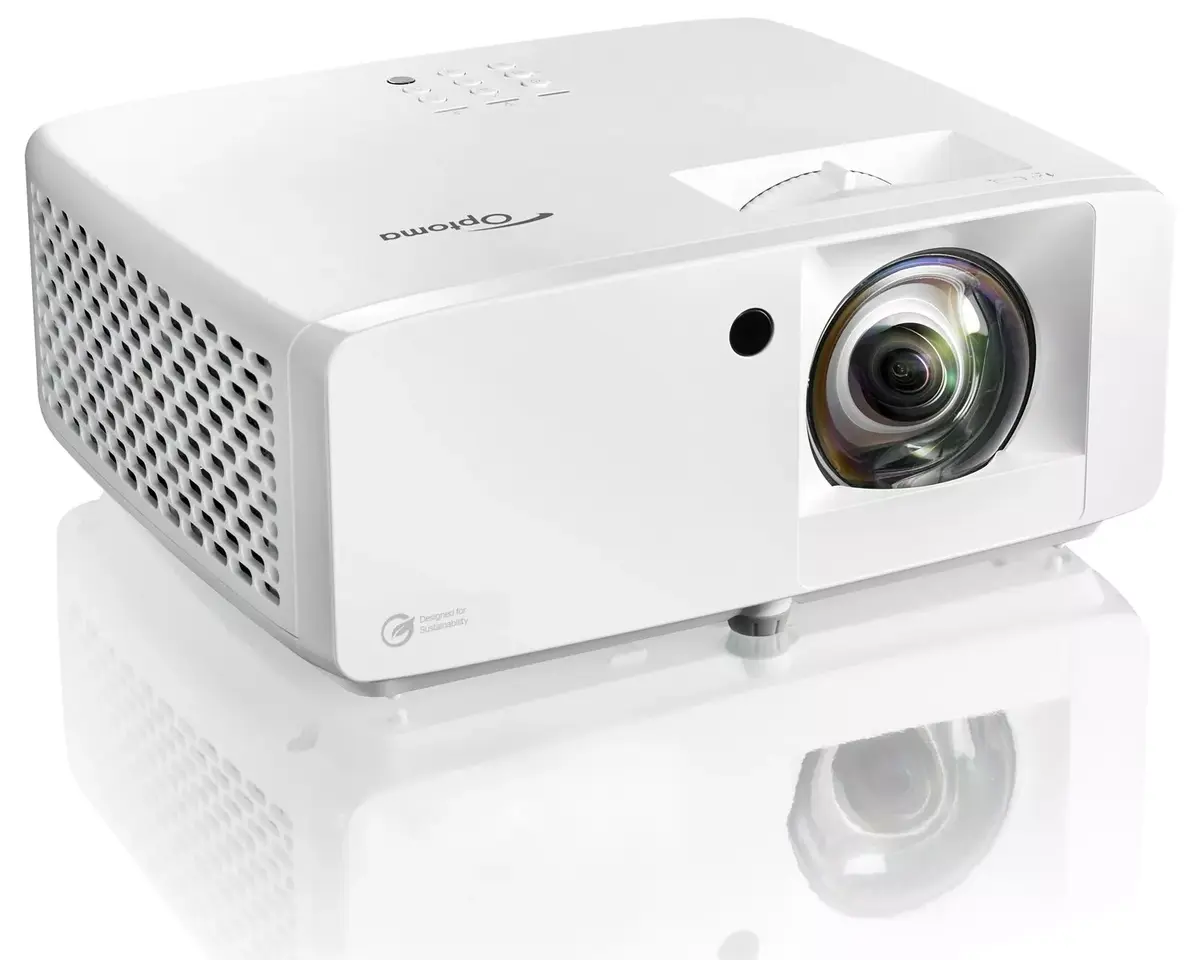

Short throw projector Optoma UHZ35ST Photo 8

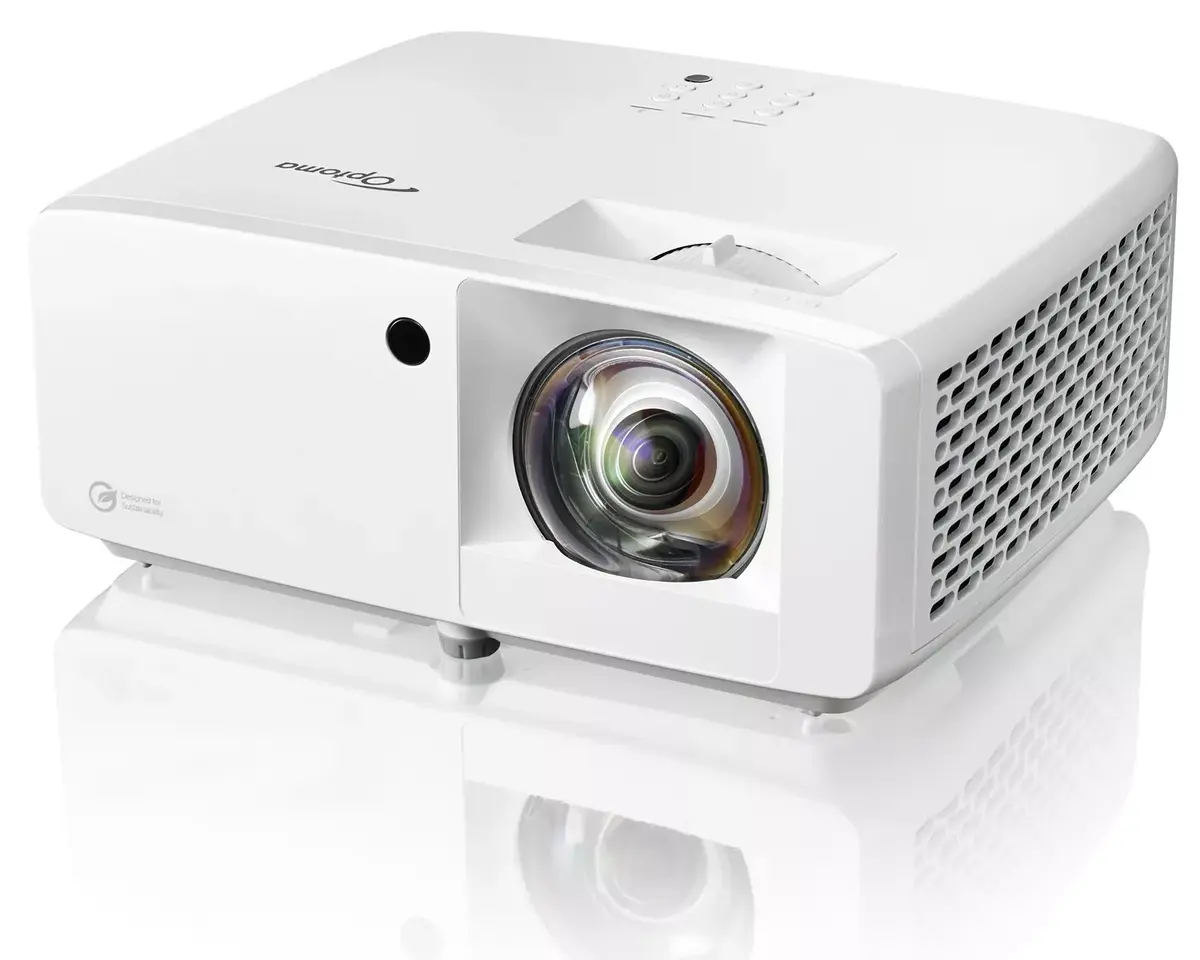

Short throw projector Optoma UHZ35ST Photo 9

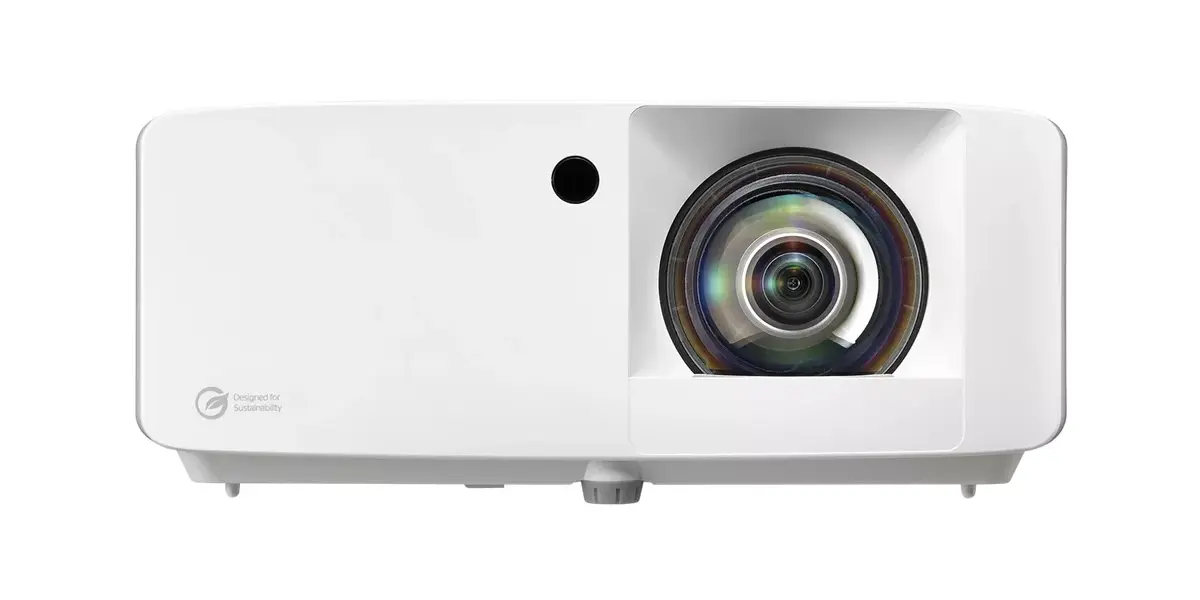

Short throw projector Optoma UHZ35ST Photo 10

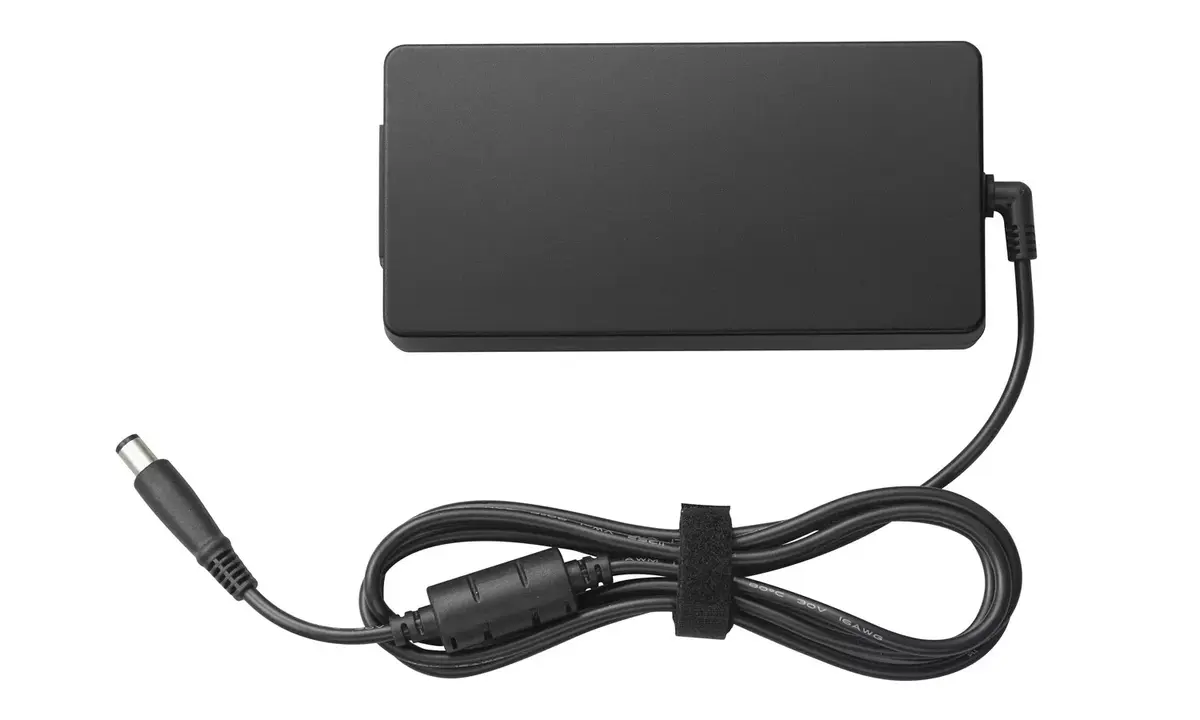

Short throw projector Optoma UHZ35ST Photo 11

Short throw projector Optoma UHZ35ST Photo 12

Short throw projector Optoma UHZ35ST Photo 13

Short description

The Optoma UHZ35ST is a short throw projector featuring 3500 ANSI lumens brightness, DLP technology, and UHD 4K resolution. It has a laser light source with a lifespan of 30000 hours, a fixed focal length of 7.51 mm, and a throw ratio of 0.496:1. Ideal for home theater setups, it supports various video modes and resolutions, ensuring high-quality image projection.

Warranty: 2 Years

SKU: 10646054

Information regarding the items availability for purchase will be posted on this site

Item cost information will be published on this site

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Optoma UHZ35ST is a compact short-throw 4K UHD DLP projector delivering 3500 ANSI lumens of brightness and a laser light source rated for up to 30,000 hours. Designed for home entertainment and small venue use, the projector combines true 4K resolution, HDR/HLG compatibility and a short throw ratio (0.496:1) that enables a large image from a short distance. Its fixed 7.51 mm focal length, lightweight 3 kg white chassis and external power supply support flexible placement and easier maintenance.

Advantages

The UHZ35ST offers high brightness suitable for viewing with ambient light, accurate Rec.709 colour reproduction and a low-maintenance DuraCore laser engine that reduces power consumption versus lamp-based models. The compact housing uses Post-Consumer Recycled (PCR) plastics and recyclable packaging, and the short-throw lens reduces shadows by allowing placement close to the screen. It also includes dual HDMI inputs, integrated speaker, multiple control protocols (RS232, AMX, Crestron RoomView, Extron IPLink) and 360° projection capability.

Suitable for

Home theatre rooms and living rooms where space is limited
Sports and TV viewing in ambient light
Gaming with low input lag and enhanced game mode
Small meeting rooms or classrooms requiring easy installation

Key specifications

Brightness: 3500 ANSI lumens
Projection technology: DLP
Resolution: True 4K UHD (8.3 million pixels)
Light source: Laser, up to 30,000 hours
Throw ratio: 0.496:1 (short throw)
Focal length: 7.51 mm (fixed)
Native aspect ratio: 16:9
Screen size compatibility: 914.4 mm – 7620 mm
Weight: 3 kg
Colour: White

How to use

Place the projector close to the projection surface according to the short throw ratio to obtain the desired image size (for example, a 100" image from just over a metre). Connect source devices via HDMI, enable HDR/HLG if available, or select Game mode for reduced input lag. Use the built-in speaker for basic audio or connect external audio if required. Configure control or monitoring through RS232, AMX, Crestron RoomView or Extron IPLink as needed. For 360° installations, mount or position the projector in the required orientation.

Usage recommendations

For best image quality, calibrate the projector using the Colour Management System to match your viewing environment, keep vents clear for adequate ventilation, and use the energy-saving laser modes to extend lifespan and reduce power consumption. When placing the projector close to the screen, ensure there is enough space for cooling and cable connections.

Specifications

Projector brightness:: 3500 ANSI lumens
Weight:: 3 kg
Projection technology:: DLP
Native aspect ratio:: 16:9
Screen size compatibility:: 914.4 - 7620
Product colour:: White

All features

Projector

Contrast ratio (typical):: 500000:1
Horizontal scan range:: 15 - 140
Vertical scan range:: 24 - 120
Projection distance:: 0.4 - 3.3
Projection technology:: DLP
Projector brightness:: 3500 ANSI lumens
Uniformity:: 75 %
Screen size compatibility:: 914.4 - 7620
Keystone correction, vertical:: -15 - 15
Keystone correction, horizontal:: -15 - 15
Native aspect ratio:: 16:9
Supported aspect ratios:: 4:3, 16:10, 16:9
Number of colours:: 1.073 billion colours

Light source

Light source type:: Laser
Service life of light source:: 30000 h

Lens system

Zoom capability:: Yes
Offset:: 116 %
Throw ratio:: 0.496:1
Fixed focal length:: 7.51 mm
Zoom type:: Fixed

Ports & interfaces

Serial interface type:: RJ-45, RS-232
USB 2.0 ports quantity:: 1
VGA (D-Sub) ports quantity:: 0
Composite video in:: 0
Audio (L/R) in:: 0
Audio (L/R) out:: 1
Component video (YPbPr/YCbCr) in:: 0
HDMI ports quantity:: 2
HDMI version:: 2.0
USB 2.0 Type-A ports quantity:: 1

Features

Noise level: Not only energy saving helps to protect the environment but also noise level reduction. Noise level reduction up to 3 dB really means noise level reduction in 2 times. For example, a device with noise level 39 dB (А) will be two times quieter than a devise with a noise level 42 dB (А). Energy-saving certificate that shows noise level plays the role of an additional objective indicator basing on which You can successfully choose a product.: 35 dB
On Screen Display (OSD):: Yes
On Screen Display (OSD) languages:: ARA, CHI (SIMPL), CHI (TR), CZE, DAN, DEU, DUT, ENG, ESP, FRE, GRE, ITA, JPN, KOR, NOR, POL, POR, RUM, SWE, TUR, VIE
Number of OSD languages:: 25
Noise level (economic mode):: 28 dB
International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.: IP6X
Password protection:: Yes

Multimedia

Number of built-in speakers:: 1
RMS rated power:: 15 W
Built-in speaker(s):: Yes

Power

Power source:: AC
Power consumption (standby):: 0.5 W
Power consumption (economy mode):: 126 W
AC input frequency:: 50/60
AC input voltage:: 100 - 240
Power consumption (max):: 185 W

Weight & dimensions

Weight:: 3 kg
Package weight:: 4200 g
Height:: 114 mm
Width:: 274 mm
Depth:: 216 mm
Package depth:: 400 mm
Package height:: 168 mm
Package width:: 340 mm

Logistics data

Quantity per pack:: 1 pc(s)

Video

Analog signal format system:: NTSC 3.58, NTSC 4.43, NTSC J, NTSC M, PAL 4.43, PAL B, PAL D, PAL G, PAL H, PAL I, PAL M, PAL N, SECAM 4.25/4.4, SECAM B, SECAM D, SECAM G, SECAM K, SECAM K1, SECAM L
Full HD:: Yes
Supported graphics resolutions:: 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1360 x 768 (WXGA), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080)
Supported video modes:: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
3D:: Yes

Design

Cable lock slot:: Yes
Product colour:: White
Market positioning:: Home cinema
Product type:: Short throw projector
Cable lock slot type:: Kensington

Display

Built-in display:: No

Packaging content

AC adapter included:: Yes
Remote control included:: Yes
Cables included:: AC
Remote control type:: IR
Manual:: Yes
Batteries included:: Yes

Operational conditions

Operating altitude:: 0 - 2500
Operating relative humidity (H-H):: 0 - 80
Operating temperature (T-T):: 0 - 40
