OPTOMA ZH520 projector 5500 ANSI 1080p

Name: Projector OPTOMA ZH520 — 5500 E9PD7M201EZ1
Brand: OPTOMA
SKU: 10646055
Price: 1690.49 EUR
Availability: OutOfStock

Shop for gifts early

Save time and money with our discounts!

Projector OPTOMA ZH520 — 5500 ANSI lumens, DLP, 1080p, 16:9, manual 1.3:1 zoom, white, 3.4 kg

OPTOMA ZH520 projector 5500 ANSI 1080p Photo 1

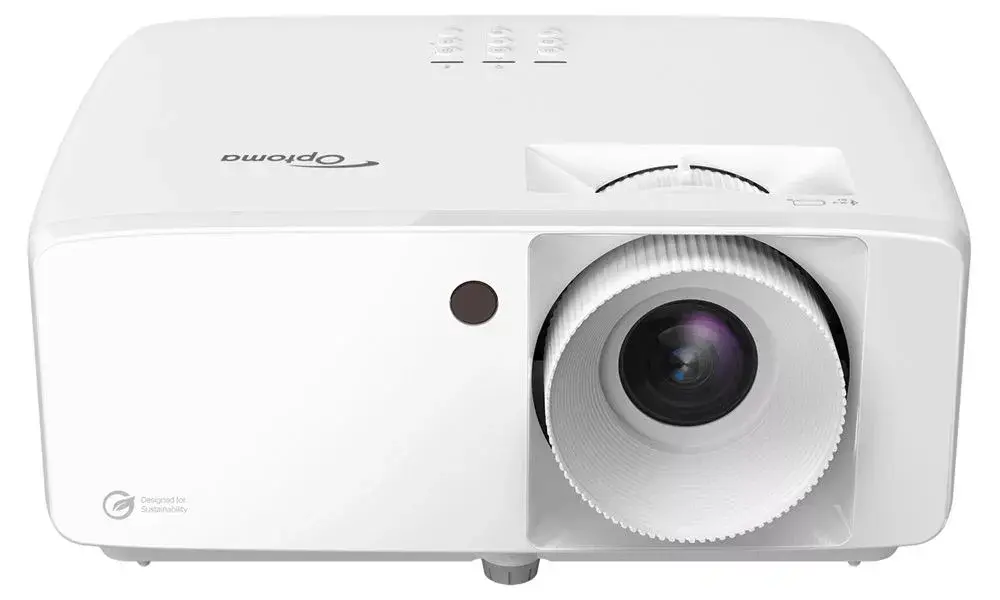

OPTOMA ZH520 projector 5500 ANSI 1080p Photo 2

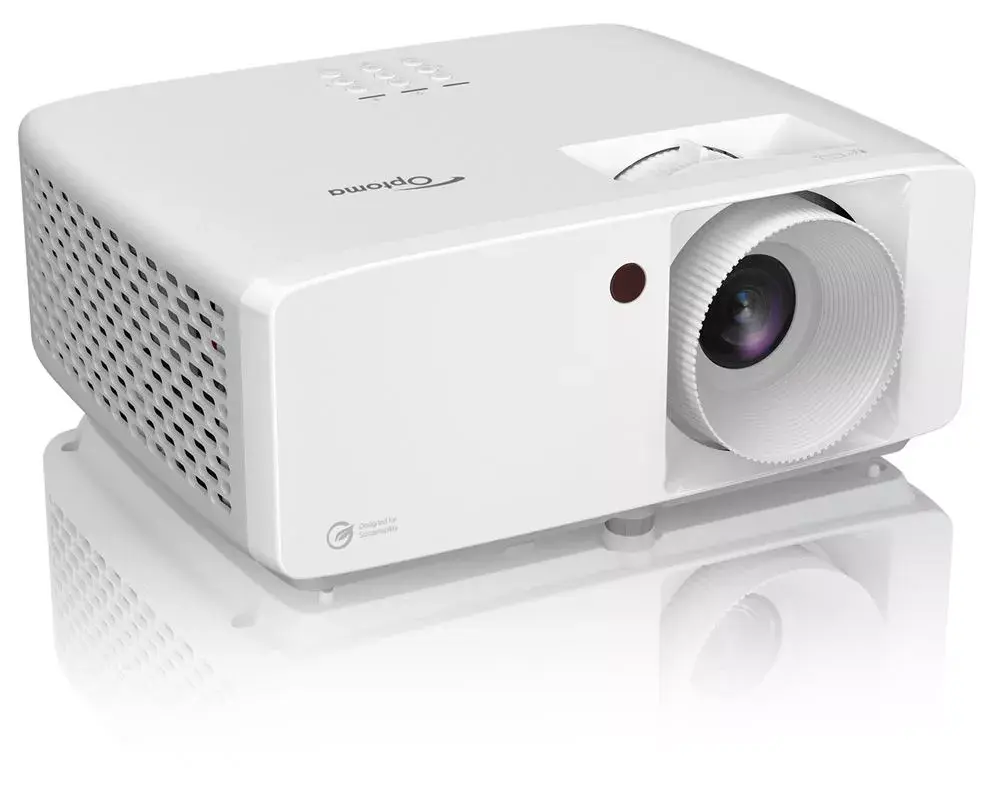

OPTOMA ZH520 projector 5500 ANSI 1080p Photo 3

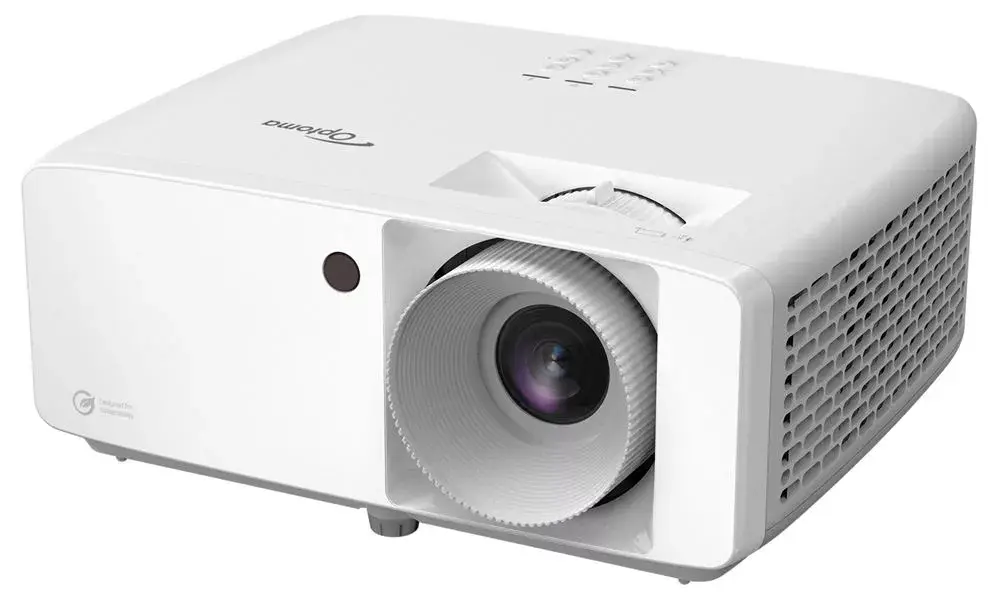

OPTOMA ZH520 projector 5500 ANSI 1080p Photo 4

OPTOMA ZH520 projector 5500 ANSI 1080p Photo 5

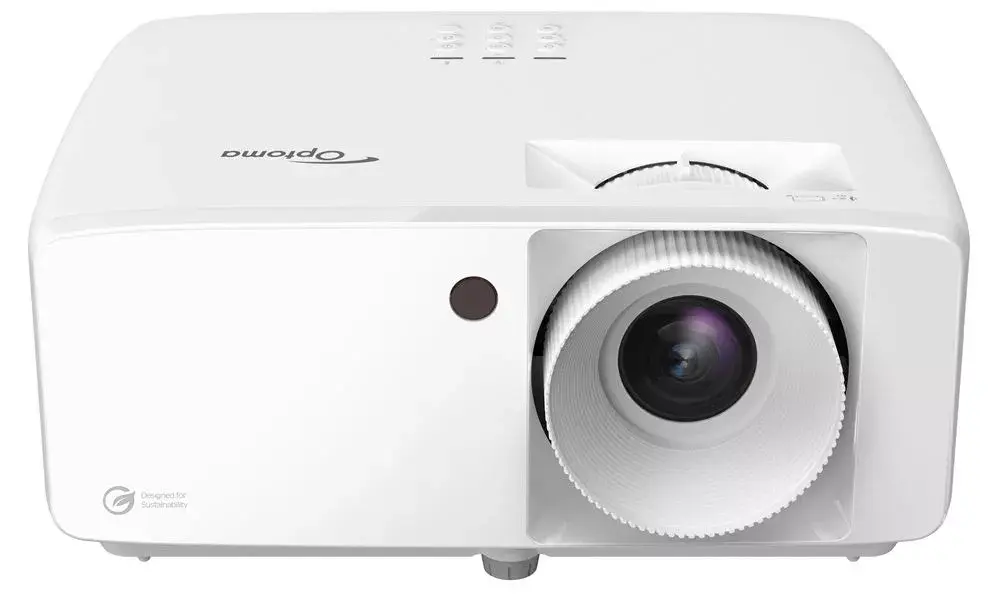

OPTOMA ZH520 projector 5500 ANSI 1080p Photo 6

OPTOMA ZH520 projector 5500 ANSI 1080p Photo 7

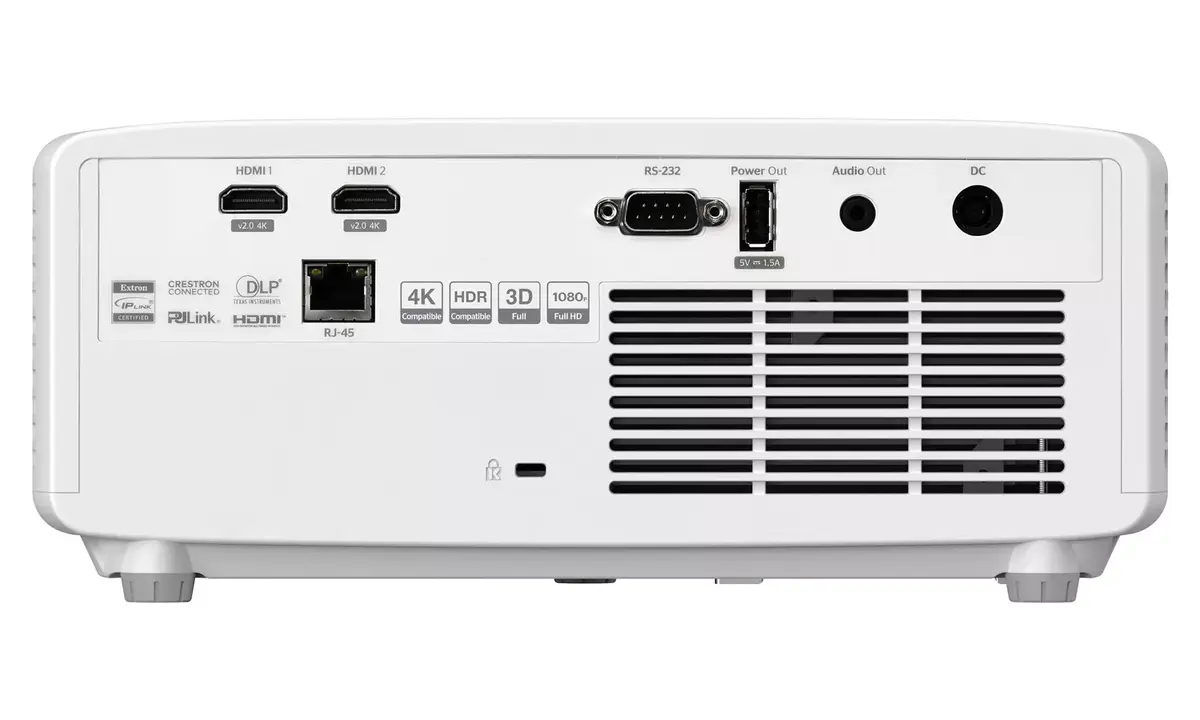

OPTOMA ZH520 projector 5500 ANSI 1080p Photo 8

Short description

Optoma ZH520 is a DLP projector with 5500 ANSI lumens brightness and native 1080p (1920×1080) resolution, suitable for presentations and home theater use. It features a laser light source rated for 30,000 hours, manual 1.3:1 zoom, 16:9 aspect ratio and weighs 3.4 kg. Supports various 3D formats and delivers vivid colors and stable image quality for large-screen viewing.

Warranty: 2 Years

SKU: 10646055

Information regarding the items availability for purchase will be posted on this site

Item cost information will be published on this site

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Optoma ZH520 is a DLP laser projector with a native Full HD (1920x1080) resolution and a rated brightness of 5500 ANSI lumens. It offers a long light-source lifespan and flexible installation options thanks to a manual zoom and wide throw ratio range. The projector includes built-in audio and multiple wired connections for AV and control.

Advantages

The laser light source provides up to 30,000 hours of operation and stable brightness over time. High contrast and a native 1080p resolution ensure detailed images, while 5500 ANSI lumens of brightness make it suitable for environments with ambient light. IP6X dust protection increases reliability in demanding installations. Integrated speakers and a variety of inputs (HDMI, USB-A, audio jack, Ethernet, RS-232) simplify setup and connectivity.

Suitable for

Corporate and classroom presentations
Conference rooms and lecture halls
Home cinema in medium to large rooms
Fixed installations in public spaces and houses of worship

Key specifications

Projection technology: DLP
Light source: Laser
Brightness: 5500 ANSI lumens
Native resolution: Full HD 1920 × 1080
Native aspect ratios: 4:3, 16:9, 16:10
Contrast ratio (typical): 3,000,000:1
Throw ratio: 1.12:1 – 1.47:1
Manual zoom ratio: 1.3:1 (as stated in product summary)
Focal length: 16.90 – 21.61 mm
Keystone correction: ±30° vertical and horizontal
Noise level: 29–31 dB
Speaker output: 15 W
Lamp / light-source life: 30,000 hours
Power consumption: 128–205 W (operating), 0.5 W (standby)
Dimensions (W × D × H): 274 × 216 × 108 mm
Weight: 4,600 g
Ingress protection: IP6X
Connections: HDMI, Audio (3.5 mm), USB-A, Ethernet (RJ-45), Serial (RS-232)

How to use

Place the projector on a stable surface or mount it according to the throw distance calculated from the throw ratio. Connect a video source via HDMI or USB-A and, if required, connect network or control cables to the Ethernet and RS-232 ports. Adjust image size and focus using the manual zoom and focal adjustment, then apply vertical and horizontal keystone correction up to 30° to align the image. Use the onboard menu to select native 1080p resolution and configure display settings for the room lighting conditions.

Usage recommendations

For best image uniformity and longevity, install the projector in a well-ventilated location protected from direct dust and moisture. Use the laser mode and brightness settings appropriate to ambient light—higher brightness for rooms with more ambient light and lower brightness to reduce noise and power consumption in dark viewing environments.

Specifications

Projector brightness:: 5500 ANSI lumens
Weight:: 3.4 kg
Projection technology:: DLP
Projector native resolution:: 1080p (1920x1080)
Native aspect ratio:: 16:9
Product colour:: White

All features

Projector

Contrast ratio (typical):: 3000000:1
Projection distance:: 1 - 8
Projection technology:: DLP
Projector brightness:: 5500 ANSI lumens
Uniformity:: 75 %
Keystone correction, vertical:: -30 - 30
Keystone correction, horizontal:: -30 - 30
Native aspect ratio:: 16:9
Supported aspect ratios:: 4:3, 16:10, 16:9
Projector native resolution:: 1080p (1920x1080)

Light source

Light source type:: Laser
Service life of light source:: 30000 h

Lens system

Focal length range:: 16.9 - 21.61
Offset:: 116 %
Throw ratio:: 1.13:1 ~ 1.47:1
Zoom ratio:: 1.3:1
Zoom type:: Manual

Ports & interfaces

Serial interface type:: RS-232
USB 2.0 ports quantity:: 1
Headphone outputs:: 1
DVI port:: No
VGA (D-Sub) ports quantity:: 0
Composite video in:: 0
Audio (L/R) in:: 0
Component video (YPbPr/YCbCr) in:: 0
HDMI ports quantity:: 2
HDMI version:: 2.0
USB 2.0 Type-A ports quantity:: 1

Network

Ethernet LAN:: Yes
Ethernet LAN (RJ-45) ports:: 1

Features

Noise level: Not only energy saving helps to protect the environment but also noise level reduction. Noise level reduction up to 3 dB really means noise level reduction in 2 times. For example, a device with noise level 39 dB (А) will be two times quieter than a devise with a noise level 42 dB (А). Energy-saving certificate that shows noise level plays the role of an additional objective indicator basing on which You can successfully choose a product.: 29 dB
On Screen Display (OSD):: Yes
On Screen Display (OSD) languages:: ARA, CHI (SIMPL), CHI (TR), CZE, DAN, DEU, DUT, ENG, ESP, FAS, FIN, FRE, GRE, HUN, IND, ITA, JPN, NOR, POL, POR, RUM, RUS, SWE, TUR, VIE
Number of OSD languages:: 25
International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.: IP6X
Password protection:: Yes

Multimedia

Number of built-in speakers:: 1
RMS rated power:: 15 W
Built-in speaker(s):: Yes

Power

Power consumption (typical): Power consumption in switched-on state expressed in W.: 128 W
Power source:: AC
Power consumption (standby):: 0.5 W
Auto power off:: Yes
AC input frequency:: 50 - 60
AC input voltage:: 100 - 240
Power consumption (max):: 205 W

Weight & dimensions

Weight:: 3.4 kg
Package weight:: 4600 g
Height:: 108 mm
Width:: 274 mm
Depth:: 216 mm

Logistics data

Quantity per pack:: 1 pc(s)

Video

Analog signal format system:: NTSC, PAL, SECAM
Full HD:: Yes
Supported graphics resolutions:: 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080)
Supported video modes:: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
3D:: Yes
Supported 3D formats:: Frame Sequential

Storage

Card reader integrated:: No

Design

Cable lock slot:: Yes
Product colour:: White
Housing material:: Plastic
Market positioning:: Portable
Cable lock slot type:: Kensington

Display

Built-in display:: No

Packaging content

Remote control included:: Yes
Cables included:: AC
Manual:: Yes
Batteries included:: Yes

Operational conditions

Operating altitude:: 0 - 2500
Operating relative humidity (H-H):: 0 - 80
Operating temperature (T-T):: 0 - 40
