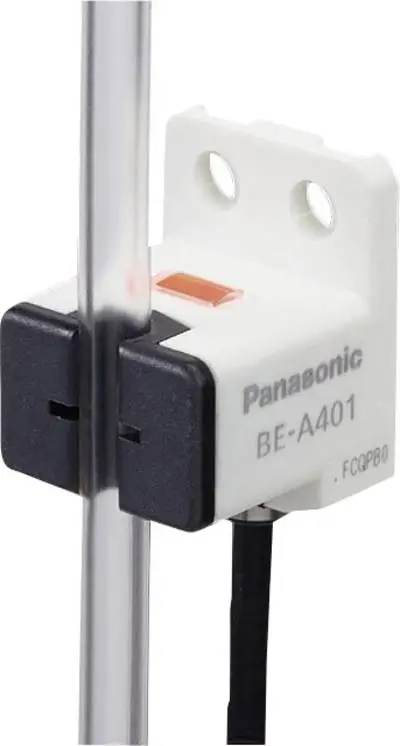

Flow Sensor Panasonic BE-A401P, Operating Voltage 5–24 V DC, Single Unit

Panasonic BE-A401P is a compact flow sensor supplied as a single unit, designed for monitoring liquid flow in control systems, automation and instrumentation. The sensor accepts an operating voltage in the range of 5–24 V DC and provides a simple electrical interface for integration into PLCs, controllers and custom electronic circuits. Its small form factor and straightforward supply requirements make it suitable for space-constrained installations and retrofit projects where reliable flow detection is required.

Advantages

The flow sensor offers a wide operating voltage range (5–24 V DC) that simplifies compatibility with different power supplies and control equipment. Its compact single-unit design enables easy mechanical installation and electrical wiring, reducing setup time. The device is intended for reliable detection of fluid movement and straightforward integration into existing automation or monitoring systems without the need for complex conditioning electronics.

Suitable for

• Integration into industrial and laboratory control systems for flow monitoring
• Automation projects requiring a compact, low-voltage flow detection element
• Retrofit installations where space is limited and simple electrical interfacing is preferred
• Instrumentation applications that need a discrete flow sensing input to PLCs or controllers

When it may not be suitable

This sensor is designed for general flow detection and basic monitoring; it may not be suitable where highly precise flow metering, calibrated volumetric measurement, or extreme environmental protection is required. Applications that demand integrated signal conditioning, advanced diagnostics, or high-accuracy flow rate measurement should consider specialized flow meters or sensors with the necessary performance specifications.

Key specifications

• Operating voltage: 5–24 V DC
• Form factor: compact, single-unit sensor
• Primary function: detection/monitoring of fluid flow
• Electrical interface: designed for direct integration with control electronics
• Application environment: suitable for control, automation and instrumentation systems

How to use

Install the Panasonic BE-A401P in the fluid line according to the mounting orientation recommended by the system designer or installation guide. Connect the sensor to a compatible DC supply within the 5–24 V range and wire the output to the monitoring or control input on the PLC, controller or data acquisition device. Verify correct operation by observing the sensor output during known flow conditions and adjust system logic or thresholds in the control equipment as required. Follow standard safety and wiring practices during installation and commissioning.

What to consider before purchase

• Confirm that a detection-type flow sensor meets your accuracy and measurement requirements rather than a precise flow meter
• Ensure the available supply voltage in your system falls within the 5–24 V DC range
• Check mechanical compatibility and mounting space within your piping or assembly
• Verify that the sensor’s electrical output and signal type are compatible with your control or monitoring equipment

Usage recommendations

Use the sensor within the specified voltage range and protect wiring from moisture and mechanical stress. For reliable long-term performance, install appropriate filtration or strain relief if the fluid contains particulates, and perform functional checks after installation and periodically during operation.
