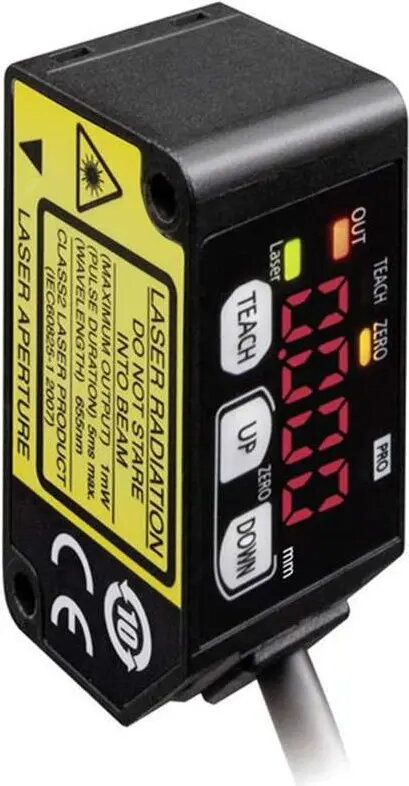

Laser distance sensor Panasonic HG-C1100-P, measurement range 100 mm, 24 V DC

The Panasonic Laser Distance Sensor HG-C1100-P is a compact optical laser measurement sensor designed for precise distance and thickness measurements within a 100 mm range. It features a fast response time of up to 1.5 ms, a four-digit LED display for direct readout, and configurable digital and analog outputs (0–5 V). The sensor is housed in a durable die-cast aluminum case and operates from a 24 V DC supply, providing stable performance in industrial inspection and in-line quality control applications.

Advantages

The HG-C1100-P offers high measurement resolution (≈70 µm) and selectable light/dark sensing modes, with teachable settings via three function keys for easy configuration. A digital input allows zero-point adjustment, laser on/off control or trigger functions, and the device includes a key lock to prevent accidental changes. Short-circuit protection is integrated to enhance reliability in factory environments.

Suitable for

• Part dimension measurement
• Distance and gap monitoring
• Thickness measurement of thin materials
• Planarity and flatness inspection
• In-line process and quality control
• Test and measurement stations

When it may not be suitable

This sensor is intended for short-range measurements up to 100 mm; it is not suitable for long-distance sensing or applications requiring ranges beyond its specified measurement span. It is optimized for industrial environments within the specified operating temperature range and may not perform reliably outside −10 °C to +45 °C.

Key specifications

• Measurement range: 100 mm
• Resolution: 70 µm
• Response time: up to 1.5 ms
• Output signals: digital and analog (0–5 V)
• Supply voltage: 24 V DC
• Housing material: die-cast aluminum
• Display: 4-digit LED
• Operating temperature: −10 °C to +45 °C
• Dimensions (W×H×L): 20 × 25 × 44 mm

How to use

Mount the sensor securely so the laser beam is perpendicular to the target surface for best accuracy. Power the device with a regulated 24 V DC supply and connect the analog and digital outputs to your control system as required. Use the three function keys and the teach function to configure sensing mode (light/dark), set thresholds or perform zero-point adjustment via the digital input. Read measured values directly from the four-digit LED display and enable key lock to prevent unintentional changes.

What to consider before purchase

• Required measurement range (sensor is limited to 100 mm)
• Operating temperature requirements (−10 °C to +45 °C)
• Compatibility with 24 V DC systems and required output type (analog 0–5 V, digital)
• Physical mounting space for the compact 20 × 25 × 44 mm housing
• Need for teach/trigger functions and digital input features

Usage recommendations

For reliable, repeatable measurements position the sensor to minimize angular deviation and ensure the target surface has reflective properties suitable for optical laser sensing. Use the teach function to set detection thresholds on representative samples and enable the key lock after configuration to avoid accidental reprogramming.
