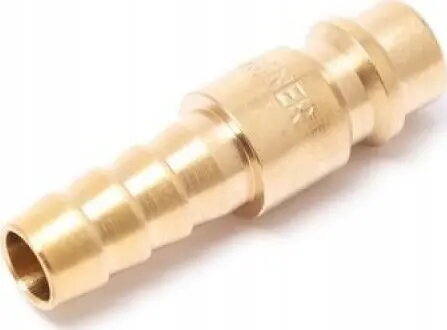

Pneumatic Hose Barb Fitting PARTNER PA-MH08/06, external thread 1/2", hose barb 10 mm

Pneumatic Hose Barb Fitting PARTNER PA-MH08/06 combines a 1/2" external threaded connection with a 10 mm jodełka-style hose barb to provide a secure interface between flexible pneumatic tubing and threaded components. The fitting is intended for air and low-pressure pneumatic systems where hose-to-thread transitions are required. Its design permits push-on or clamp-secured attachment of hoses and is suitable for workshop, industrial maintenance, and pneumatic assembly tasks.

Advantages

The fitting offers a compact transition from a 1/2" threaded port to a 10 mm hose, enabling quick integration into existing pneumatic lines without the need for soldering or complex adapters. The jodełka (barbed) profile improves hose retention when used with clamps, while the external thread provides a standard mechanical connection to valves, ports or other threaded pneumatic components. The component is suitable for repeated assembly and disassembly and supports reliable airflow in low-pressure applications.

Suitable for

• Connecting flexible pneumatic hoses to 1/2" threaded valves and fittings
• Workshop and maintenance air lines
• Low-pressure pneumatic systems and distribution manifolds
• Temporary or permanent hose installations using clamps

Key specifications

• Thread type: external 1/2" (standard pipe thread interface)
• Hose barb diameter: 10 mm (jodełka-style barb for improved grip)
• Application medium: compressed air and other non-corrosive, low-pressure gases
• Use pressure range: suitable for low-pressure pneumatic systems (consult system limits)
• Connection method: push-on hose with optional clamp for enhanced retention

How to use

Ensure the mating threaded port is clean and undamaged before installation. Thread the external 1/2" end into the corresponding female thread by hand, then tighten with an appropriate wrench to a snug fit without exceeding recommended torque for the receiving component. Slide a 10 mm internal-diameter hose onto the jodełka-style barb until it seats fully against the fitting shoulder. For a secure, leak-resistant connection, fit a hose clamp over the barb and tighten to the clamp manufacturer's recommended tension. Check the assembly for leaks under system pressure and retighten clamps if necessary.

Usage recommendations

Use compatible hose material rated for the system pressure and temperature. Avoid exposure to aggressive chemicals that can degrade the hose or fitting. For systems operating near the upper pressure limit, prefer mechanical clamps and periodic inspection to ensure continued seal integrity. If thread sealing compound or tape is used on the 1/2" thread, apply according to the sealant manufacturer's instructions and ensure no material enters the airflow path.
