Weight:
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
-
7.08 kg
-
Certification:
-
ISO/IEC 11801-1:2017
-
Package weight:
Weight of the packaged product.
-
8560 g
-
Operating temperature (T-T):
The minimum and maximum temperatures at which the product can be safely operated.
-
-20 - 60
-
Cable length:
How long the cable is.
-
1.8 m
-
Cable type:
Type of cable e.g. electicity cable, optical cable.
-
LC/SC
-
Data transfer rate:
Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations.
-
100 Gbit/s
-
Product colour:
The colour e.g. red, blue, green, black, white.
-
Yellow
-
Country of origin:
Country where the device is made. Aka Country of manufacture (COM).
-
Hungary
-
Package depth:
The distance from the front to the back of the packaging.
-
587 mm
-
Package height:
The distance from the top to the bottom of the packaging.
-
55 mm
-
Package width:
The distance from one side of the packaging to the other.
-
799 mm
-
Connector 1:
This is the first connector in the device.
-
LC
-
Connector 2:
This is the second connector in the device.
-
SC
-
Fiber mode structure:
-
Single-mode
-
Core diameter:
The diameter of the core, which is the material at the centre e.g. the metal in an electrical wire.
-
9 µm
-
Cladding diameter:
The diameter of the cladding, which is the material around the centre (core) e.g. the plastic coating in an electrical wire.
-
125 µm
-
Jacket material:
-
Low smoke zero halogen (LSZH)
-
Packaging content:
-

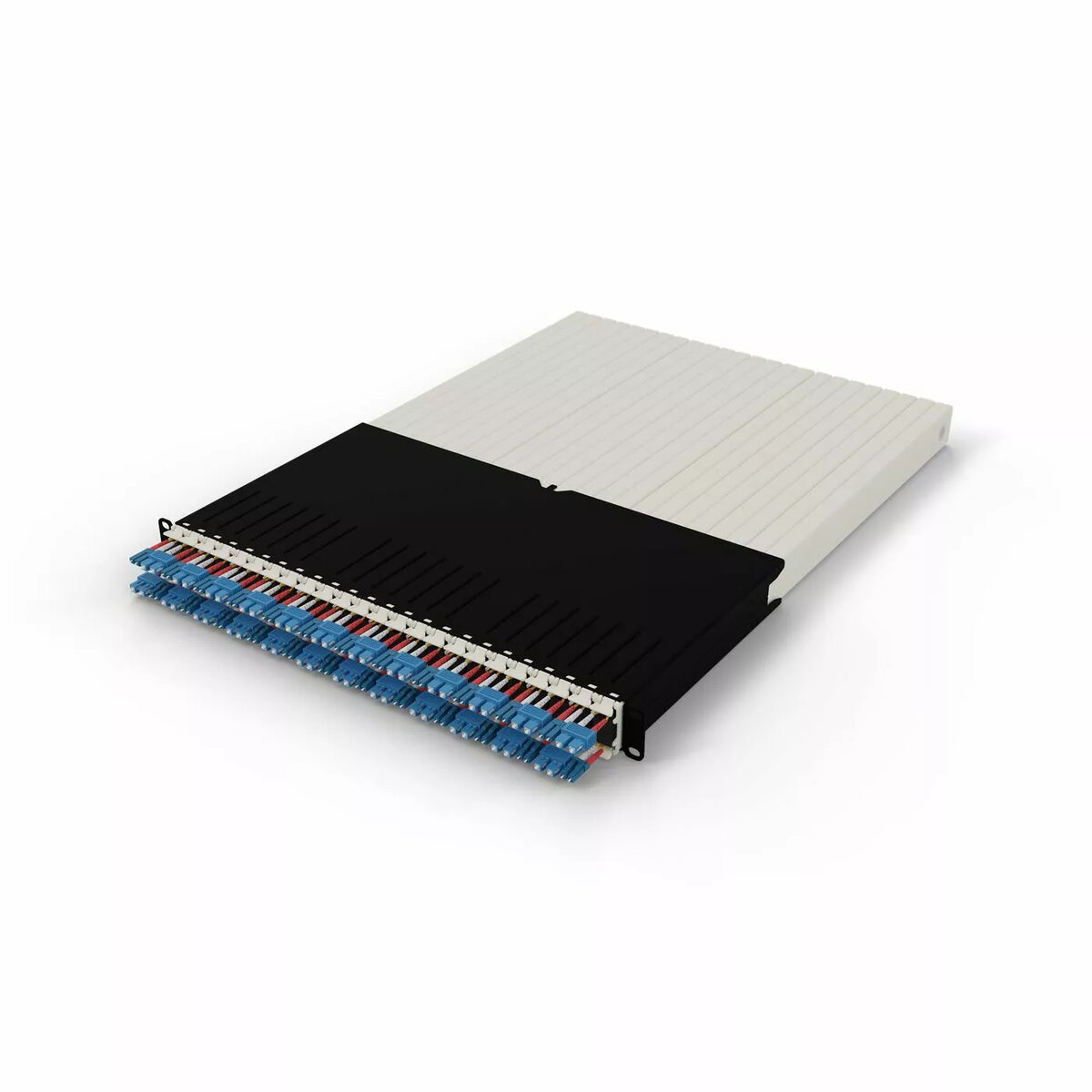

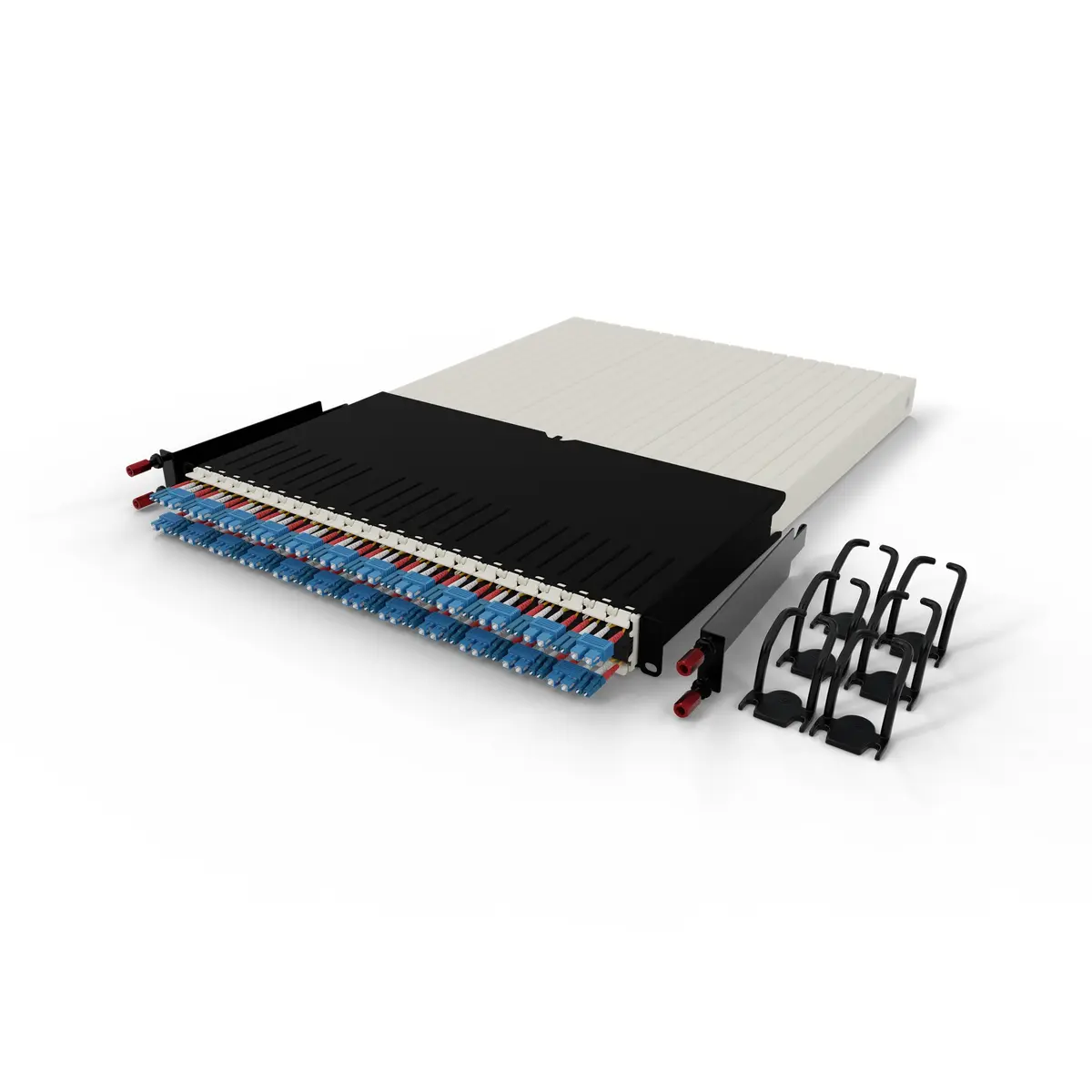

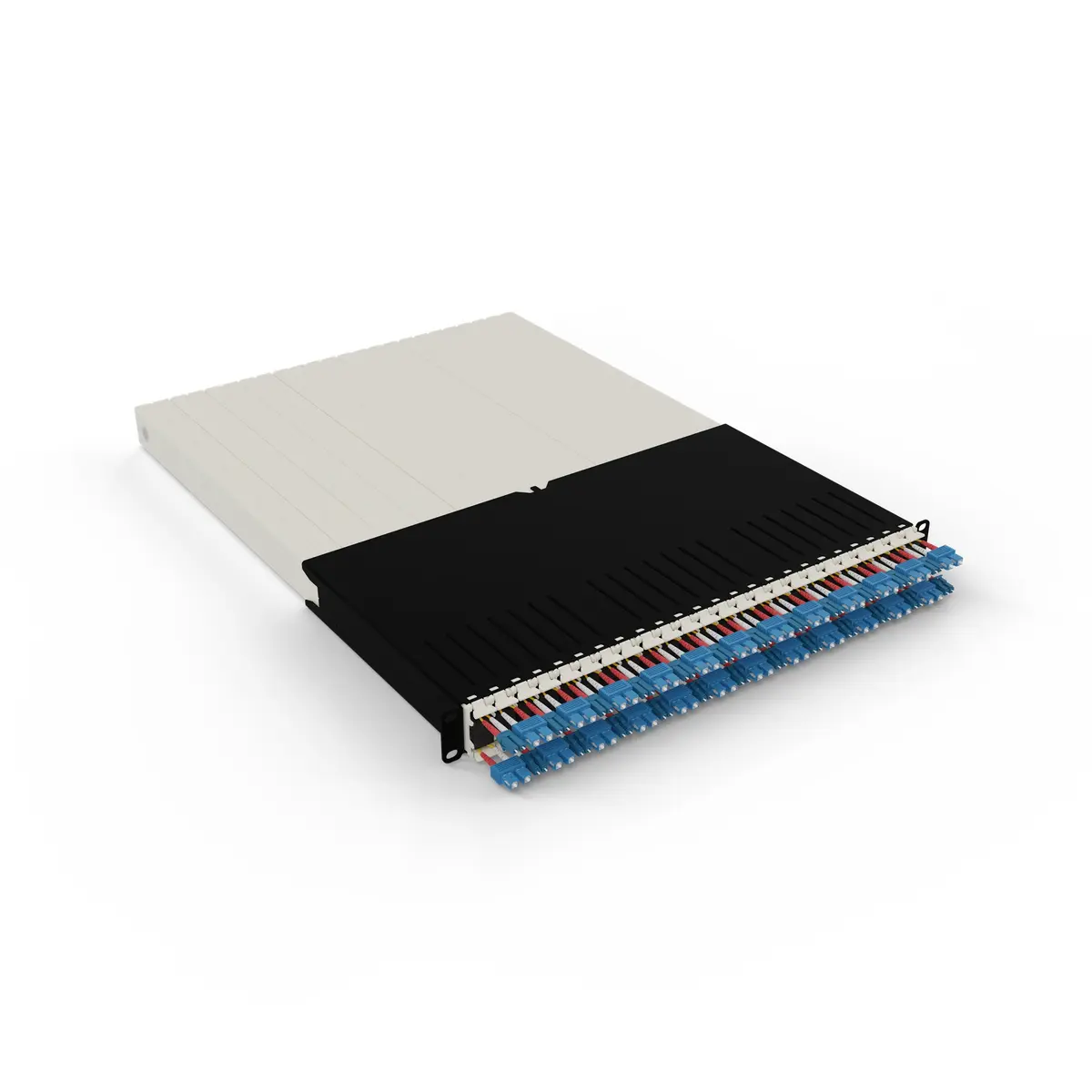

24 x patchbox.one / Cassette / 30RU / OS2 / LC-SC
1 x patchbox.one / Frame
4 x Flanges
4 x Hex nuts
6 x Patchcatch
2 x Mounting rails
-
Connector 1 gender:
The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male.
-
Male
-
Connector 2 gender:
The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female.
-
Male
-
Bending radius:
-
5 mm
-
Quantity per pack:
-
1 pc(s)
-
Fibre optic type:
The standardised properties of the fiber optic cable.
-
OS2
