Connection module PATLITE LR7-02WTNU

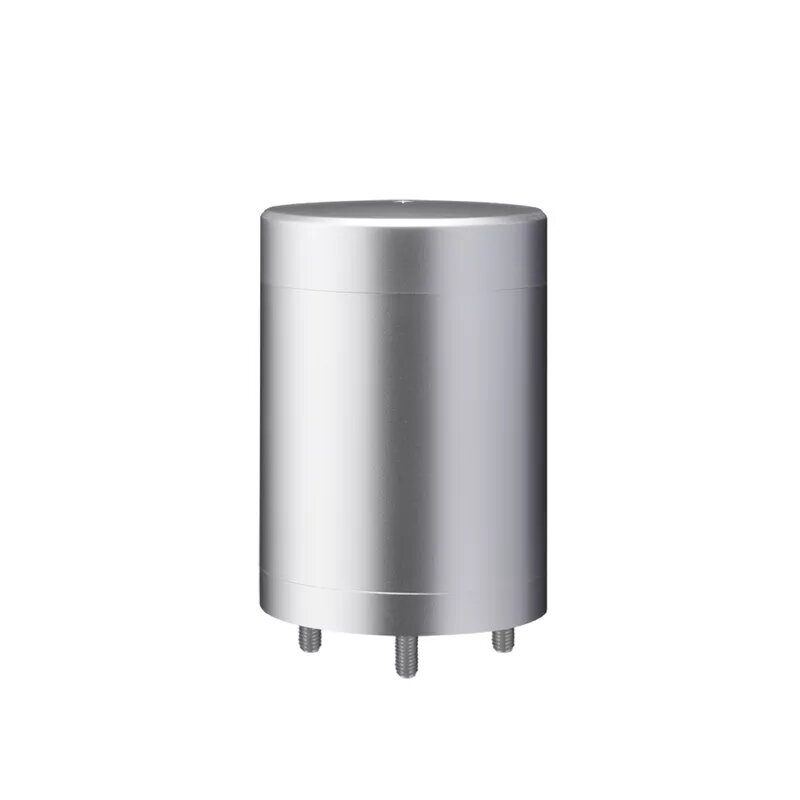

The PATLITE LR7-02WTNU connection module is a compact silver accessory for 24 V DC systems. Designed to integrate with PATLITE signal products, it provides a reliable electrical connection in environments with moderate temperature and humidity variations. With a 7 cm diameter, the module is sized for straightforward installation in signal stacks and small control panels, and it is supplied as a single unit for individual replacement or system expansion.

Advantages

This connection module supports a nominal 24 V DC input and is constructed for compatibility with PATLITE signal devices. Its metal-toned housing and standardized diameter facilitate simple mounting and interchangeability with existing modules. The unit is specified to operate across a wide ambient temperature range from -20 to 50 °C and tolerates relative humidity up to 90%, ensuring continuous performance in many indoor industrial settings. Sold individually, the module allows targeted maintenance without replacing full assemblies.

Suitable for

• Integration into PATLITE signal stacks and beacon assemblies
• Replacement of worn or damaged connection modules in control panels
• Use in 24 V DC indicator and signaling installations
• Applications requiring compact connection modules with moderate environmental resistance

Key specifications

• Rated input voltage: 24 V DC
• Color / finish: silver metal-tone housing
• Diameter: 7 cm
• Operating temperature range: -20 to 50 °C
• Relative humidity range: 0 to 90%
• Sold as: single unit

How to use

Install the connection module in accordance with PATLITE assembly instructions for signal stacks or control panels. Ensure the system power is turned off before making electrical connections. Align the module with the mating connectors on the PATLITE device and secure it mechanically according to the device’s mounting method. After installation, restore power and verify correct operation of the connected signaling elements.

Usage recommendations

For reliable performance, use the module only with compatible PATLITE signal devices and a stable 24 V DC power source. Avoid exposure to environments outside the stated temperature and humidity ranges. Inspect connectors periodically for corrosion or wear and replace the module if mechanical damage or electrical faults are detected.
