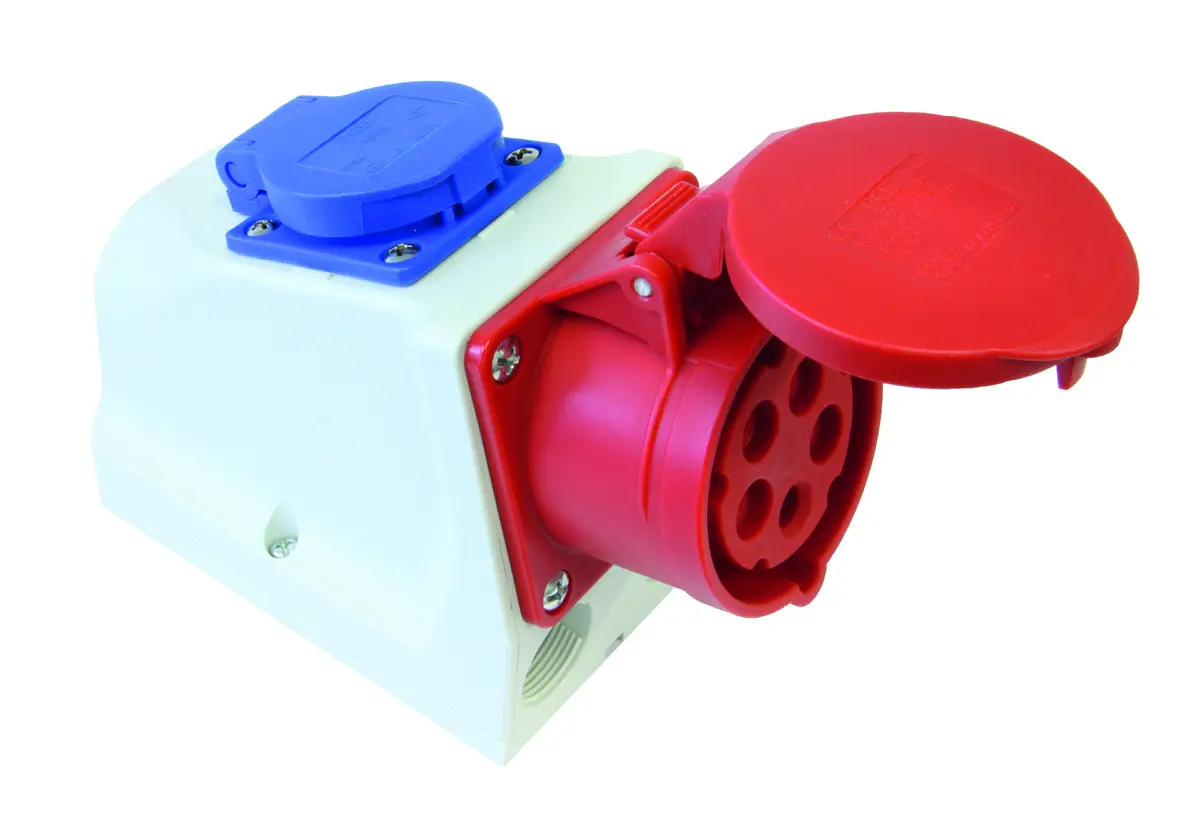

The PCE 9225-6F is a robust, pre-wired combination socket engineered for efficient power distribution in industrial and commercial settings. This unit integrates a high-capacity 32A 400V 3P+N+E CEE industrial connector alongside a standard 230V Schuko outlet, providing a versatile solution for powering both heavy-duty machinery and auxiliary equipment from a single connection point. With an IP44 ingress protection rating, the housing is designed to resist splashing water and solid foreign objects, ensuring consistent performance in demanding work environments.
Advantages
This combination socket offers significant installation efficiency due to its pre-wired configuration, which reduces the time and labor required for setup. The dual-outlet design allows users to manage high-power industrial loads and standard electrical devices simultaneously without the need for additional distribution boxes. Its durable construction ensures long-term reliability, while the IP44 rating provides the necessary protection against environmental factors typically encountered in workshops, construction sites, and industrial facilities.
Suitable for
- Industrial manufacturing facilities
- Construction sites requiring temporary power
- Workshops and garages
- Commercial power distribution systems
This unit may not be suitable for environments requiring high-pressure water jet protection or total submersion, as it is rated only for IP44 splash protection. It is also not intended for use in explosive atmospheres or areas where specialized hazardous-location equipment is mandatory.
Key specifications
- Connector type: 32A 400V 3P+N+E CEE industrial socket
- Secondary outlet: 230V Schuko socket
- Ingress protection: IP44
- Configuration: Pre-wired
Installation should be performed by a qualified electrician in accordance with local electrical codes. The unit is designed for surface mounting. Ensure that the mounting surface is flat and stable to maintain the integrity of the seal. Connect the incoming power supply to the internal terminals, ensuring that all connections are tightened to the specified torque to prevent overheating or loose contacts.
What to consider before purchase
- Verify that your existing electrical infrastructure supports the 32A 400V load requirements.
- Ensure the installation environment meets the IP44 protection criteria.
- Confirm that the physical dimensions are compatible with your intended mounting location.
Always inspect the housing and cable glands for any signs of damage before installation. Ensure that the power supply is disconnected during the wiring process and that the unit is properly grounded to maintain safety standards.
