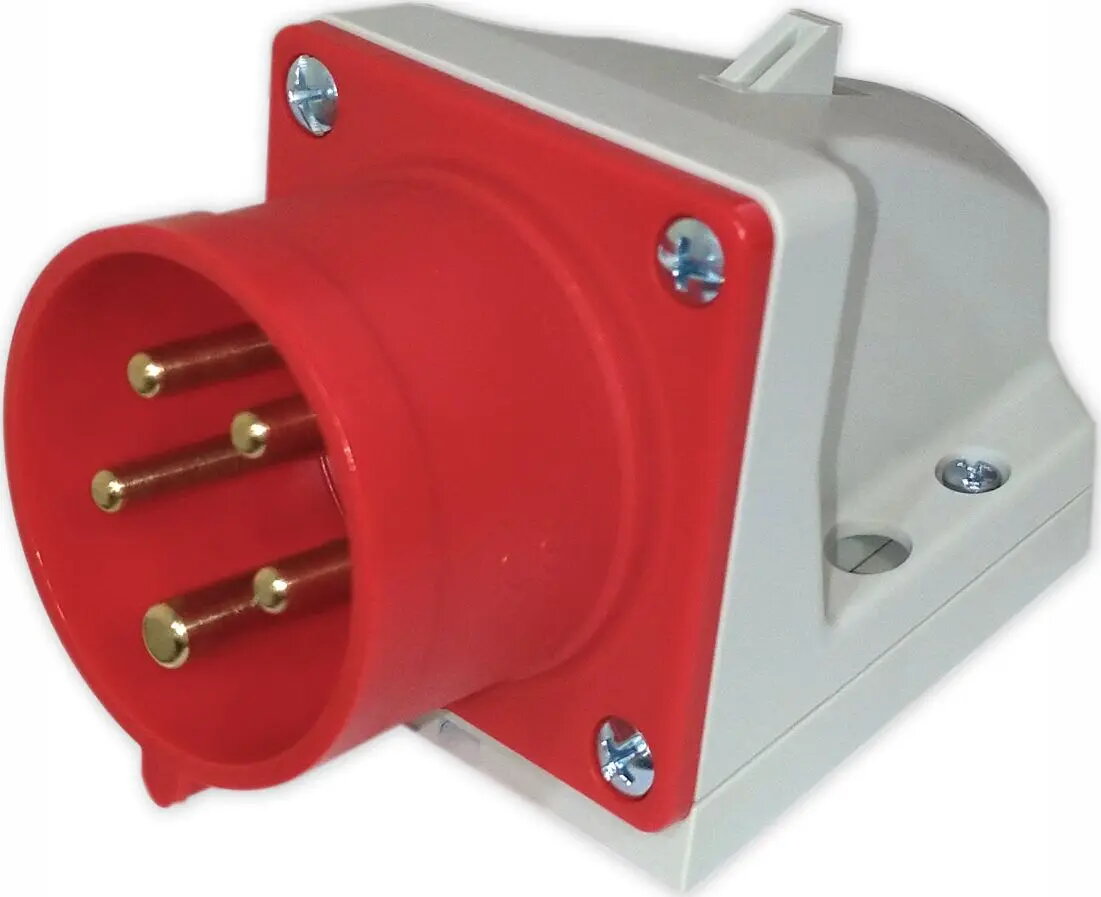

PCE Power Plug Fixed Receptacle IP44 16A 5P 400V PC033 (515-6)

The PCE Power Plug Fixed Receptacle IP44 16A 5P 400V PC033 is a fixed-type industrial connector intended for permanent mounting in electrical installations. It provides a five-pole connection for three-phase systems at 400V with a 16A current rating and an IP44 degree of protection against solid objects and water splashes. The design is suitable for use where a secure, robust power interface is required for machinery, distribution points or temporary power layouts.

Advantages

This fixed receptacle offers a clearly specified current and voltage rating for safe matching with compatible equipment, and the five-pole configuration supports three-phase plus neutral/earth connections. The IP44 protection rating reduces the risk of ingress from debris and splashing water in typical indoor or semi-exposed environments. The construction is intended for durable mounting and stable electrical contact, helping to maintain reliable power delivery in industrial and commercial settings.

Suitable for

• Permanent or semi-permanent power outlets for machinery and production equipment
• Connection points on distribution panels in workshops or production halls
• Temporary power supply setups for events, construction sites or maintenance
• Three-phase electrical systems requiring a 5-pole 400V/16A interface

When it may not be suitable

This fixed receptacle is not intended for portable or frequent plug-and-unplug use where a mobile connector would be more appropriate. It also may not be suitable for outdoor installations exposed to heavy rain, dust, or immersion, since the IP44 rating only protects against splashes and limited solid ingress. For higher current or different voltage requirements, a receptacle with higher ratings should be selected.

Key specifications

• Pin configuration: 5 poles (three phases, neutral, earth)
• Rated current: 16 A
• Rated voltage: 400 V (three-phase)
• Protection rating: IP44 (protection against solid objects >1 mm and splashing water)
• Mounting type: fixed/permanent installation

How to use

Install the fixed receptacle on a suitably prepared panel or wall surface in compliance with local electrical codes and safety regulations. Ensure power is disconnected before making any electrical connections. Wire the conductors to the appropriate terminals following the phase, neutral and earth designations, tighten terminal screws to the manufacturer’s recommended torque, and secure the receptacle housing. After installation, verify correct phase orientation and continuity with appropriate test equipment before energising the circuit.

What to consider before purchase

• Confirm the electrical system uses 400 V three-phase and requires a 16 A rated connection
• Ensure the IP44 protection level is adequate for the intended environment (indoor or sheltered locations)
• Verify mechanical mounting dimensions and compatibility with the installation panel
• Check that the 5-pole configuration matches the required wiring scheme (L1, L2, L3, N, PE)

Usage recommendations

For reliable operation, install the receptacle in a dry, ventilated, and accessible location; perform periodic inspections of contacts and seals; and use appropriately rated mating plugs and cables matched to the 16 A/400 V specification.
