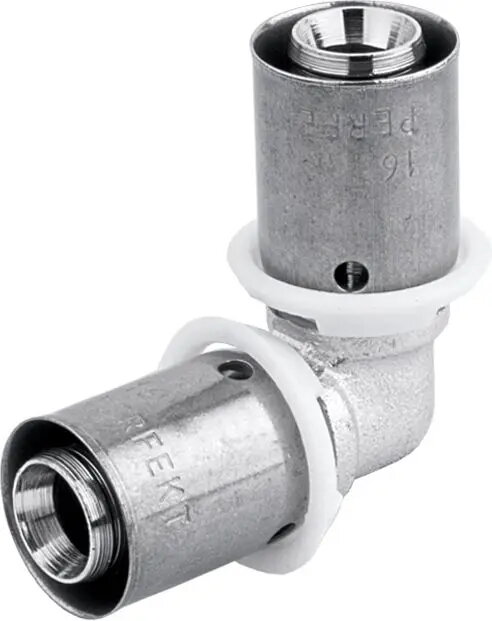

Perfexim press-fit elbow 20 mm model 736 (MPN 62-736-0200-000)

Perfexim press-fit elbow 20 mm model 736 is a 90° press fitting designed for reliable right-angle connections in water and heating systems. Intended for use with compatible metal or press-rated pipes, this compact elbow creates a sealed joint without soldering. The product is manufactured to meet typical plumbing requirements for domestic and light commercial installations where press-connection systems are used.

Advantages

The press-fit design ensures quick installation and consistent joint quality while reducing the need for open flame or lengthy curing times. The 20 mm diameter suits common residential piping runs and the compact 90° profile minimizes space requirement at directional changes. Constructed for compatibility with press tools and rings, the elbow provides durable mechanical and hydraulic stability when installed according to accepted standards.

Suitable for

• Creating 90° turns in potable water distribution systems
• Routing pipes in central heating circuits and radiators
• Repairs and renovations in residential plumbing
• Professional plumbing installations using press-connection technology

Key specifications

• Nominal diameter: 20 mm
• Connection type: press-fit 90° elbow for compatible press pipes
• Intended media: water and heating fluids suitable for press systems
• Application: potable water and central heating circuits
• Form factor: compact right-angle fitting

How to use

Prepare the pipe by cutting squarely and deburring the end. Verify that the pipe material and wall thickness match the elbow's compatibility requirements and insert the pipe fully into the fitting until it reaches the stop. Use the appropriate press tool and jaw for a 20 mm fitting and perform the press operation according to the tool manufacturer's instructions. After pressing, inspect the joint visually and, where applicable, perform a pressure test in line with local plumbing regulations to confirm seal integrity.

Usage recommendations

Store fittings in a dry environment and protect them from mechanical damage prior to installation. Always follow the press tool and fitting manufacturer's guidance for jaw selection, pressing sequence, and testing. For potable water systems, ensure materials are approved for drinking water in the applicable region and adhere to local building codes when planning installations.
