header-product Power Supply Unit Phanteks Revolt 1200 W
265.99 €

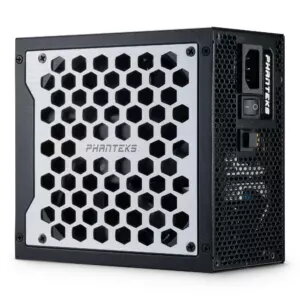

Power Supply Unit Phanteks Revolt 1200 W

Power Supply Unit Phanteks Revolt Photo 1
Power Supply Unit Phanteks Revolt Photo 2
Power Supply Unit Phanteks Revolt Photo 3
Power Supply Unit Phanteks Revolt Photo 4
Power Supply Unit Phanteks Revolt Photo 5
Power Supply Unit Phanteks Revolt Photo 1
Power Supply Unit Phanteks Revolt Photo 2
Power Supply Unit Phanteks Revolt Photo 3
Power Supply Unit Phanteks Revolt Photo 4
Power Supply Unit Phanteks Revolt Photo 5
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Power Supply Unit Phanteks Revolt 1200 W

{{email}}
You keep track of price changes

Power Supply Unit Phanteks Revolt 1200 W

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

The Phanteks Revolt 1200 W power supply unit is designed for high-performance PCs. It features a fully-modular cabling system, ensuring easy installation and optimal airflow. With an 80 PLUS Platinum certification, it guarantees high energy efficiency. The active cooling system with a 13.5 cm fan keeps the unit cool during operation. Dimensions: 160 mm (W) x 150 mm (D) x 86 mm (H).
Available for order: 4 pcs.
Warranty: 2 Years
SKU: 10821814
Manufacturer: PHANTEKS
free shipment

Cheapest delivery:

Unisend LV

Pick-up points

Unisend LV

Cost

1.79 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
17.08.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
20.08.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 2.71 kg)
Parcel couriers
Unisend LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts pakomāts / DPD Paku skapis / Omniva LV / Latvijas Pasts nodaļa
20.08.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.79 €
0 credit

pay in 3 equal parts

today

0 €

afterward

3 mth. х 88.66 €

overpayment

0 €

All payment Methods:
Bank transfer, Bank cards on-line, Apple Pay, Google Pay, Installment
36 months installment: from 7.39 euros per month
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Phanteks Revolt 1200 W power supply unit is built for high-performance desktop systems and custom cable configurations. This fully modular PSU supports advanced builds by allowing users to attach only the cables they need, which reduces clutter and improves case airflow. Engineered in collaboration with Seasonic, the Revolt series meets and exceeds Intel ATX 3.0 requirements and is optimized for reliable operation in demanding environments. The unit is finished in black and uses an active cooling system with a 135 mm fan to maintain stable temperatures during prolonged loads. Its compact footprint (160 mm × 150 mm × 86 mm) fits many standard and high-end systems while delivering a continuous 1200 W output and 80 PLUS Platinum efficiency.

Advantages

The fully modular cabling system simplifies installation and cable management by letting builders connect only the required cables, improving airflow and interior organization. 80 PLUS Platinum certification ensures high energy efficiency across a range of loads, reducing wasted power and heat. A 135 mm active cooling fan provides effective thermal management with a balance of airflow and acoustic performance. Collaboration with a reputable OEM ensures electrical stability and compliance with modern platform standards, including Intel ATX 3.0.

Suitable for

  • High-performance gaming PCs with multiple GPUs and overclocked CPUs
  • Workstations for 3D rendering, video editing, and engineering applications
  • Custom builds that use aftermarket modular cables or CableMod cable sets
  • Systems requiring stable continuous power delivery for long-duration tasks

Key specifications

  • Total power output: 1200 W continuous
  • Efficiency rating: 80 PLUS Platinum
  • Cooling: 135 mm active fan
  • Form factor and dimensions: 160 mm (W) × 150 mm (D) × 86 mm (H)
  • Colour: Black
  • Fully modular cabling for customized cable selection and reduced clutter
  • Compatibility: Supports Intel ATX 3.0 platform requirements

How to use

Install the Phanteks Revolt 1200 W into a compatible PC chassis according to the case manufacturer’s PSU mounting instructions. Connect only the modular cables required for your components, ensuring proper seating of all connectors to motherboard, CPU, GPU, storage and peripherals. Make sure the PSU fan intake has unobstructed airflow and that case ventilation supports heat dissipation. Verify voltage and power requirements of your components before operation. After initial power-up, monitor system stability and temperatures during typical workloads to confirm proper cooling and power delivery.

Usage recommendations

For best results, pair this fully modular PSU with high-quality custom cable kits from reputable manufacturers if you prefer bespoke cable aesthetics. Ensure your system’s combined power draw under peak load remains within the 1200 W capacity with headroom for efficiency and longevity. Maintain regular dust cleaning around the fan intake to preserve cooling performance and service life.

Specifications

80 PLUS certification:
80 PLUS Platinum
Power supply unit (PSU) form factor:
ATX
Purpose: What the product is used for.
PC
Peripheral (Molex) power connectors (4-pin): White 4-pinned connector used to connect a peripheral to the power supply.
5
AC input voltage: The voltage of the AC electricity that is inputted into the product.
100 - 240
Total power: The total power that is needed by the device, or the total power produced by the device.
1200 W
All features

Packaging data

Package type: The type of product package e.g. box.
Box

Weight & dimensions

Height: The measurement of the product from head to foot or from base to top.
86 mm
Depth: The distance from the front to the back of something.
150 mm
Width: The measurement or extent of something from side to side.
160 mm

Operational conditions

Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.
0 - 50

Design

On/off switch: The button which is pressed to switch the device on or off.
Yes
Number of fans: The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation).
1 fan(s)
Fan diameter: The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan.
135 mm
Cooling type: The method used to cool the device or to cool the air around the device.
Active
Product colour: The colour e.g. red, blue, green, black, white.
Black

Performance

Mean time between failures (MTBF): Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.
100000 h
80 PLUS certification:
80 PLUS Platinum
Power supply unit (PSU) form factor:
ATX
Purpose: What the product is used for.
PC

Ports & interfaces

Cabling type:
Fully-Modular
Peripheral (Molex) power connectors (4-pin): White 4-pinned connector used to connect a peripheral to the power supply.
5

Power

Power protection features: Features that protect the device against power problems e.g. overload.
Over current, Over power, Overcharge, Overheating, Short circuit
Max output current (+5Vsb):
3 A
Max output current (-12V):
0.3 A
Max output current (+5V):
25 A
Max output current (+12V):
100 A
Max output current (+3.3V):
25 A
Combined power (+5Vsb):
15 W
Combined power (-12V):
3.6 W
Combined power (+5V):
125 W
Combined power (+12V):
1200 W
Combined power (+3.3V):
125 W
Maximum input current (@220V):
7.5 A
Maximum input current (@110V):
15 A
Input current:
10 - 5
AC input frequency:
50/60
AC input voltage: The voltage of the AC electricity that is inputted into the product.
100 - 240
Total power: The total power that is needed by the device, or the total power produced by the device.
1200 W

Description
