PHANTEKS Eclipse P400A Midi Tower Black

Name: PC Case PHANTEKS Eclipse P400A PH-EC400ATG_DBK01
Brand: PHANTEKS
SKU: 3498294
Price: 144.99 EUR
Availability: OutOfStock

EcoFlow – energy without limits

Powerful EcoFlow stations for energy anywhere!

PC Case PHANTEKS Eclipse P400A Midi Tower Black — mesh front, 3x120mm front fans, supports ATX/Micro-ATX/Mini-ITX/E-ATX, 2x3.5" + 2x2.5" bays

PHANTEKS Eclipse P400A Midi Tower Black Photo 1

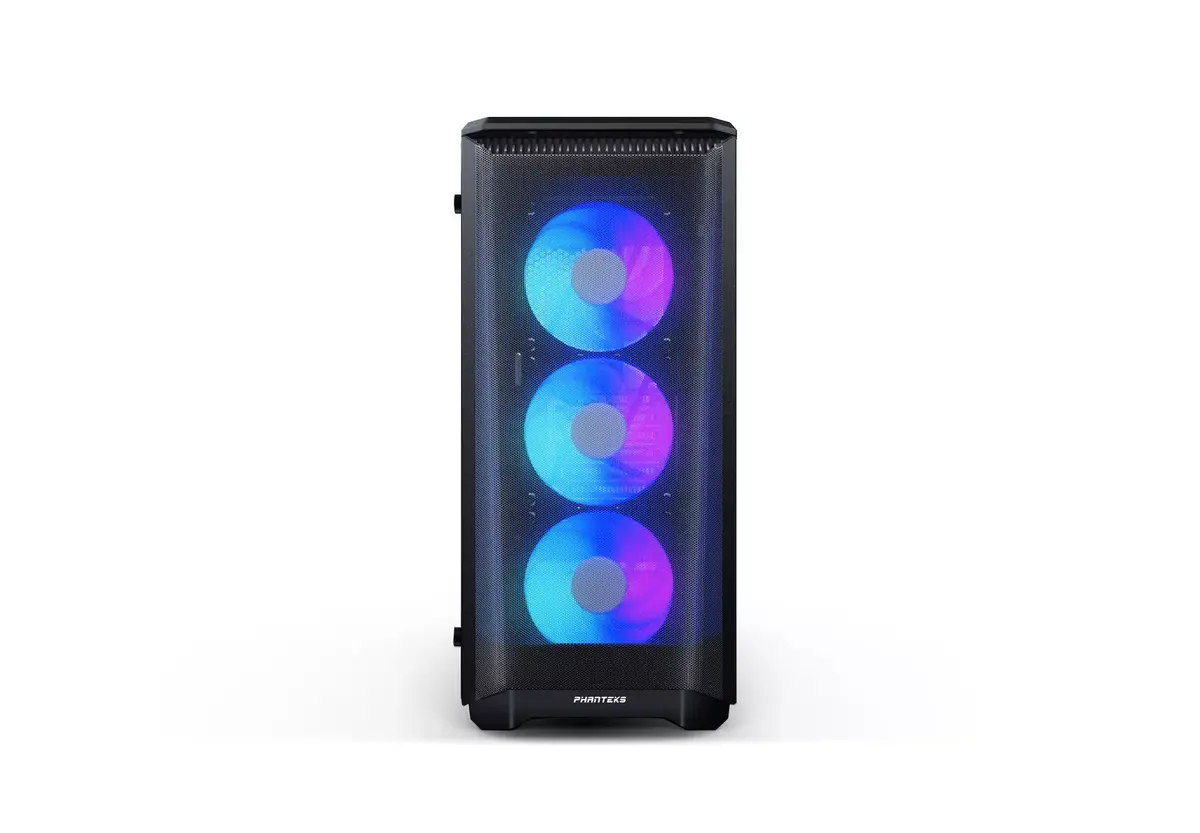

PHANTEKS Eclipse P400A Midi Tower Black Photo 2

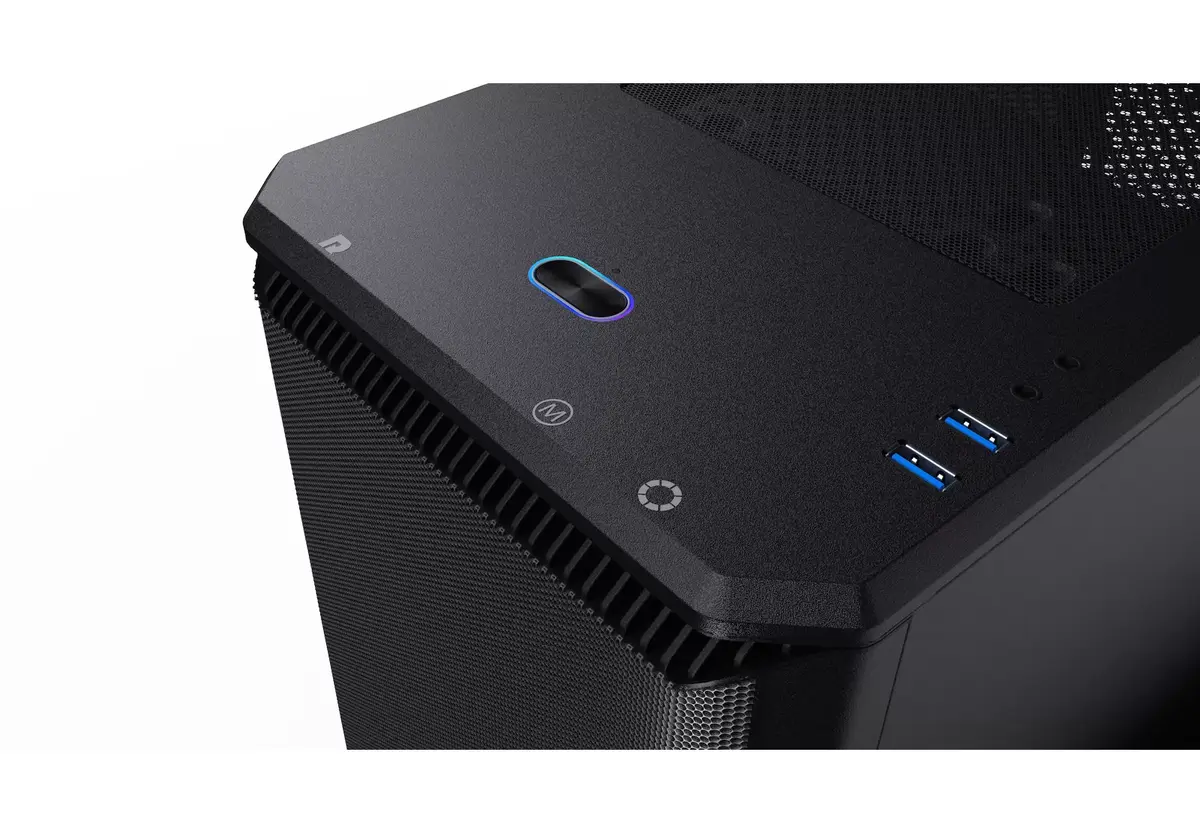

PHANTEKS Eclipse P400A Midi Tower Black Photo 3

PHANTEKS Eclipse P400A Midi Tower Black Photo 4

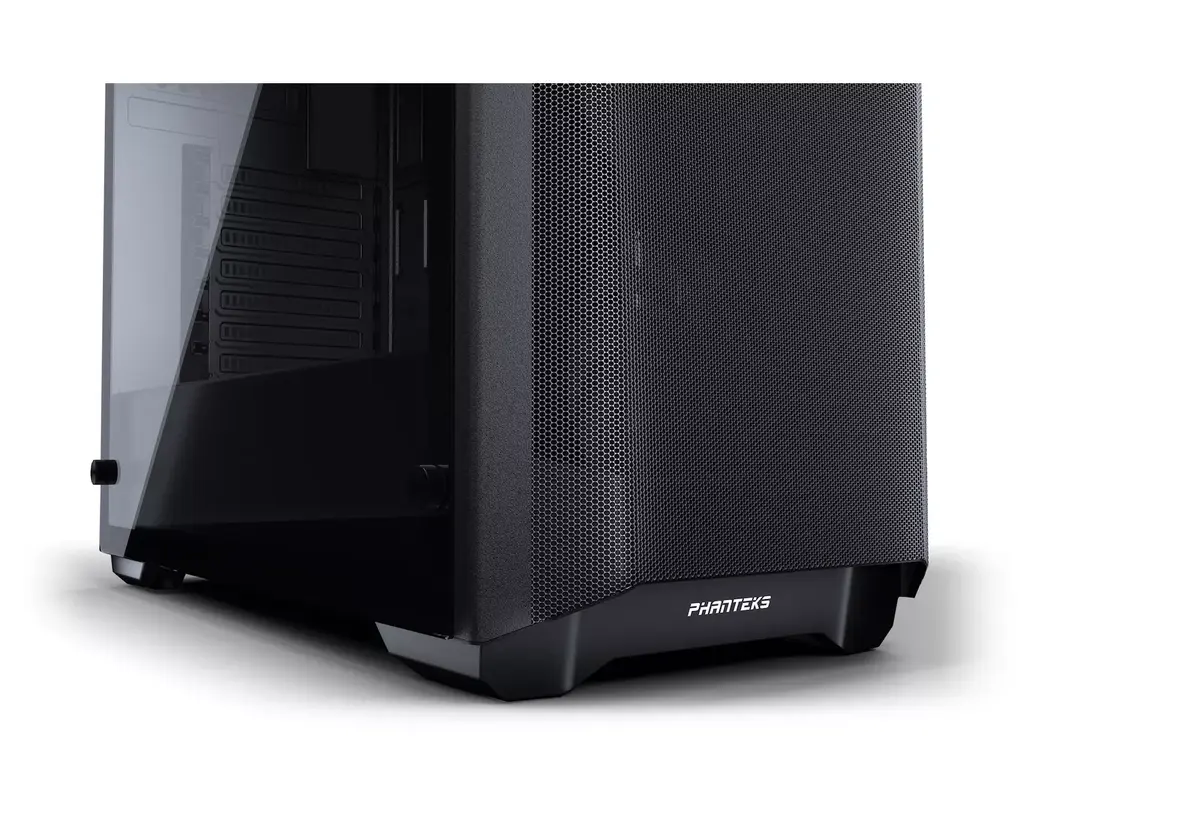

PHANTEKS Eclipse P400A Midi Tower Black Photo 5

PHANTEKS Eclipse P400A Midi Tower Black Photo 6

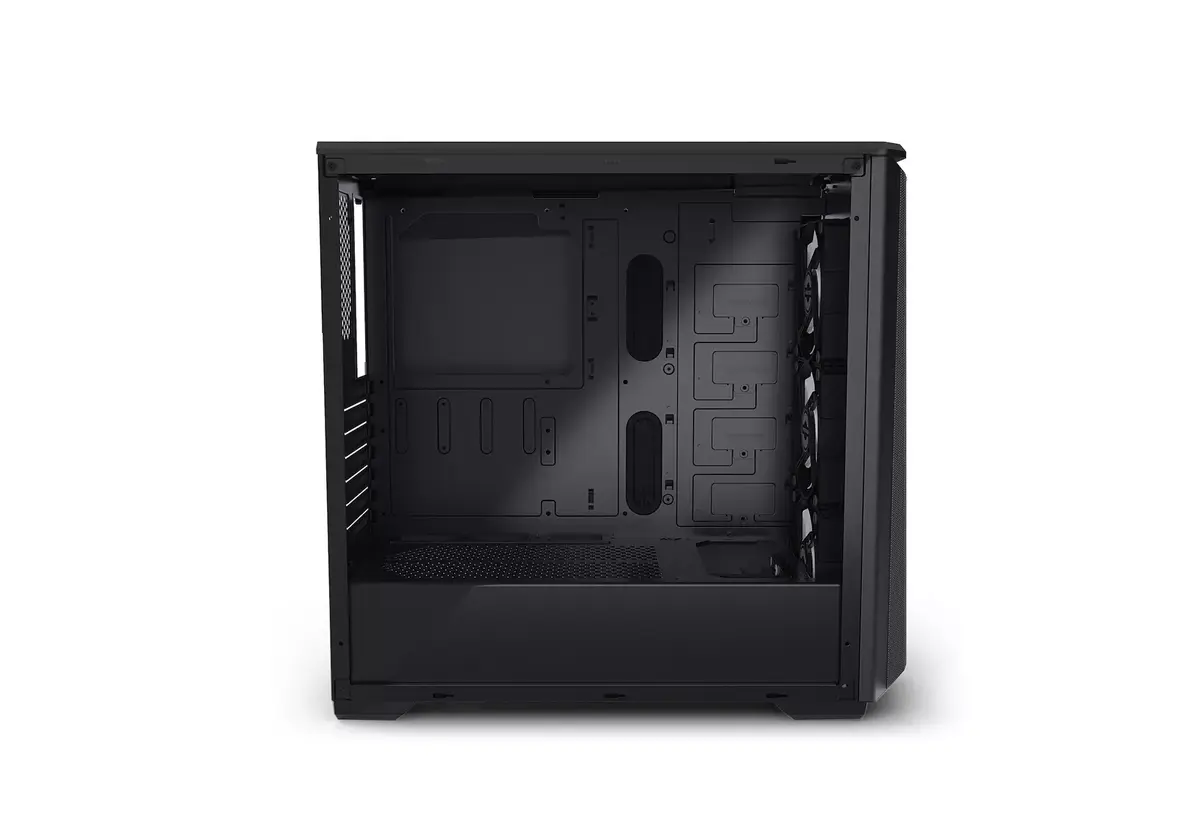

PHANTEKS Eclipse P400A Midi Tower Black Photo 7

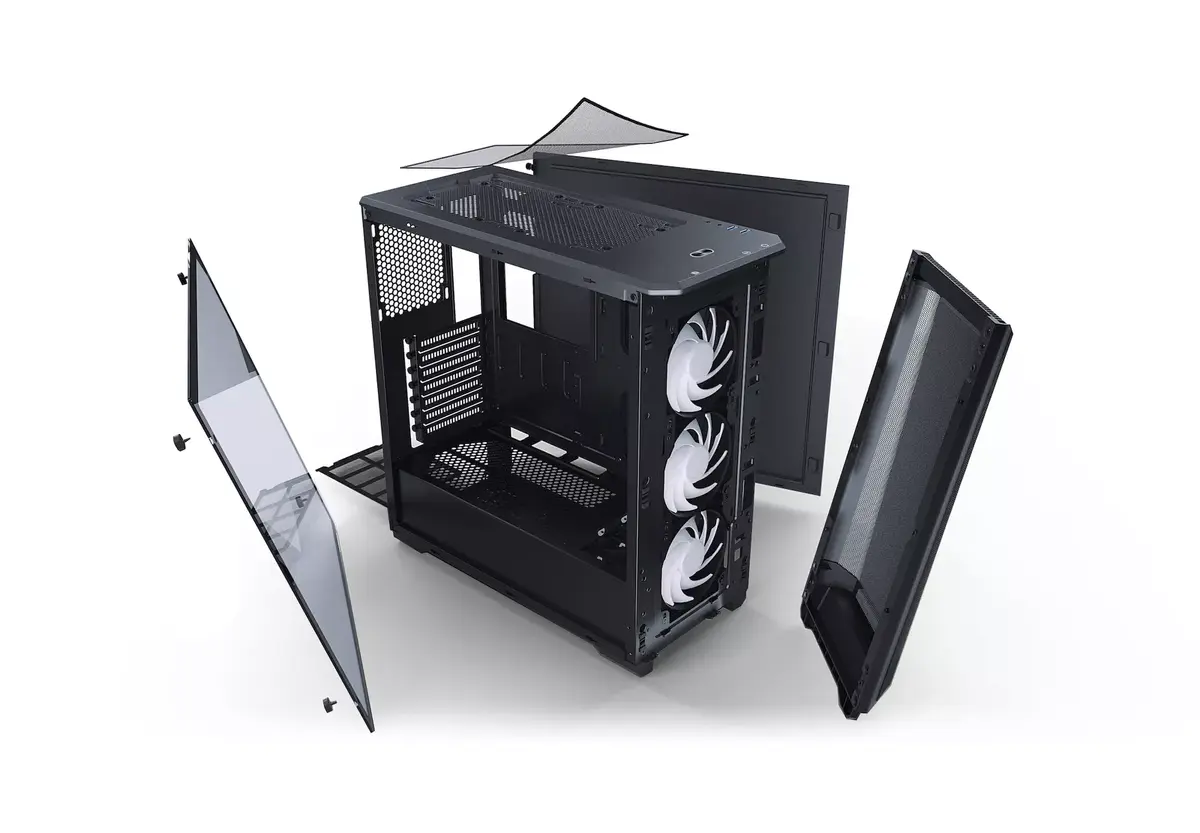

Short description

PHANTEKS Eclipse P400A is a Midi Tower PC case in black with a mesh front and three preinstalled 120 mm front fans. It supports ATX, Micro-ATX, Mini-ITX and E-ATX motherboards, rear 120 mm fan, bottom-mounted power supply, and accommodates 2×3.5" and 2×2.5" drives. Dimensions: 210 × 465 × 470 mm. Front I/O includes two USB 3.2 Gen 1 Type-A ports.

Warranty: 2 Years

SKU: 3498294

Manufacturer: PHANTEKS

Information regarding the items availability for purchase will be posted on this site

Item cost information will be published on this site

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

PHANTEKS Eclipse P400A is a black Midi Tower PC case featuring a full metal mesh front panel and three preinstalled 120 mm front fans. The Ultra-Fine Performance Mesh design improves airflow while reducing dust intake to maintain cooler internal temperatures for CPU and GPU components. The case supports a wide range of motherboard form factors including ATX, Micro-ATX, Mini-ITX and E-ATX, offers a rear 120 mm fan mount and a bottom-mounted power supply layout, and provides storage capacity for two 3.5" drives and two 2.5" drives. Front I/O includes two USB 3.2 Gen 1 Type-A ports for high-speed peripheral connections. Overall external dimensions are 210 × 465 × 470 mm.

Advantages

The mesh front and Ultra-Fine Performance Mesh maximize airflow for effective cooling of system components while limiting dust ingress. Three preinstalled 120 mm front fans provide immediate intake airflow out of the box, reducing the need for additional fans. Compact Midi Tower dimensions combined with broad motherboard support allow flexible system builds from Mini-ITX to E-ATX. Steel and mesh construction offers structural rigidity and reliable mounting points for drives, fans and cooling solutions. Two front USB 3.2 Gen 1 ports deliver convenient fast data transfer and peripheral connectivity.

Suitable for

Air-cooled gaming or workstation builds that require strong front intake airflow
System builders who need support for ATX, Micro-ATX, Mini-ITX or E-ATX motherboards
Users planning a combination of 3.5" HDDs and 2.5" SSDs for mixed storage
Compact desktop setups where a Midi Tower footprint with good cooling is desired

Key specifications

Form factor: Midi Tower
Material: Steel and mesh front panel
Preinstalled fans: 3 × 120 mm (front)
Fan mounts: rear 120 mm; additional mounts supported depending on layout
Supported motherboards: Mini-ITX, Micro-ATX, ATX, E-ATX
Drive bays: 2 × 3.5" and 2 × 2.5"
Front I/O: 2 × USB 3.2 Gen 1 Type-A
Side panel: windowed side panel
Power supply position: bottom-mounted (PSU not included)
Exterior dimensions: 210 × 465 × 470 mm

How to use

Install the chosen motherboard into the standoffs that correspond to its form factor and secure it with screws. Mount the power supply in the bottom compartment and route power cables through the provided openings. Install 3.5" or 2.5" drives into the dedicated trays or mounting points, and connect SATA power and data cables to the drive and motherboard. Fit cooling components such as the CPU cooler and any additional fans, ensuring airflow direction aligns with the front intake and rear exhaust design. Use the front I/O ports for connecting USB peripherals. Close panels and verify cable management to maintain unobstructed airflow through the Ultra-Fine Performance Mesh.

Usage recommendations

For best thermal performance, maintain unobstructed airflow by keeping cables tidy and using the three preinstalled front fans as intake with a rear exhaust fan. Regularly clean the mesh front panel to reduce dust buildup and preserve cooling efficiency. When planning an E-ATX or tall CPU cooler build, verify component clearance against the case dimensions and mounting points before assembly.

Specifications

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: Number of USB 3.1 (3.1 Gen 2) ports with Type-C connector. USB 3.1 (3.1 Gen 2) is USB interface version which supports transfer rate up to 10 Gbit/s (SuperSpeed+). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface.: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:: 0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:: 2
USB 2.0 ports quantity: Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.: 0
Power supply included: There is a power supply with this product.: No
Number of 5.25" bays: A drive bay is a standard-area for adding hardware to a computer. Most drive bays are fixed to the inside of a case, but some can be removed. A 5.25" drive bay, also known as full-height bays, were found in old PCs in the early to mid-1980s. They were 3¼″ high by 5¾″ wide, and up to 8″ deep (83 × 146 × 200 mm), used mainly for hard disks and floppy disk drives.: 0
Number of 3.5" bays: A drive bay is a standard-area for adding hardware to a computer. Most drive bays are fixed to the inside of a case, but some can be removed. A 3.5" drive bay is for floppy disks.: 2
Type: Characteristics of the device.: PC
Form factor: The shape or design of the product.: Midi Tower
Supported HDD sizes: The size of the hard disk drives which can be used by the device.: 3.5, 2.5
Supported motherboard form factors: Design of the supported motherboards.: Mini-ITX, Micro ATX, EATX, ATX
Product colour: The colour e.g. red, blue, green, black, white.: Black

All features

Packaging data

LED controller:: Yes

Weight & dimensions

Height: The measurement of the product from head to foot or from base to top.: 470 mm
Depth: The distance from the front to the back of something.: 465 mm
Width: The measurement or extent of something from side to side.: 210 mm

Storage

Supported HDD sizes: The size of the hard disk drives which can be used by the device.: 3.5, 2.5

Cooling

Rear radiator sizes supported:: 120
Front radiator sizes supported:: 280, 360
Liquid cooling capability:: Yes
Top fans diameters supported:: 140, 120
Number of top fans supported (max):: 2
Rear fans diameters supported:: 120
Number of rear fans supported (max):: 1
Front fans diameters supported:: 120, 140
Number of front fans supported (max):: 3
Front fans installed:: 3x 120 mm
Fan speed control:: Yes

Ports & interfaces

Audio output: The type of audio output that the device produces, and the connector(s).: Yes
Audio input: The type of audio input that the device requires, and the connection needed.: Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: Number of USB 3.1 (3.1 Gen 2) ports with Type-C connector. USB 3.1 (3.1 Gen 2) is USB interface version which supports transfer rate up to 10 Gbit/s (SuperSpeed+). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface.: 0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:: 2
USB 2.0 ports quantity: Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.: 0

Power supply

Power supply location: Where the power supply is positioned.: Bottom
Power supply included: There is a power supply with this product.: No

Design

Maximum PSU length:: 280 mm
Maximum graphics card length:: 420 mm
Maximum CPU cooler height:: 160 mm
On/off button:: Yes
RGB control button:: Yes
Cable management: Description of improved cable management: Yes
Tempered glass panel(s):: Yes
Illumination location:: Case fans
Illumination colour: The colour of the illumination, which is the light which allows you to see the display etc. clearly.: Multi
Illumination: The device has illumination.: Yes
Side window: A side window is a transparent side (or part of side) in a housing which enables you to see the internal space of the device.: Yes
Number of expansion slots:: 7
Number of 2.5" bays:: 2
Number of 5.25" bays: A drive bay is a standard-area for adding hardware to a computer. Most drive bays are fixed to the inside of a case, but some can be removed. A 5.25" drive bay, also known as full-height bays, were found in old PCs in the early to mid-1980s. They were 3¼″ high by 5¾″ wide, and up to 8″ deep (83 × 146 × 200 mm), used mainly for hard disks and floppy disk drives.: 0
Number of 3.5" bays: A drive bay is a standard-area for adding hardware to a computer. Most drive bays are fixed to the inside of a case, but some can be removed. A 3.5" drive bay is for floppy disks.: 2
Supported motherboard form factors: Design of the supported motherboards.: Mini-ITX, Micro ATX, EATX, ATX
Product colour: The colour e.g. red, blue, green, black, white.: Black
Material: The material from which a thing is or can be made e.g. wood, plastic.: Steel, Mesh
Type: Characteristics of the device.: PC
Form factor: The shape or design of the product.: Midi Tower
