Power Supply Unit Phanteks Revolt

Name: Power Supply Unit Phanteks Revolt PH-P1000PR_BK01C
Brand: PHANTEKS
SKU: 10657380
Price: 265.49 EUR
Availability: InStock

JBL – powerful sound always with you

JBL speakers and headphones for pure and deep sound!

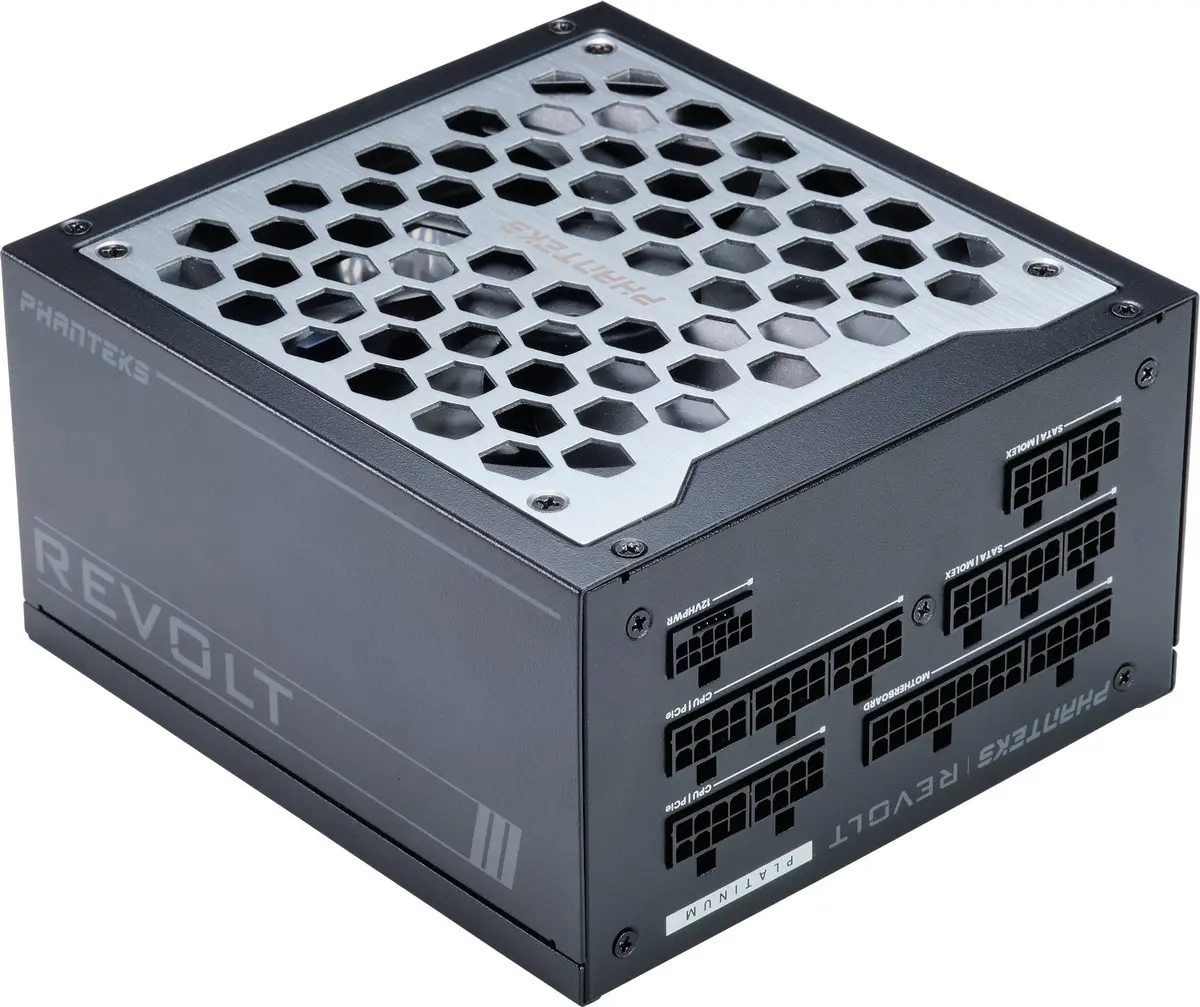

Power Supply Unit Phanteks Revolt 1000 W

Power Supply Unit Phanteks Revolt Photo 1

Power Supply Unit Phanteks Revolt Photo 2

Power Supply Unit Phanteks Revolt Photo 3

Power Supply Unit Phanteks Revolt Photo 4

Power Supply Unit Phanteks Revolt Photo 5

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

The Phanteks Revolt power supply unit delivers a total power of 1000 W with an AC input voltage range of 100 - 240 V and a frequency of 50/60 Hz. It features a fully-modular cabling system for easy installation and cable management. Designed for PC use, it has an ATX form factor and is 80 PLUS Platinum certified for high efficiency. The active cooling system includes a 13.5 cm fan, ensuring optimal performance. Dimensions: 160 mm (W) x 150 mm (D) x 86 mm (H).

Available for order: 2 pcs.

Warranty: 2 Years

SKU: 10657380

Manufacturer: PHANTEKS

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

06.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

06.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

09.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 2.50 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

09.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

pay in 3 equal parts

today

0 €

afterward

3 mth. х 88.5 €

overpayment

0 €

All payment Methods Hide details

All payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay, Installment

36 months installment: from 7.37 euros per month

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Phanteks Revolt 1000 W power supply unit provides 1000 W of continuous power for high-performance desktop PCs. Built in collaboration with Seasonic, this ATX-format PSU meets and exceeds modern power delivery standards and fully supports Intel ATX 3.0 specifications. The unit is offered in a fully modular form factor to accommodate custom cable solutions and reduce unused cabling. Its 80 PLUS Platinum efficiency rating and active cooling with a 135 mm fan contribute to stable operation under sustained loads. Physical dimensions are 160 mm (W) x 150 mm (D) x 86 mm (H) and the housing is finished in black.

Advantages

The Revolt 1000 W combines high efficiency and modular design to improve system airflow and cable management while reducing energy losses. Its 80 PLUS Platinum certification ensures lower heat generation and improved electrical efficiency compared to lower-certified units. Collaboration with an established OEM ensures reliable internal components and compliance with current ATX 3.0 power delivery requirements. The compact ATX size and 135 mm fan provide a balance between cooling performance and noise control during typical desktop and gaming workloads.

Suitable for

High-performance gaming PCs requiring stable 12V rails and full ATX 3.0 support
Custom builds using third-party custom cables or CableMod-style sleeved cables
Workstations with multiple high-draw components such as GPUs and storage arrays
Users seeking a fully modular PSU to optimize cable routing and airflow

Key specifications

Total output power: 1000 W
AC input voltage range: 100–240 V
Frequency: 50/60 Hz
Efficiency certification: 80 PLUS Platinum
Cooling: active, with 135 mm fan
Form factor: ATX
Colour: black
Dimensions: 160 mm (W) x 150 mm (D) x 86 mm (H)
Weight: 2.05 kg

How to use

Install the Phanteks Revolt 1000 W into a standard ATX PSU bay according to your case manufacturer's instructions. Because the unit is fully modular and designed for custom cable solutions, attach only the required cables for your system: main motherboard 24-pin, CPU 8-pin(s), PCIe connectors for GPUs, and SATA/Molex for drives as needed. Ensure proper orientation of connectors and secure all connections firmly. Connect the AC power cable to a suitable mains outlet within the stated input range and verify grounding. After assembly, power on the system and monitor voltages and temperatures during initial operation to confirm stable performance.

Usage recommendations

Use the Revolt 1000 W with high-quality custom cables from reputable vendors if you require a sleeve or aesthetic customization. Maintain adequate case airflow and keep dust filters clean to preserve cooling efficiency. For multiple high-power GPUs or extreme overclocking, verify headroom and consider higher-wattage Revolt models if necessary.

Specifications

Total power:: 1000 W
80 PLUS certification:: 80 PLUS Platinum
Fan diameter:: 135 mm
Weight:: 2.05 kg
Product colour:: Black

All features

Power

Total power:: 1000 W
Power protection features:: Short circuit, Overheating, Over current, Over power, Overcharge
Combined power (+3.3V):: 125 W
Combined power (+12V):: 996 W
Combined power (+5V):: 125 W
Combined power (-12V):: 3.6 W
Combined power (+5Vsb):: 15 W
Max output current (+3.3V):: 25 A
Max output current (+12V):: 83 A
Max output current (+5V):: 25 A
Max output current (-12V):: 0.3 A
Max output current (+5Vsb):: 3 A
Input current:: 10 - 5
AC input frequency:: 50/60
AC input voltage:: 100 - 240
Maximum input current (@110V):: 13 A
Maximum input current (@220V):: 6.5 A

Ports & interfaces

ATX Power connector (24-pin):: Yes
PCI Express connector:: Yes
PCI Express power connectors (6-pin):: 8
Number of SATA power connectors:: 4
Peripheral (Molex) power connectors (4-pin):: 5
Cabling type:: Fully-Modular

Performance

Purpose:: PC
80 PLUS certification:: 80 PLUS Platinum
Mean time between failures (MTBF):: 100000 h
Power supply unit (PSU) form factor:: ATX

Design

Fan diameter:: 135 mm
Number of fans:: 1 fan(s)
Cooling type:: Active
On/off switch:: Yes
Product colour:: Black

Weight & dimensions

Weight:: 2.05 kg
Height:: 86 mm
Width:: 160 mm
Depth:: 150 mm

Operational conditions

Operating temperature (T-T):: 0 - 50

Packaging data

Package weight:: 2500 g
Package type:: Box

Logistics data

Warranty period:: 12 year(s)
