header-product Phoenix Contact 1641785 M12 Wire Connector Black Stainless Steel Zinc RoHS
14.49 €

Phoenix Contact 1641785 M12 Wire Connector Black Stainless Steel Zinc RoHS

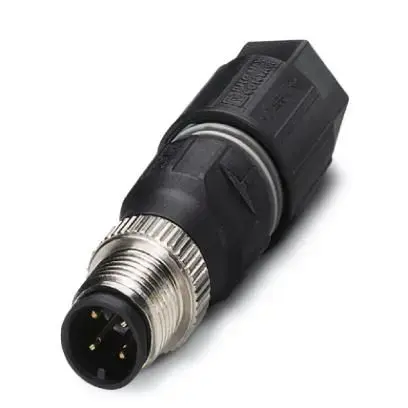

Phoenix Contact 1641785 M12 Connector Photo 1
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Phoenix Contact 1641785 M12 Wire Connector Black Stainless Steel Zinc RoHS

{{email}}
You keep track of price changes

Phoenix Contact 1641785 M12 Wire Connector Black Stainless Steel Zinc RoHS

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

Phoenix Contact 1641785 sensor and actuator wire connector featuring an M12 interface. Constructed from durable zinc and stainless steel with a black finish. Designed for secure and reliable industrial cabling applications. Complies with RoHS environmental standards. Supplied as a single unit.
Available for order: 60 pcs.
Warranty: 2 Years
SKU: 3246586
free shipment

Cheapest delivery:

Unisend LV

Pick-up points

Unisend LV

Cost

1.99 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
10.11.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
13.11.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 0.01 kg)
Parcel couriers
Unisend LV / Venipak Pickup LV / Venipak Locker LV / DPD Paku skapis / Omniva LV / Latvijas Pasts pakomāts / Latvijas Pasts nodaļa
13.11.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.99 €
payment
Payment Methods:
Bank transfer, Bank cards on-line, Apple Pay, Google Pay
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Phoenix Contact 1641785 sensor and actuator wire connector is a reliable and efficient component designed for secure industrial cabling applications. Featuring an M12 interface, this connector is engineered to provide safe and stable connections in demanding field environments. Built with a combination of durable zinc die-cast, nickel-plated components, and stainless steel in a sleek black finish, it ensures long-lasting performance. The unit incorporates an innovative insulation displacement connection method, allowing for time-saving assembly without the need to strip single wires. Complying with RoHS environmental standards, this universal 4-position straight plug is suitable for various professional automation and control setups.

Advantages

This connector provides a high degree of protection for safe usage directly in the field. Its design allows for flexible on-site assembly, making it adaptable to changing installation requirements. The innovative insulation displacement connection significantly reduces installation time by eliminating the need for wire stripping. Constructed from robust zinc die-cast and stainless steel materials, the unit offers excellent mechanical durability and resistance in industrial settings.

Suitable for

  • Industrial sensor and actuator cabling
  • On-site automation system assembly
  • Professional control cabinet wiring
  • Universal 4-position M12 interface connections

When it may not be suitable

This connector is not designed for applications requiring cable diameters outside the specified range of 4 mm to 8 mm. It is also unsuitable for non-industrial or residential environments where specialized waterproof or heavy-duty industrial connectors are not required.

Key specifications

  • M12 interface
  • Black, stainless steel, and zinc materials
  • Insulation displacement connection
  • 4-position straight plug configuration
  • External cable diameter compatibility from 4 mm to 8 mm

How to use

To use the Phoenix Contact wire connector, prepare a compatible cable with an outer diameter between 4 mm and 8 mm. Utilize the insulation displacement connection method for assembly, which allows the wires to be connected securely without prior stripping. Insert the wires into the designated positions according to the universal 4-position layout and secure the housing. Ensure the connector is properly aligned with the corresponding M12 port and tighten the zinc die-cast knurl to establish a firm and stable connection.

What to consider before purchase

  • Verify that your cable outer diameter falls within the 4 mm to 8 mm range
  • Check compatibility with standard M12 A-coded interfaces
  • Ensure the 4-position configuration matches your wiring requirements

Usage recommendations

For optimal performance and longevity, ensure that the cable outer diameter strictly matches the specified range and that the insulation displacement connection is properly seated during on-site assembly.
All features
Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
0.0147 kg
Certification:
IEC 61076-2-101
Material: The material from which a thing is or can be made e.g. wood, plastic.
Zinc
Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.
-25 - 80
Connector(s):
M12
Depth: The distance from the front to the back of something.
55 mm
Product colour: The colour e.g. red, blue, green, black, white.
Black, Stainless steel
Voltage:
250
Connector contacts plating: What the connector contacts are covered with (layer on top).
Nickel
Outer diameter:
18.4 mm
Current:
4 A
International Protection (IP) code: The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".
IP67
Quantity per pack:
1 pc(s)
Compliance certificates: Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
RoHS
