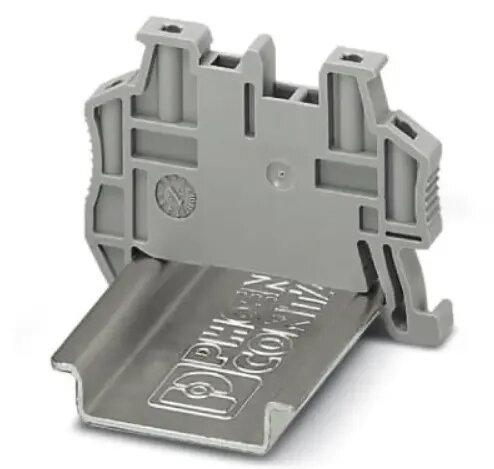

The Phoenix Contact CLIPFIX 35-5 End Bracket in grey is a reliable component manufactured from durable polyamide, designed to provide secure and stable mounting on standard DIN rails. Its primary function is to prevent terminal blocks and other modular electrical components from sliding or shifting within control panels and enclosures. Engineered with precision by Phoenix Contact, this end clamp ensures that all rail-mounted elements remain firmly in place, contributing to the overall safety and organization of industrial control systems and automation setups.
Advantages
This end bracket offers exceptional holding security on both NS 35/7.5 and NS 35/15 DIN rails, ensuring that modular assemblies stay securely positioned even in environments subject to vibration. The slim design allows for efficient use of rail space without compromising on mechanical stability. Additionally, the integrated large-surface labeling area simplifies component identification and circuit organization, while the convenient parking options for bridges and plugs help keep auxiliary accessories neatly stored and accessible during maintenance or installation.
Suitable for
- Securing terminal blocks on DIN rails in industrial control panels
- Organizing components within electrical enclosures and distribution boards
- Locking modular automation system elements in place
- Applications requiring space-saving end clamps with a width of approximately 5 mm
When it may not be suitable
This end bracket is not designed for mounting on DIN rail profiles other than NS 35/7.5 and NS 35/15, making it incompatible with smaller or non-standard rail sizes. It should not be used as a structural support for heavy non-modular equipment that exceeds standard electrical terminal block weights.
Key specifications
- Grey color
- Durable polyamide material
- Width of 5.15 mm
- Depth of 48.5 mm
- Height of 35 mm
- Compatible with NS 35/7,5 and NS 35/15 DIN rails

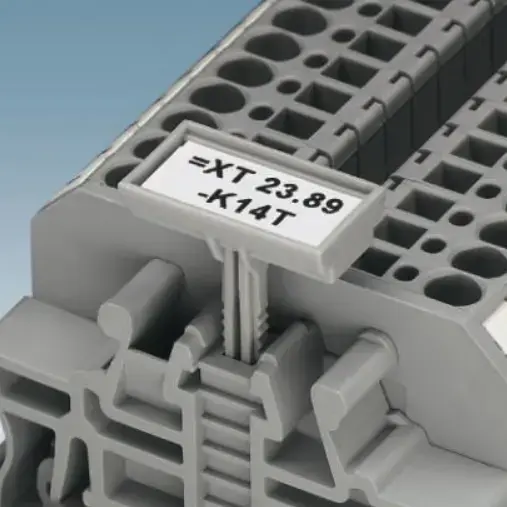

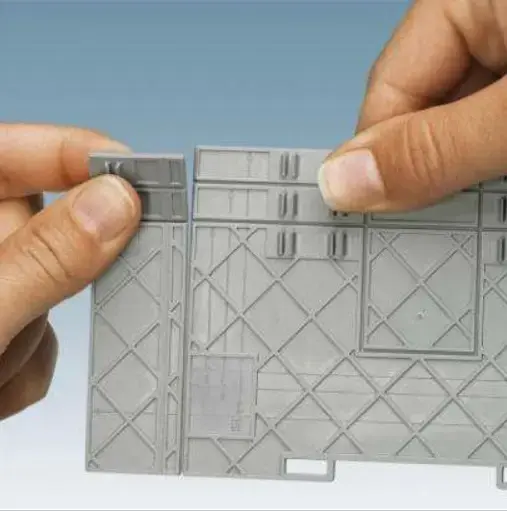

- Features large-surface labeling option
- Includes parking option for FBS and KSS accessories
How to use
To install the end bracket, position it directly onto the designated DIN rail behind the row of terminal blocks or modular components. Press the clamp downward onto the rail until it snaps securely into place, ensuring it abuts the terminal block assembly firmly to prevent lateral movement. To remove or reposition the component, use a standard screwdriver to release the locking mechanism from the rail and slide it to the desired location. Utilize the integrated labeling surface for marking and make use of the built-in parking options for compatible bridges and plugs as required during your wiring process.
What to consider before purchase
- Verify that your mounting setup utilizes standard NS 35/7.5 or NS 35/15 DIN rails
- Check the available rail space to ensure the 5.15 mm width fits your assembly layout
- Confirm compatibility with specific accessories such as FBS or KSS components if you intend to use the parking feature
Usage recommendations
Ensure that the DIN rail is clean and free of debris before snapping the end bracket into position to guarantee optimal mechanical retention. Always verify that the locking mechanism is fully engaged with the rail profile to prevent shifting under operational conditions.
