Phoenix Contact Plug-in Bridge FBS 2-8 2-pole Red Copper 10 pc(s) 3030284

The Phoenix Contact Plug-in Bridge FBS 2-8 is a reliable 2-pole bridging component designed specifically for electrical terminal blocks. Crafted from high-quality copper and finished in a distinct red color, this plug-in bridge ensures secure and efficient electrical connections within complex control cabinets and industrial wiring systems. Supplied in a pack of 10 pieces, it provides a practical solution for professional electrical installations requiring dependable power distribution.

Advantages

This bridging component offers exceptional electrical conductivity thanks to its robust copper construction, minimizing resistance across terminal connections. The standardized plug-in design allows for quick and secure installation within the terminal block shafts, significantly reducing wiring time during assembly. Its bright red color ensures high visibility within crowded control panels, facilitating easier maintenance, inspection, and circuit identification. Being part of a modular system, it integrates seamlessly to support structured and organized electrical layouts.

Suitable for

• Electrical wiring and power distribution in industrial control cabinets

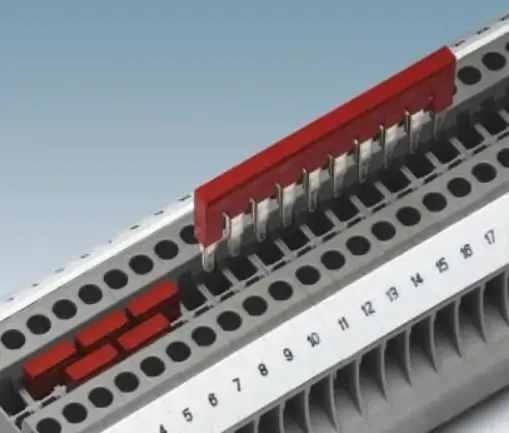

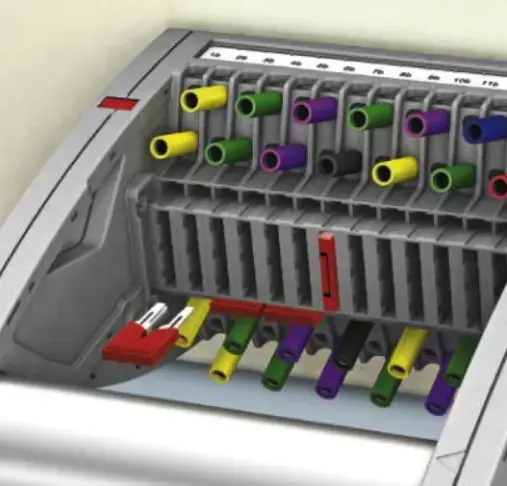

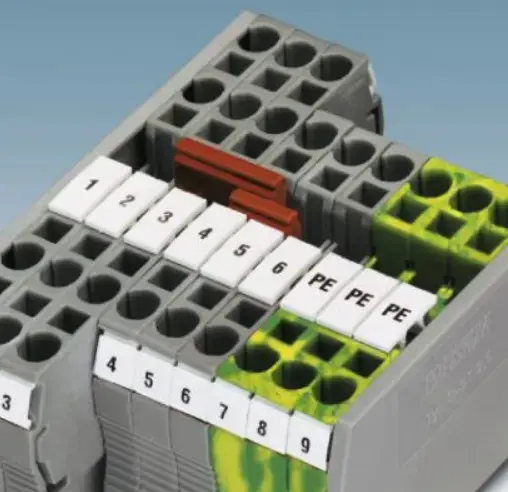

• Bridging adjacent terminal blocks within electrical systems
• Professional panel building and automation engineering
• Maintenance and expansion of existing terminal block setups

When it may not be suitable

This plug-in bridge is not suitable for terminal blocks with a pitch size different from 8.2 mm, as physical dimensions must match for proper installation. It should not be used for high-current applications exceeding the specific rating limits of the connected terminal blocks or for bridging across incompatible terminal systems.

Key specifications

• Number of positions: 2
• Pitch: 8.2 mm
• Width: 14.7 mm
• Depth: 8.2 mm
• Height: 29.6 mm
• Material: Copper
• Color: Red
• Quantity per pack: 10 pieces

How to use

To use the plug-in bridge, ensure the electrical system is completely powered off and safe to work on before installation. Align the 2-pole bridge with the designated bridge shafts of the compatible terminal blocks spaced at an 8.2 mm pitch. Firmly press the component downward into the terminal block shafts until it is fully seated and makes secure contact. Verify the mechanical stability and electrical continuity before restoring power to the system.

What to consider before purchase

• Verify that your existing terminal blocks are compatible with an 8.2 mm pitch plug-in bridge
• Check the required number of poles to ensure a 2-pole configuration matches your wiring scheme
• Confirm the quantity needed for your installation, noting that the package contains 10 pieces

Usage recommendations

Always adhere to local electrical safety standards, ensure power is disconnected during installation, and use only with compatible terminal blocks to guarantee a safe and reliable connection.
