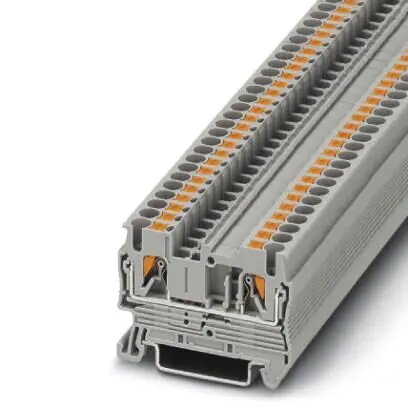

PHOENIX 3209510 Feed-Through Terminal Block Grey 800 V

The PHOENIX 3209510 feed-through terminal block in grey color is designed for secure electrical connections in industrial control panels and distribution systems. Featuring a rated voltage of 800 V and a nominal current of 24 A, this component ensures reliable performance in demanding electrical installations. Engineered for professional wiring solutions, it offers a compact and efficient build that integrates seamlessly into modern control cabinets.

Advantages

This terminal block utilizes a Push-in connection method that allows for easy and tool-free wiring of solid conductors or conductors with ferrules. Its compact design and front connection layout make it ideal for installation in confined spaces where traditional wiring methods might be difficult to apply. In addition to the testing facility located in the double function shaft, every terminal block is equipped with an additional test connection for convenient diagnostics. Furthermore, the unit is officially tested for railway applications, demonstrating its high durability and safety under rigorous operational conditions.

Suitable for

• Industrial control panels and electrical distribution systems
• Professional wiring in confined spaces
• Railway applications requiring high vibration resistance and reliability
• DIN rail mounted installations using NS 35/7,5 or NS 35/15 rails

When it may not be suitable

This product may not be suitable for applications requiring wire cross-sections outside the specified range of 0.14 mm² to 4 mm² (AWG 26 to 12). It is also not intended for direct use in high-moisture or unhoused outdoor environments without a proper protective enclosure.

Key specifications

• Rated voltage: 800 V
• Nominal current: 24 A
• Connection method: Push-in connection
• Number of connections: 2
• Number of positions: 1
• Conductor cross section: 0.14 mm² - 4 mm² (AWG 26 - 12)
• Width: 5.2 mm
• Depth: 48.5 mm
• Height: 35.3 mm
• Mounting type: NS 35/7,5 and NS 35/15 DIN rails
• Color: Gray

How to use

To use the terminal block, securely mount it onto a compatible NS 35/7,5 or NS 35/15 DIN rail inside your control panel. Prepare your conductor by stripping it to the appropriate length or attaching a ferrule if using stranded wire. Insert the solid or ferruled conductor directly into the Push-in connection point without the need for tools until it is firmly locked in place. Utilize the integrated test points for electrical testing and diagnostics during maintenance or commissioning.

What to consider before purchase

• Verify that the conductor cross-section falls within the 0.14 mm² to 4 mm² range
• Check that the 800 V rated voltage and 24 A current match your electrical system requirements
• Ensure you have compatible NS 35/7,5 or NS 35/15 DIN rails for mounting

Usage recommendations

Always disconnect the power supply before installing, wiring, or servicing the terminal block to prevent electrical shock or equipment damage.
