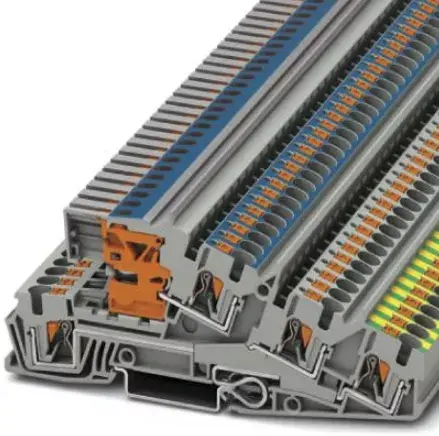

PHOENIX 3214047 Terminal Block Grey PTI 4-PE/L/NT 0,2qmm - 6qmm

The PHOENIX 3214047 grey terminal block, model PTI 4-PE/L/NT, is designed for secure and efficient electrical installations. It supports conductor cross-sections from 0,2qmm to 6qmm and is ideal for professional electrical panel building and distribution systems, ensuring reliable connections, neat wiring, and optimal space utilization in industrial and commercial applications.

Advantages

The installation protective conductor terminal features a modern Push-in connection technology that allows for quick and tool-free insertion of rigid conductors as well as flexible conductors with ferrules. Its compact width of 6.2 mm helps save valuable space on DIN rails. The grey housing supports clear circuit organization, while the integrated PE, L, and NT functional levels facilitate multi-conductor management within a single terminal block footprint.

Suitable for

• Electrical panel building and control cabinet manufacturing
• Commercial and industrial power distribution systems
• Wiring setups requiring protective conductor, phase, and neutral connections
• Installations using standard NS 35/7,5 and NS 35/15 mounting rails

When it may not be suitable

This terminal block is not designed for conductor cross-sections outside the supported 0.2 mm² to 6 mm² range. It may also be unsuitable for environments requiring specialized high-amperage industrial power distribution exceeding its rated electrical parameters.

Key specifications

• Rated voltage: 400V
• Rated current: 32A
• Conductor cross-section: 0.2 mm² to 6 mm²
• AWG range: 24 to 10
• Connection method: Push-in connection
• Width: 6.2 mm
• Color: Gray
• Mounting type: NS 35/7,5 and NS 35/15

How to use

Mount the terminal block securely onto a compatible DIN rail such as NS 35/7,5 or NS 35/15 inside the control cabinet. Prepare the insulated copper conductors by stripping them to the recommended length. Insert solid wires or stranded wires with ferrules directly into the Push-in connection point until fully seated. Ensure the connection is secure before applying system power.

What to consider before purchase

• Verify that your conductor cross-sections fall within the 0.2 mm² to 6 mm² range
• Check that the 400V voltage and 32A current ratings match your system requirements
• Ensure compatible DIN rail types are available in your enclosure

Usage recommendations

Always disconnect power from the electrical system before installing, wiring, or servicing the terminal block. Ensure that all conductors are properly stripped and inserted securely to maintain a reliable and safe connection.
