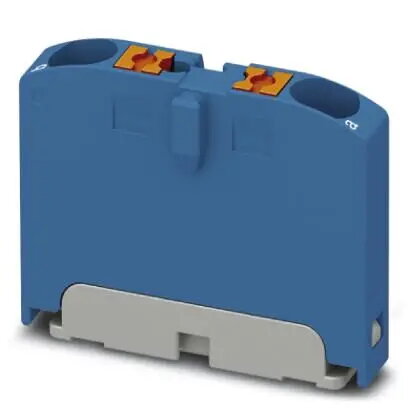

Phoenix Contact 1028068 PTFIX 2X2,5 Distribution Block, Blue, 50 Pieces

The Phoenix Contact PTFIX 2X2,5 distribution block is a high-quality electrical component designed to streamline power distribution and cable management in industrial control cabinets. This compact blue terminal block facilitates efficient wiring through its reliable Push-in connection technology, allowing for quick and secure conductor termination without the need for specialized tools. With a width of 5.2 mm and a height of 21.7 mm, this block is engineered to maximize space efficiency within electrical enclosures.

Advantages

This distribution block offers significant time savings during installation due to its tool-free Push-in direct connection system. The design supports clear and organized wiring, which is further enhanced by the distinct blue color for easy identification. Its versatility is a key benefit, as it supports multiple installation methods including DIN rail mounting, direct mounting, or adhesive mounting. Furthermore, the block allows for up to 50% space savings on the DIN rail when mounted transversely, making it an ideal choice for dense control cabinet configurations.

Suitable for

• Industrial control cabinet wiring
• Power distribution in electrical installations
• Organized cable management systems
• Applications requiring high-density component mounting

When it may not be suitable

This distribution block is designed for specific conductor cross-sections ranging from 0.14 mm² to 4 mm². It may not be suitable for applications involving heavy-duty power cables that exceed these dimensions or for environments requiring specialized high-voltage insulation beyond the rated 690 V.

Key specifications

• Nominal voltage: 690 V
• Nominal current: 24 A
• Connection method: Push-in connection
• Number of connections: 2
• Cross section range: 0.14 mm² to 4 mm² (AWG 26 - 12)
• Dimensions: 5.2 mm width, 21.7 mm height
• Mounting type: DIN rail adapter, direct, or adhesive

How to use

To use the Phoenix Contact PTFIX 2X2,5, first determine the desired mounting method, such as snapping it onto a compatible DIN rail adapter or using direct adhesive mounting. Once the block is secured, insert the stripped conductor directly into the Push-in connection point. The internal spring mechanism will automatically secure the wire, ensuring a reliable electrical contact. To release the conductor, use a standard screwdriver to actuate the release mechanism.

What to consider before purchase

• Ensure the conductor cross-section is within the 0.14 mm² to 4 mm² range.
• Verify that the 24 A current rating meets your circuit requirements.
• Confirm the mounting space available in your control cabinet.
• Check if additional accessories like DIN rail adapters are required for your specific setup.

Usage recommendations

For optimal performance and safety, ensure that all conductors are stripped to the appropriate length before insertion. Regularly inspect connections in high-vibration environments to maintain system integrity.
