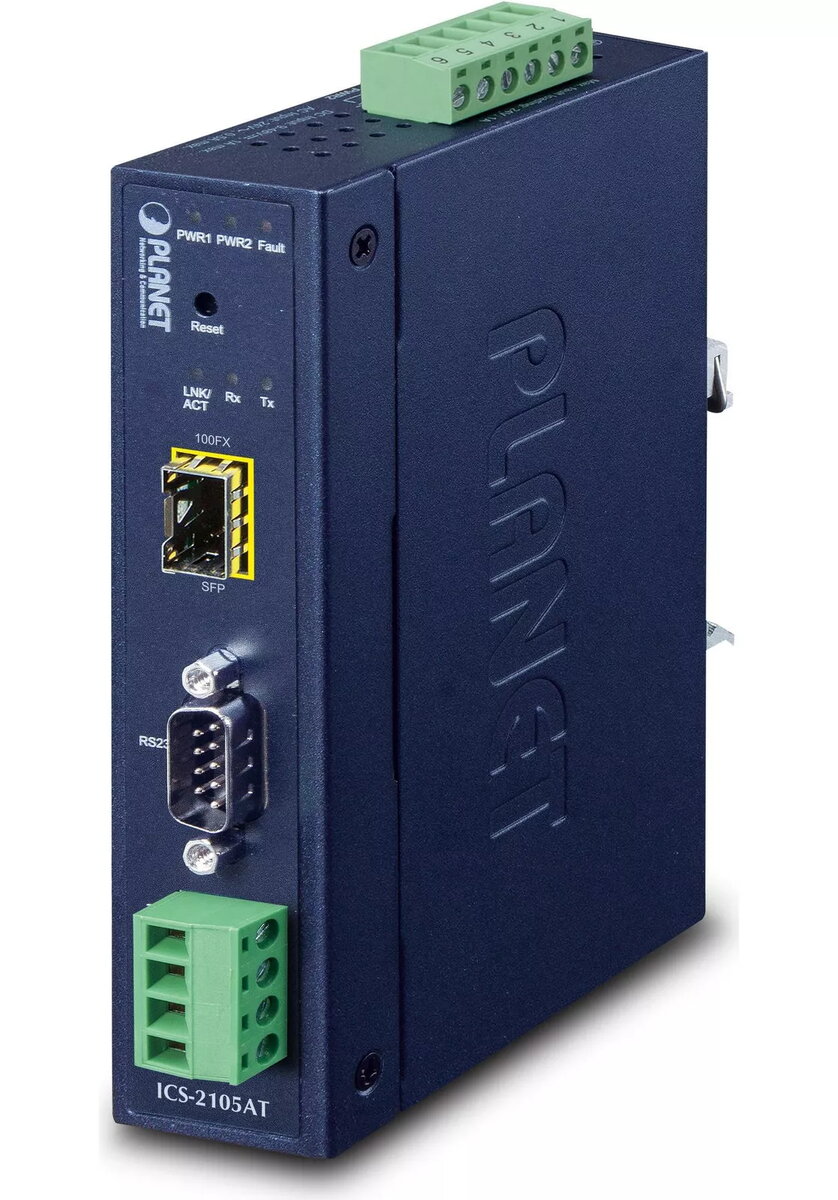

PLANET IP30 Industrial 1-Port Serial Server Blue 390g 32x87.8x135mm

The PLANET IP30 Industrial 1-Port Serial Server (model ICS-2105AT) converts RS232/RS422/RS485 serial communication into Industrial Fast Ethernet (100BASE-FX) to integrate serial devices into a TCP/IP network without replacing existing hardware or software. The compact metal IP30 housing supports DIN-rail or wall mounting and the device accepts wide-range power inputs (9–48V DC or 24V AC). One fiber port (SC or LC, single-mode or multi-mode) extends connection distances from approximately 2 km up to 60 km depending on fiber type. The unit is designed for industrial environments with an operating temperature range of -40 to 75 °C and built-in protection against electromagnetic interference and electrical surges.

Advantages

The ICS-2105AT provides a cost-effective method to add Ethernet connectivity to serial equipment while preserving existing serial devices and software. Its fiber interface enables long-distance deployment, and multiple remote management options (Web, Telnet, VCOM) simplify monitoring and configuration. The rugged metal enclosure, wide temperature range, and surge/EMI immunity support stable operation in harsh environments. Dual power input increases system availability through automatic hardware failover.

Suitable for

• Connecting serial devices (RS232/RS422/RS485) to an Ethernet network
• Long-distance serial link extension via 100BASE-FX fiber
• Industrial automation cabinets, traffic control and remote telemetry
• Environments requiring DIN-rail or wall-mounted compact serial servers

Key specifications

• Model: ICS-2105AT (PLANET IP30 Industrial 1-Port Serial Server)
• Serial interfaces: RS232 / RS422 / RS485 (1 port)
• Fiber: 100BASE-FX single-mode / multi-mode (SC or LC connector options)
• Power input: 9–48V DC or 24V AC, dual power input support
• Operating temperature: -40 to 75 °C
• Dimensions: 32 x 87.8 x 135 mm; Weight: 390 g
• Case: IP30 metal, DIN-rail or wall mount
• EAN: 4711605285117; MPN: ICS-2105AT

How to use

Install the serial server on a DIN rail or mount it on the wall using the integrated IP30 metal case. Connect the serial device to the appropriate RS232/RS422/RS485 port and attach the fiber cable (SC or LC) to the 100BASE-FX interface selected for your deployment distance. Provide power using one or both supported sources (9–48V DC or 24V AC); the device will switch automatically to the secondary input if the primary fails. Configure network parameters and serial-to-Ethernet settings via the Web, Telnet, or VCOM management interfaces to integrate the device into your TCP/IP network.

Usage recommendations

For reliable long-distance connections, choose multi-mode fiber for runs around 2 km and single-mode fiber for distances up to 60 km or more. Use both power inputs when redundancy is required, and configure alarm notifications to receive alerts on power or connection faults.
