PLANET IP30 DIN-rail Industrial L3 Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Blue, Grey

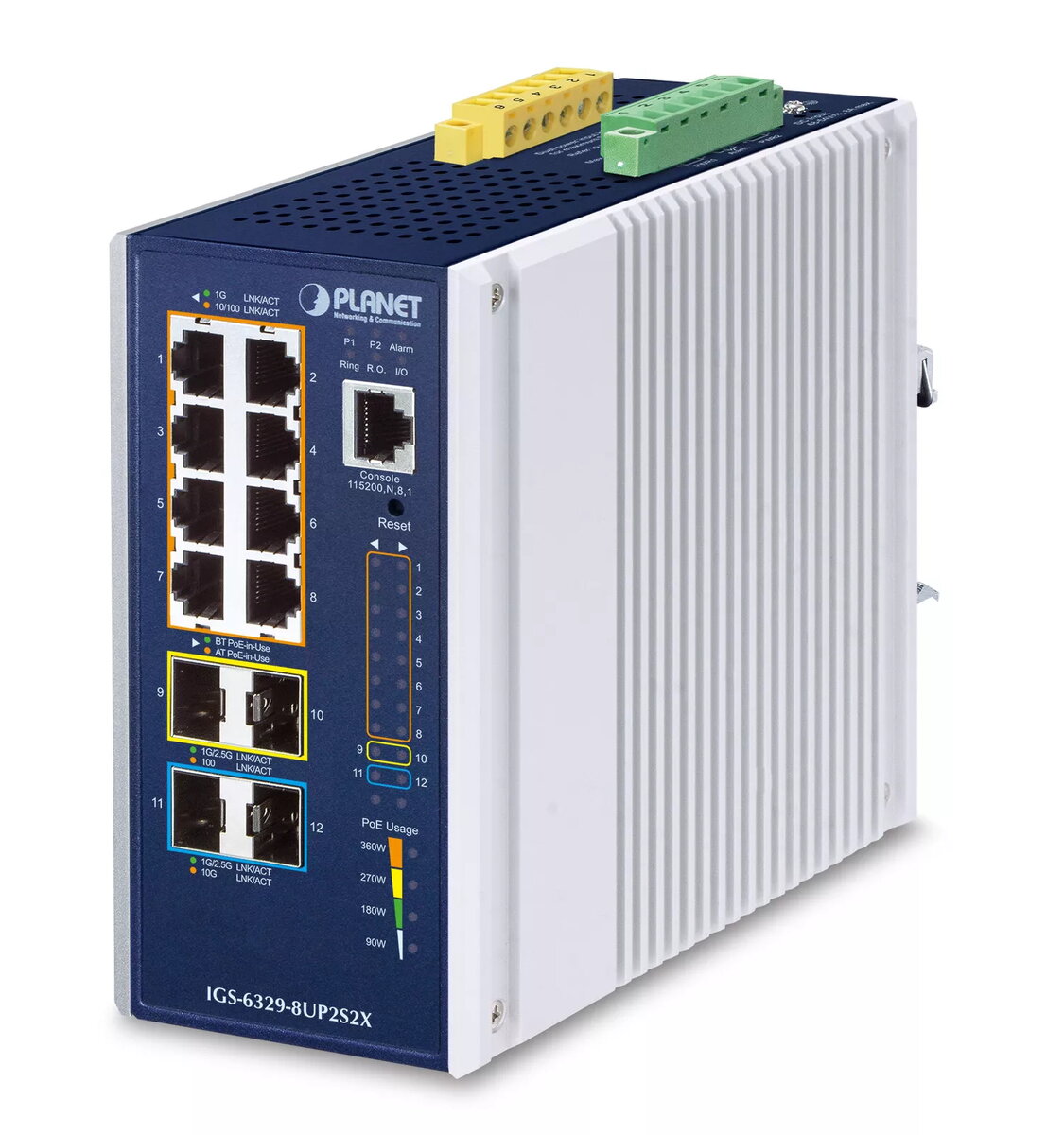

PLANET IGS-6329-8UP2S2X is an IP30 DIN-rail L3 managed Gigabit Ethernet switch with integrated Power over Ethernet (PoE) capabilities. Housed in a rugged metal enclosure for industrial use, the device provides eight 10/100/1000BASE-T ports with IEEE 802.3bt PoE++ support, two 100/1000/2500BASE-X SFP ports and two 10G SFP+ ports. Designed for harsh environments, it meets heavy industrial EMC standards and railway certification, supports wide operating temperatures and offers flexible mounting options for cabinet, DIN-rail or wall installations.

Advantages

The switch delivers up to 90–95 W per port via 4-pair IEEE 802.3bt/PoH PoE++ and supports multiple PoE output modes to accommodate varied powered devices. Layer 3 routing, industrial-grade redundancy and rapid recovery technologies reduce downtime in critical networks. Management and security features include Web/CLI/SNMPv3 interfaces, SSH/TLS protection, ONVIF device discovery for surveillance integration and comprehensive Layer 2–4 ACLs for traffic control. Additional industrial features include digital input/output for external alarms, Modbus TCP support for factory automation and SFP DDM monitoring for transceiver diagnostics.

Suitable for

• Powering and connecting PoE PTZ cameras and remote surveillance systems
• Supplying PoE power to AIO touch PCs, POS systems and digital signage
• Industrial network backbone with L3 routing, redundancy and fast recovery
• Factory automation integration with Modbus TCP and DI/DO alarm signaling
• Telecom and carrier Ethernet applications requiring 1588 timing support

Key specifications

• Ports: 8 × 10/100/1000BASE-T with IEEE 802.3bt PoE++, 2 × 100/1000/2500BASE-X SFP, 2 × 10G SFP+
• PoE power per port: up to 90 W (802.3bt) or up to 95 W (PoH / UPOE mode)
• PoE modes: 90W 802.3bt, 95W PoH/UPOE, 60W force, 30W end-span, 30W mid-span
• Switching capacity: 60 Gbit/s; MAC address table: 32,000 entries; full duplex
• Industrial certifications: heavy industrial EMC and EN 50121-4 railway compliance
• Operating temperature range: -40 to 75 °C
• Mounting: DIN-rail and wall mountable; IP30 metal housing
• Redundancy and recovery: ERPS (G.8032), MSTP (802.1s), rapid ring recovery (~10 ms in simple ring)
• Routing: Layer 3 IPv4/IPv6 static routing, RIP and OSPF support
• Security: SSHv2, TLS 1.2, SNMPv3, 802.1X, DHCP snooping, IP Source Guard, DAI
• Management: Web GUI, console, Telnet, SNMP; ONVIF discovery and floor plan upload
• Other industrial features: DI/DO for external alarm, Modbus TCP, 1588 timing, SFP-DDM

How to use

Install the switch on a DIN-rail or mount it on a wall inside an appropriate enclosure to protect it from physical hazards. Connect uplink links using SFP/SFP+ transceivers appropriate for the required distance and speed, and attach end devices to the Gigabit Ethernet PoE ports with Cat5e/6 cables. Configure Layer 3 and PoE settings via the Web GUI, console or SNMP interface: set VLANs, routing (static/RIP/OSPF), PoE power modes and schedules, and enable security features such as SSH/TLS and SNMPv3. Use the ONVIF discovery function to detect IP cameras and upload floor plans for device location mapping. Configure DI/DO behavior and Modbus TCP integration for automation monitoring where required.

Usage recommendations

For stable PoE delivery, use certified Cat5e or Cat6 cabling and verify device compatibility when selecting PoE modes (802.3bt, PoH or force modes). Plan PoE budgets and schedules to avoid power overcommitment and enable PoE schedule or power recycling to reduce energy consumption and automate periodic device reboots. When deploying in noisy industrial environments, enable security protocols (SSHv2, TLS1.2, SNMPv3) and redundant ring features to improve resilience.
