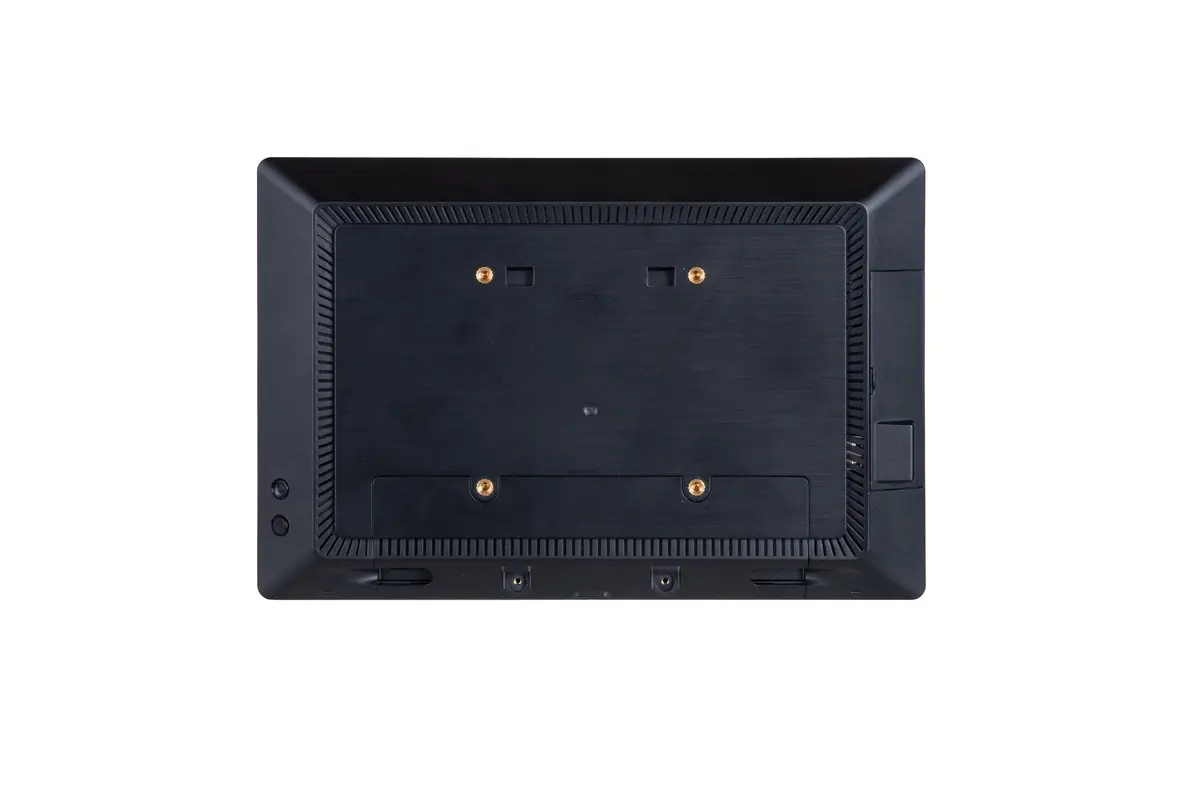

ProDVX APPC-10SFA All-in-One PC 10.1" IPS Touchscreen Rockchip 2 GHz 4 GB RAM 16 GB eMMC Android 13 Black

AC adapter output current:

2 A

Maximum internal memory: The maximum internal memory which is available in the product.

8 GB

Total storage capacity: The total amount of data that can be stored on the device.

16 GB

Total megapixels: A megapixel (MP or Mpx) is one million pixels, and is a term used not only for the number of pixels in an image, but also to express the number of image sensor elements of digital cameras or the number of display elements of digital displays. For example, a camera that makes a 2048 × 1536 pixel image typically uses a few extra rows and columns of sensor elements and is commonly said to have "3.2 megapixels" or "3.4 megapixels", depending on whether the number reported is the "effective" or the "total" pixel count (as opposed to the 2048 × 1536 = 3,145,728 finished image pixels).

5 MP

Wi-Fi ready:

Yes

Storage media: Used for the storage of data e.g. HDD (hard disk drive), SSD (solid-state drive).

eMMC

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: Number of USB 3.1 (3.1 Gen 2) ports with Type-C connector. USB 3.1 (3.1 Gen 2) is USB interface version which supports transfer rate up to 10 Gbit/s (SuperSpeed+). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface.

0

Discrete graphics card:

No

On-board graphics card family:

ARM Mali

USB4 Gen 3x2 ports quantity:

0

On-board GPU manufacturer:

ARM

AI datatype support on NPU:

BFP16, FP16, INT16, Int8

AI software frameworks supported by NPU:

Android NN, Caffe, Onnx, Pytorch, TensorFlow, Tflite

NPU performance up to:

1 TOPs

Neural processor unit (NPU):

RockChip NPU

Other features

Battery type: Description of battery supplied with the product, such battery form factor (e.g. AA/AAA).

CR1220 Lithium metal, non rechargeable

Near Field Communication (NFC):

Yes

Built-in camera: The product has an integrated camera.

Yes

Internal memory type: The type of internal memory such as RAM, GDDR5.

LPDDR4-SDRAM

Built-in microphone: Microphone that is found inside the product.

Yes

Optical drive type: An optical drive uses laser to read optical discs such as CDs, DVDs and Blu-Ray. Some types of optical drive are: CD ROM drive, CR-RW (CD writer) drive, DVD-ROM.

No

Audio output: The type of audio output that the device produces, and the connector(s).

Yes

Bluetooth: Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.

No

USB 2.0 ports quantity: Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.

2

Backlight type:

Edge LED

Other features:

Motion Radar Sensor

On-board graphics card: Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing.

Yes

Weight (without stand):

600 g

Height (without stand):

159.7 mm

Depth (without stand):

24.4 mm

Brand specific technologies:

AI-Q Engine, ClearFrame Design, FusionTouch Technology, ProSecure, SLB-Lumi Technology

Technical details

Compliance certificates: Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.

Federal Communications Commission (FCC), CE, RoHS, REACH, UKCA

Thin Client

Processor cores: The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores).

4

Operational conditions

Storage relative humidity (H-H):

10 - 90

Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.

-10 - 55

Operating relative humidity (H-H):

10 - 90

Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.

0 - 40

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

0.6 kg

Width (without stand):

240.9 mm

Power

AC adapter output voltage:

12

Power consumption (typical): Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.

23 W

Ergonomics

Wall mountable: The product can be mounted on (attached to ) a wall.

Yes

VESA mounting:

Yes

Network

Wi-Fi: Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.

No

Ethernet LAN data rates: The different speed levels of the Ethernet LAN connection.

1000, 100, 10

Ethernet LAN: An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.

Yes

Ports & interfaces

DC-in jack: The socket/plug where the DC electricity supply connects to the device.

Yes

Compatible memory cards: Types of memory cards which can be used with this product.

SD

Card reader integrated: A card reader is a device that enables reading and, in some cases, writing data to and from a memory card.

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: Number of USB 3.0 (3.1 Gen 1) ports with Type-C connector. USB 3.0 (3.1 Gen 1) is USB interface version which supports transfer rate up to 5 Gbit/s (SuperSpeed). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface.

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:

1

Mini HDMI ports quantity: The new HDMI mini connector, next to the regular HDMI connector, is designed to be used with small portable devices such as camcorders and digital still cameras.

1

HDMI ports quantity: The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.

1

Design

Panel mounting interface: The product can be used wih VESA mounting interfaces.

75 x 75

Housing material: What the casing of the product is made of.

ABS synthetics

Product colour: The colour e.g. red, blue, green, black, white.

Black

Computer system

Audio formats supported: The audio formats which this device or software can read/use e.g. MP3, MP4.

AAC, ASF, MP2, OGG, WAV, WMA

Video formats supported: The type of video formats that can be used by this device.

H.264, MP4, MPEG2, MPEG4, MPG

Operating system installed: Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices.

Android 13

Discrete graphics card model: A graphics adapter (often known as a video card) generates images for a display. A discrete graphics adapter plugs into the motherboard, and usually produces much better graphics than an integrated graphics adapter. There are various models of discrete graphics adapters.

Not available

On-board graphics card model: "Graphic adapter" is the hardware that produces images on a display. "On-board" means that the graphics adapter is intergrated inside the motherboard.

ARM Mali-G52

Internal memory: A computer's memory which is directly accessible to the CPU.

4 GB

Processor frequency: The speed that the microprocessor executes each instruction or each vibration of the clock. The CPU requires a fixed number of clock ticks, or cycles, to execute each instruction. The faster the clocks rate, the faster the CPU, or the faster it can execute instructions. Clock Speeds are usually determined in MHz, 1 MHz representing 1 million cycles per second, or in GHz, 1 GHz representing 1 thousand million cycles per second. The higher the CPU speed, the better a computer will perform.

2 GHz

Processor model: The model number for the processor in a computer.

RK3568

Processor family: A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors.

Rockchip

Processor manufacturer: The manufacturer that produced the processor.

Rockchip

Performance

Mean time between failures (MTBF): Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.

50000 h

Audio

RMS rated power: RMS (Root mean square) is a measure of the continuous power required by a device, in particular audio amplifiers and loudspeakers.

4 W

Built-in speaker(s): The device contains speaker(s) to produce sound.

Yes

Number of speakers: The quantity of speakers included in/with the product.

2

Display

Product type: The sub-category of the product.

All-in-One PC

Viewing angle, vertical: Maximum vertical angle at which a display can be viewed with acceptable visual performance.

160 °

Viewing angle, horizontal: Maximum horizontal angle at which a display can be viewed with acceptable visual performance.

160 °

Contrast ratio (typical): The difference in light intensity between the brightest white and the darkest black.

1000:1

Native aspect ratio: The aspect ratio is the ratio of the width of an image to its height. The native aspect ratio is the one which the projector/display is particularly designed for. Images shown in native aspect ratio will utilize the entire resolution of the display and achieve maximum brightness. Images shown in other than native aspect ratio will always have less resolution and less brightness than images shown in native aspect ratio.

16:10

Touchscreen: A screen of a laptop, smartphone, etc., that responds to touch so you can control the interface using your fingers.

Yes

Anti-glare screen: Always gives an optimal view, even in direct sunlight.

Yes

Display surface:

Matt

Display brightness: Brightness is the amount of radiating light emitted from the screen. The brightness rating is measured in candellas per square meter, commonly known as 'nits'.

450 cd/m²

Touch technology: Technology of touch sensetive screen e.g. dual-touch.

Multi-touch

Panel type:

IPS

HD type: Type of supported High Definition (e.g. Full HD, 4K Ultra HD).

HD

LED backlight: A backlight is a form of illumination used in liquid crystal displays (LCDs). One type of backlight is made by LEDs, which can be either white or RGB (red green blue). White LEDs are used most often in notebooks and desktop screens, and in virtually all mobile LCD screens. RGB LEDs for backlighting are found in high-end color proofing displays such as HP DreamColor LP2480zx monitor or selected HP EliteBook notebooks, as well as newer consumer grade displays such as Dell's Studio series laptops which have an optional RGB LED display.

Yes

Display diagonal: Size of the display for this product, measured diagonally, usually in inches.

10.1 "

Display resolution: The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image.

1280 x 800
