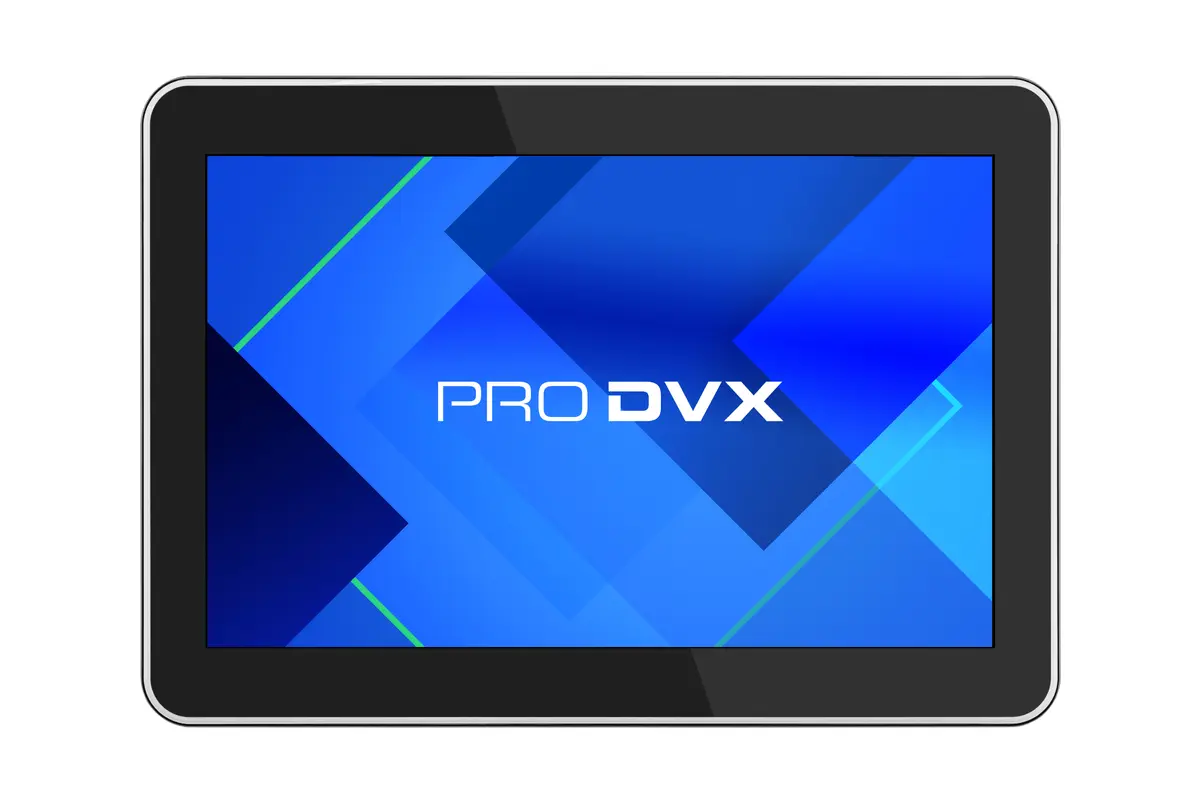

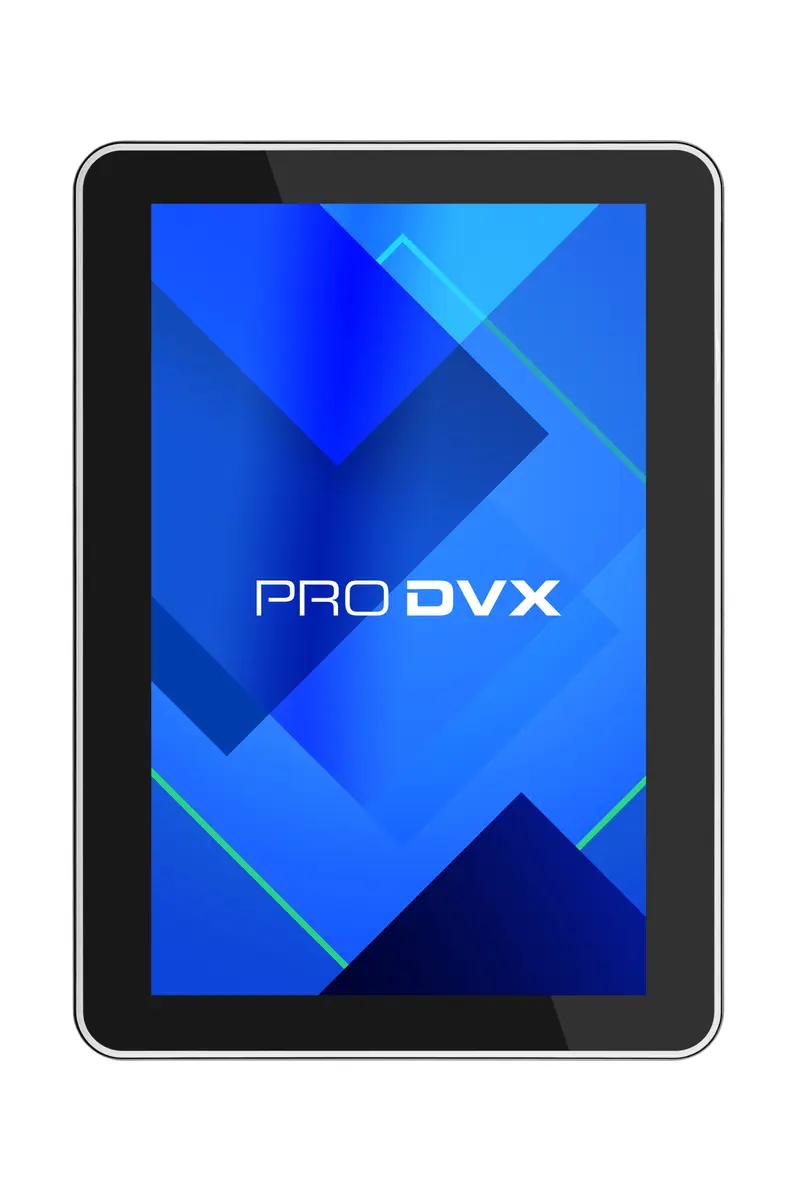

ProDVX APPC-10SLBe (R24-7701)

AC adapter output current:

2 A

Total storage capacity: The total amount of data that can be stored on the device.

16 GB

Backlight: Product has a built-in light source for its illuminating.

Yes

Storage media: Used for the storage of data e.g. HDD (hard disk drive), SSD (solid-state drive).

eMMC

Top Wi-Fi standard: Connection of this device is done via Wi-Fi in a high standard.

Wi-Fi 4 (802.11n)

Discrete graphics card:

No

On-board graphics card family:

ARM Mali

On-board GPU manufacturer:

ARM

Logistics data

Harmonized System (HS) code:

84713000

Technical details

Compliance certificates: Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.

Federal Communications Commission (FCC), CE, RoHS, REACH, UKCA

Thin Client

Processor cores: The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores).

6

Other features

Battery type: Description of battery supplied with the product, such battery form factor (e.g. AA/AAA).

CR1220 Lithium metal, non rechargeable

Near Field Communication (NFC):

Yes

Built-in camera: The product has an integrated camera.

No

Internal memory type: The type of internal memory such as RAM, GDDR5.

DDR4-SDRAM

Built-in microphone: Microphone that is found inside the product.

Yes

Bluetooth version: The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0).

4.2

AC adapter included:

No

Audio output: The type of audio output that the device produces, and the connector(s).

Yes

Bluetooth: Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.

Yes

USB 2.0 ports quantity: Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.

1

Backlight type:

Edge LED

On-board graphics card: Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing.

Yes

Weight (without stand):

650 g

Height (without stand):

181 mm

Depth (without stand):

26.7 mm

Certificates

Certification:

FCC, CE, RoHS

Operational conditions

Storage relative humidity (H-H):

10 - 90

Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.

-10 - 55

Operating relative humidity (H-H):

10 - 90

Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.

0 - 40

Packaging content

Cables included:

No

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

0.65 kg

Width (without stand):

255.3 mm

Power

AC adapter output voltage:

12

Power consumption (typical): Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.

20 W

Ergonomics

Wall mountable: The product can be mounted on (attached to ) a wall.

Yes

VESA mounting:

Yes

Network

Wi-Fi standards: The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.

802.11b, 802.11g, Wi-Fi 4 (802.11n), 802.11a

Wi-Fi: Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.

Yes

Ethernet LAN data rates: The different speed levels of the Ethernet LAN connection.

1000, 100, 10

Ethernet LAN: An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.

Yes

Ports & interfaces

DC-in jack: The socket/plug where the DC electricity supply connects to the device.

Yes

Compatible memory cards: Types of memory cards which can be used with this product.

SD

Card reader integrated: A card reader is a device that enables reading and, in some cases, writing data to and from a memory card.

Yes

Ethernet LAN (RJ-45) ports: Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

1

DisplayPorts quantity: Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data.

1

HDMI output ports quantity:

1

Micro-USB ports quantity:

1

HDMI ports quantity: The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.

1

Design

Panel mounting interface: The product can be used wih VESA mounting interfaces.

75 x 75

Housing material: What the casing of the product is made of.

ABS synthetics

Product colour: The colour e.g. red, blue, green, black, white.

Black

Computer system

Audio formats supported: The audio formats which this device or software can read/use e.g. MP3, MP4.

AAC, ASF, MP2, OGG, WAV, WMA

Video formats supported: The type of video formats that can be used by this device.

3GP, ASF, AVI, DAT, FLV, MKV, MOV, MP4, MPG, RM, TS, VOB, WMV

Operating system installed: Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices.

Android 13

Discrete graphics card model: A graphics adapter (often known as a video card) generates images for a display. A discrete graphics adapter plugs into the motherboard, and usually produces much better graphics than an integrated graphics adapter. There are various models of discrete graphics adapters.

Not available

On-board graphics card model: "Graphic adapter" is the hardware that produces images on a display. "On-board" means that the graphics adapter is intergrated inside the motherboard.

ARM Mali-T860 MP4

Internal memory: A computer's memory which is directly accessible to the CPU.

4 GB

Processor model: The model number for the processor in a computer.

RK3399

Processor family: A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors.

Rockchip

Processor manufacturer: The manufacturer that produced the processor.

Rockchip

Performance

Mean time between failures (MTBF): Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.

45000 h

Display

Product type: The sub-category of the product.

All-in-One tablet PC

Viewing angle, vertical: Maximum vertical angle at which a display can be viewed with acceptable visual performance.

160 °

Viewing angle, horizontal: Maximum horizontal angle at which a display can be viewed with acceptable visual performance.

160 °

Contrast ratio (typical): The difference in light intensity between the brightest white and the darkest black.

800:1

Multi-touch:

Yes

Touchscreen: A screen of a laptop, smartphone, etc., that responds to touch so you can control the interface using your fingers.

Yes

Anti-glare screen: Always gives an optimal view, even in direct sunlight.

Yes

Display brightness: Brightness is the amount of radiating light emitted from the screen. The brightness rating is measured in candellas per square meter, commonly known as 'nits'.

500 cd/m²

Touch technology: Technology of touch sensetive screen e.g. dual-touch.

Multi-touch

Panel type:

IPS

LED backlight: A backlight is a form of illumination used in liquid crystal displays (LCDs). One type of backlight is made by LEDs, which can be either white or RGB (red green blue). White LEDs are used most often in notebooks and desktop screens, and in virtually all mobile LCD screens. RGB LEDs for backlighting are found in high-end color proofing displays such as HP DreamColor LP2480zx monitor or selected HP EliteBook notebooks, as well as newer consumer grade displays such as Dell's Studio series laptops which have an optional RGB LED display.

Yes

Display diagonal: Size of the display for this product, measured diagonally, usually in inches.

10.1 "

Native aspect ratio: The aspect ratio is the ratio of the width of an image to its height. The native aspect ratio is the one which the projector/display is particularly designed for. Images shown in native aspect ratio will utilize the entire resolution of the display and achieve maximum brightness. Images shown in other than native aspect ratio will always have less resolution and less brightness than images shown in native aspect ratio.

16:10

Display resolution: The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image.

1280 x 800

Audio

RMS rated power: RMS (Root mean square) is a measure of the continuous power required by a device, in particular audio amplifiers and loudspeakers.

4 W

Built-in speaker(s): The device contains speaker(s) to produce sound.

Yes

Number of speakers: The quantity of speakers included in/with the product.

2
