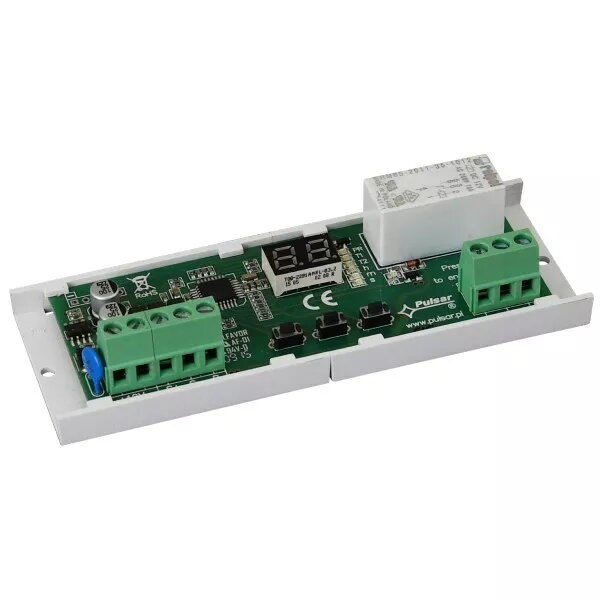

Timer relay module PULSAR AWZ516, 16 A, 230 V

PULSAR AWZ516 is a timer relay module designed to switch electrical circuits with a maximum load of 16 A at 230 V. The compact, DIN-rail mountable unit provides scheduled on/off control for lighting, heating, ventilation and other household or light-commercial appliances. Built for installations where reliable timed control is required, the module integrates into standard electrical distribution boards and supports repeatable timing cycles for daily or weekly automation tasks.

Advantages

The module combines a slim DIN-rail form factor with a clear functional layout that simplifies installation and wiring. Rated for 16 A at 230 V, it can handle typical lighting and small heating or ventilation loads without additional contactors. Its adjustable timing functions enable accurate control of switching intervals and reduce manual intervention. The device is designed for stable operation in residential and light-commercial electrical environments and helps organize scheduled operation of connected equipment.

Suitable for

• Timed control of indoor and outdoor lighting (porches, corridors, signage)
• Scheduled operation of small heating or circulation systems
• Ventilation and extractor fans with intermittent schedules
• Automation of pumps and timers in small installations
• Basic time-based control in homes, offices and small shops

Key specifications

• Supply and switching voltage: 230 V AC
• Maximum switching current: 16 A
• Mounting type: DIN-rail (EN standard rail)
• Function: timer relay for scheduled on/off switching
• Typical applications: lighting, heating, ventilation control
• Compact footprint for installation in distribution boards

How to use

Mount the PULSAR AWZ516 on a standard DIN rail inside the distribution board and wire the supply and load according to the electrical diagram provided by the manufacturer. Set the required timing parameters using the module's controls or switches, then test the switching cycle with the connected load to verify correct operation. Ensure the module is installed by a qualified electrician and that the connected load does not exceed the 16 A rating.

Usage recommendations

Use the timer relay for loads within its rated capacity and avoid switching inductive loads above the specified current without an appropriate contactor. For reliable long-term performance, install the module in a clean, dry enclosure with adequate ventilation and follow local electrical codes and safety practices.
