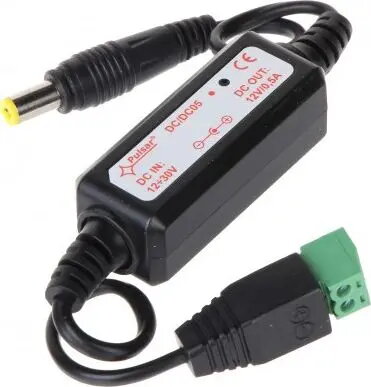

DC/DC converter module PULSAR DC/DC05

PULSAR DC/DC05 is a compact DC/DC converter module designed to convert and regulate direct current between different voltage levels. As a power electronics module from PULSAR, it delivers a stable DC output suitable for integration into control panels, automotive and industrial electronics, and other low-voltage systems where reliable voltage conversion and regulation are required. The module's compact form factor makes it appropriate for embedded applications and space-constrained installations.

Advantages

The module provides consistent voltage regulation and electrical isolation appropriate for many embedded and industrial uses. Its compact design enables installation in tight spaces while providing reliable performance under typical operating conditions. The converter is intended to reduce power supply complexity by offering a dedicated regulated output from a DC input source, supporting system stability and protecting downstream electronics from input voltage fluctuations.

Suitable for

• Embedded control panels and automation systems
• Automotive low-voltage electronics and accessory circuits
• Industrial instrumentation and sensor power supplies
• Prototyping and electronic modules integration

Key specifications

• Function: DC-to-DC voltage conversion and regulation
• Form factor: compact module suitable for embedding in control enclosures
• Output: regulated DC output suitable for powering low-voltage circuits
• Input: designed for DC input voltage sources (check product documentation for exact input range)
• Use environment: intended for automotive, industrial, and general low-voltage electronic applications

How to use

Install the PULSAR DC/DC05 module according to the electrical and mounting recommendations provided in the product documentation. Connect the DC input to a suitable power source with correct polarity and rated voltage, and route the regulated DC output to the load or downstream circuitry. Ensure secure mechanical mounting and appropriate wiring practices to avoid loose connections. Verify the converter's output voltage with a multimeter before connecting sensitive electronics.

Usage recommendations

Ensure that the input voltage remains within the module's specified range and that the output current does not exceed the converter's rated capacity. Provide adequate cooling and avoid placing the module near high-temperature components. Refer to the manufacturer's technical documentation for detailed installation, input/output ranges, and safety instructions.
