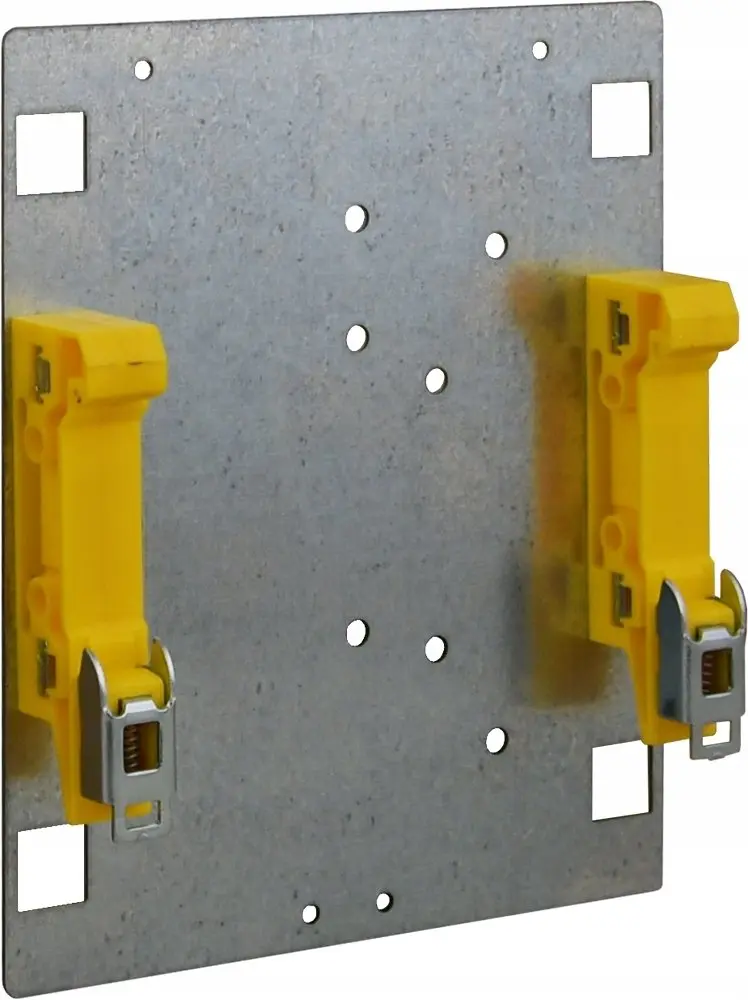

DIN rail mount PULSAR DIN1 for power supplies and transformers, model DIN1

PULSAR DIN1 is a compact DIN-rail mount engineered to hold power supplies and transformers securely on standard 35 mm DIN rails. Designed for use in control cabinets, distribution boxes and electrical enclosures, this mounting clip delivers stable mechanical support and helps maintain an organized layout of power modules and small transformers within industrial and residential installations.

Advantages

The DIN1 mount offers a simple snap-on installation onto a standard DIN rail and provides reliable retention for compatible power supplies and small transformers. Its compact profile minimises occupied rail space, allowing denser arrangement of devices. Constructed for steady mechanical support, the mount reduces movement and vibration of mounted modules, facilitating safer wiring and easier module replacement.

Suitable for

• Mounting small to medium-sized power supplies on 35 mm DIN rails
• Securing low-voltage transformers in control cabinets and distribution boxes
• Organising power modules in industrial panels and residential electrical enclosures
• Applications requiring frequent access for replacement or maintenance

When it may not be suitable

The DIN1 is intended for standard DIN rails and compatible module profiles; it may not be suitable for non-standard rail widths or unusually shaped transformer housings that cannot be supported by the clip. It is not a substitute for specialized heavy-duty brackets where high mechanical loads, large transformers or extensive heat dissipation requirements exist.

Key specifications

• Mount type: DIN-rail clip for 35 mm standard DIN rail
• Compatible devices: small to medium power supplies and low-voltage transformers with appropriate mounting surfaces
• Material and finish: durable insulating material designed for electrical enclosure use
• Mounting method: snap-on attachment to DIN rail for tool-free installation
• Profile: compact design to minimise rail space usage

How to use

Align the DIN1 mount with the top edge of a standard 35 mm DIN rail and press the clip until it snaps into place. Position the power supply or transformer so its mounting surface engages securely with the mount, then verify stable retention and correct orientation before making electrical connections. For removal, gently lever the clip away from the rail to release it and slide the module off the mount. Follow standard safety procedures: disconnect power before installation or removal and ensure wiring is completed by qualified personnel.

What to consider before purchase

• Confirm compatibility of the power supply or transformer housing with a DIN-rail clip mounting style
• Verify the installation rail is the standard 35 mm DIN rail width
• Ensure load and weight of the device are within acceptable limits for a clip-style mount
• Check required clearances for ventilation and adjacent components in the cabinet

Usage recommendations

Install the DIN1 on a clean, undamaged section of 35 mm DIN rail and avoid overloading the mount. For equipment subject to vibration or higher mechanical strain, use manufacturer-recommended fastening or additional supports. Always isolate power before working on electrical installations and follow local wiring regulations.
