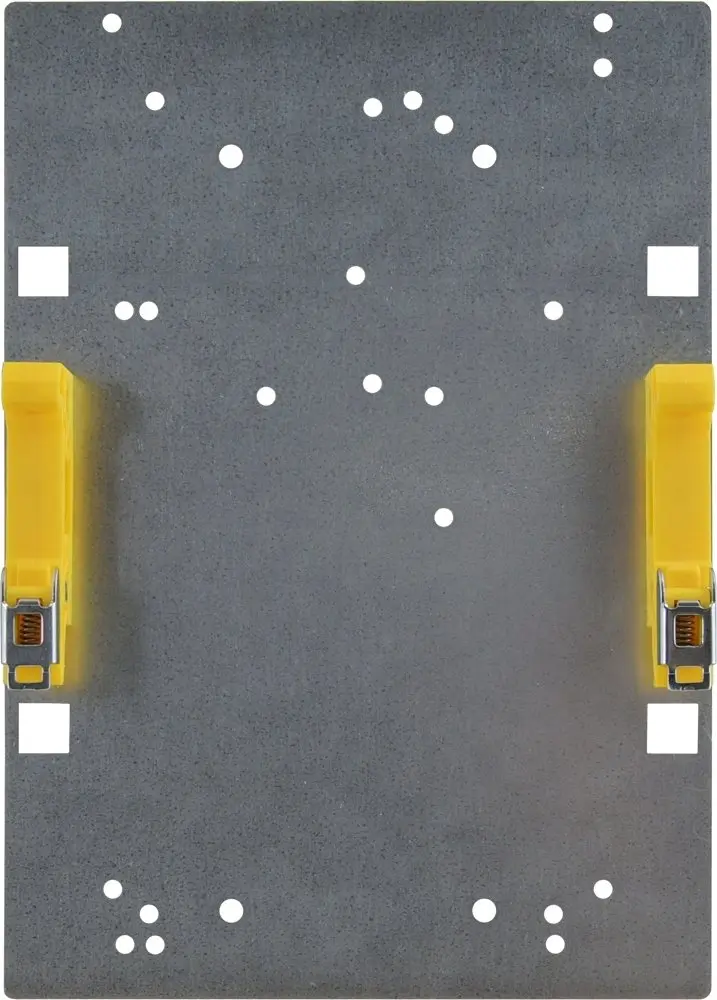

DIN rail mount bracket PULSAR DIN3 for power supplies (model DIN3)

PULSAR DIN3 is a DIN-rail mounting bracket designed to attach compatible PULSAR power supplies to standard 35 mm DIN rails. The bracket offers a snap-on mounting mechanism and secure fixation, enabling quick installation, removal and replacement of power supply modules in control cabinets, industrial panels and security enclosures. The design aims to be compact and compatible with a range of small to medium-sized power supply housings for clean and organised installations.

Advantages

The bracket provides stable mechanical fixation and a straightforward snap-on attachment that reduces installation time and the need for separate fasteners. Its compact footprint helps keep wiring space available inside cabinets and panels. The PULSAR DIN3 bracket is made to fit standard DIN rails, making it compatible with common electrical and security system installations while allowing easy module replacement without disassembling neighbouring components.

Suitable for

• Mounting compatible PULSAR power supplies on 35 mm DIN rails in control cabinets
• Organising power modules in industrial automation panels and distribution boards
• Installation in security system enclosures, alarm and access control cabinets
• Situations requiring quick swap or maintenance of power supply units

When it may not be suitable

The DIN3 bracket is intended for use with power supplies whose housings match the bracket's mounting interface and for standard 35 mm DIN rails; it may not be suitable for oversized or non-standard housings and for other rail dimensions. It is not a substitute for enclosure-specific brackets where additional mechanical reinforcement, vibration isolation, or environmental sealing is required.

Key specifications

• Mounting type: snap-on for 35 mm DIN rail (standard top-hat rail)
• Material: durable thermoplastic or reinforced polymer construction for mechanical stability
• Compatibility: designed for compatible PULSAR power supply housings with matching mounting points
• Fixation: secure latch mechanism allowing tool-free installation and removal
• Footprint: compact profile to minimise occupied rail space and allow adjacent modules

How to use

Align the power supply housing with the DIN3 bracket's mounting points, then press the assembly onto the 35 mm DIN rail until the latch engages and the bracket snaps into place. For removal, press or lift the latch mechanism as specified by the bracket design and slide the unit off the rail. Ensure the power supply is de-energised before mounting or dismounting, and confirm that neighbouring components have sufficient clearance to avoid interference during installation or removal.

What to consider before purchase

• Confirm that the power supply housing has the compatible mounting points for the DIN3 bracket
• Verify that the installation rail is a standard 35 mm DIN top-hat rail
• Check available rail space and neighbouring components for physical clearance
• Assess whether additional mechanical support or environmental protection is required for the application

Usage recommendations

Install and remove power supplies with the system de-energised, handle the bracket and module by their mechanical mounting points, and perform periodic checks of the latch engagement and rail attachment to ensure long-term secure fixation in control cabinets and security enclosures.
