QNAP TS-433 NAS tower — Cortex-A55 4 GB 16 TB

Name: NAS tower QNAP TS-433 with K/TS-433-4G+4XMN10ADA400ES
Brand: QNAP
SKU: 11290540
Price: 1426.99 EUR
Availability: OutOfStock

Hot Deals at AiO.lv

Hurry and order now – up to 50% off!

NAS tower QNAP TS-433 with Cortex-A55 2.0 GHz, 4 GB RAM, 16 TB HDD, 4 bays, RAID, White

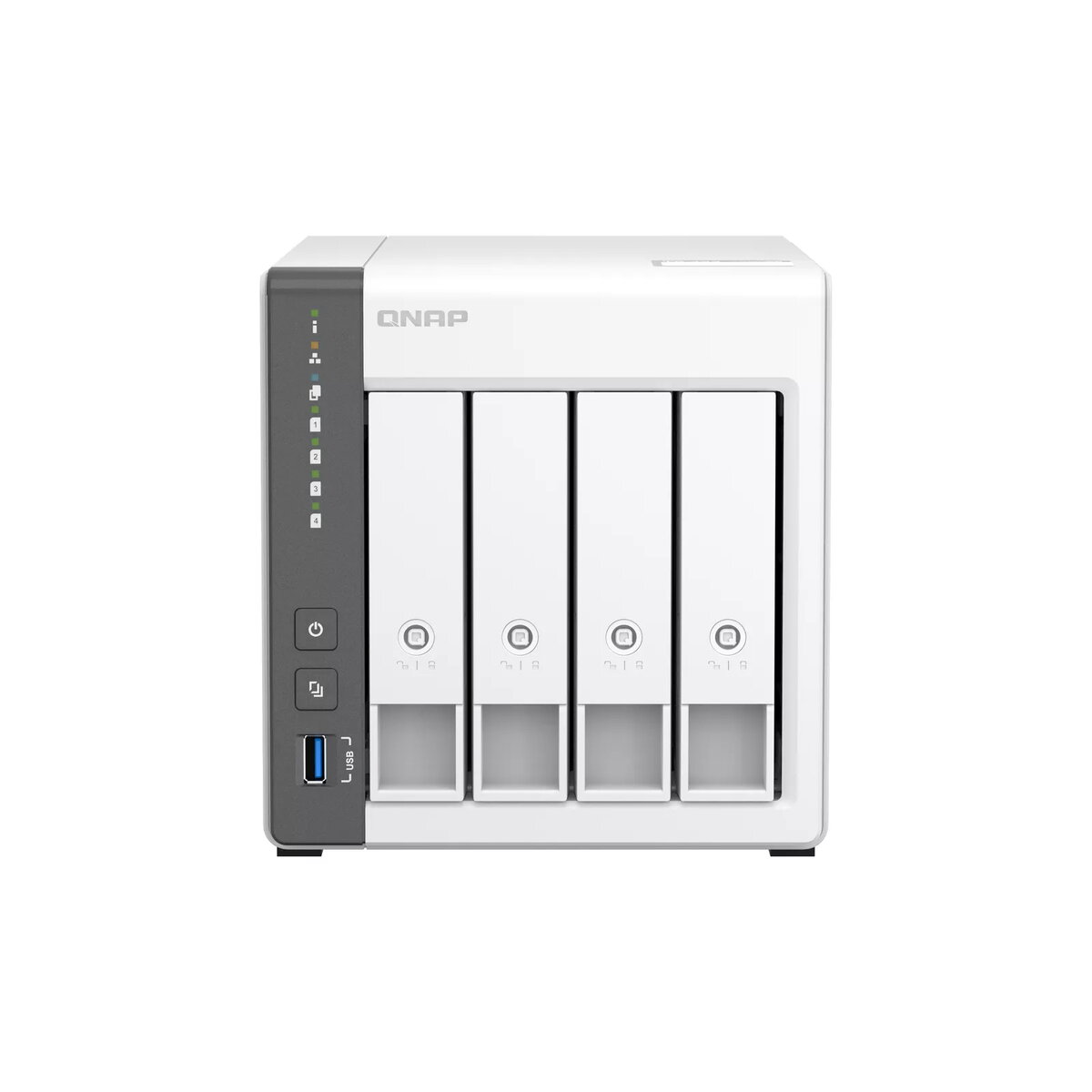

QNAP TS-433 NAS tower — Cortex-A55 4 GB 16 TB Photo 1

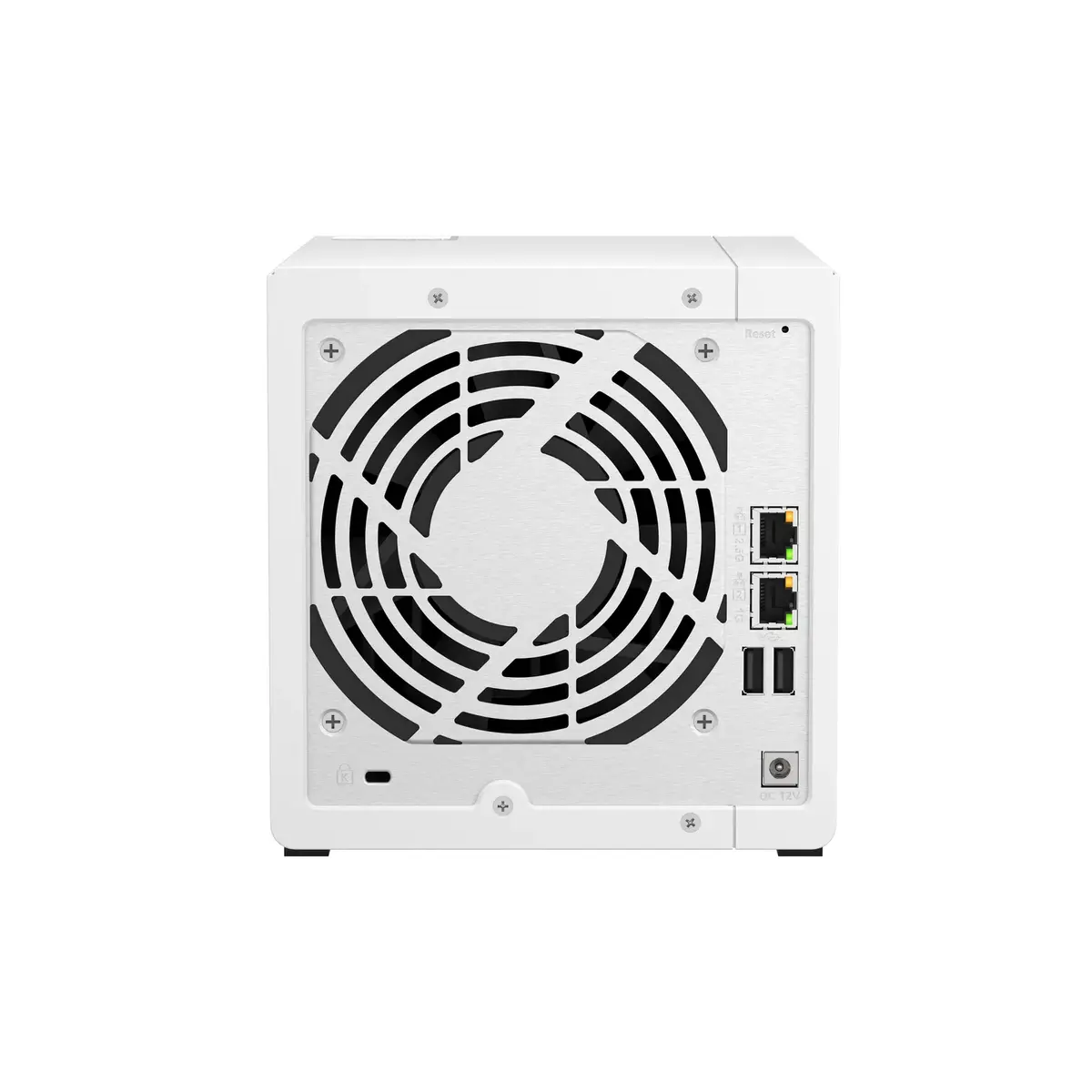

QNAP TS-433 NAS tower — Cortex-A55 4 GB 16 TB Photo 2

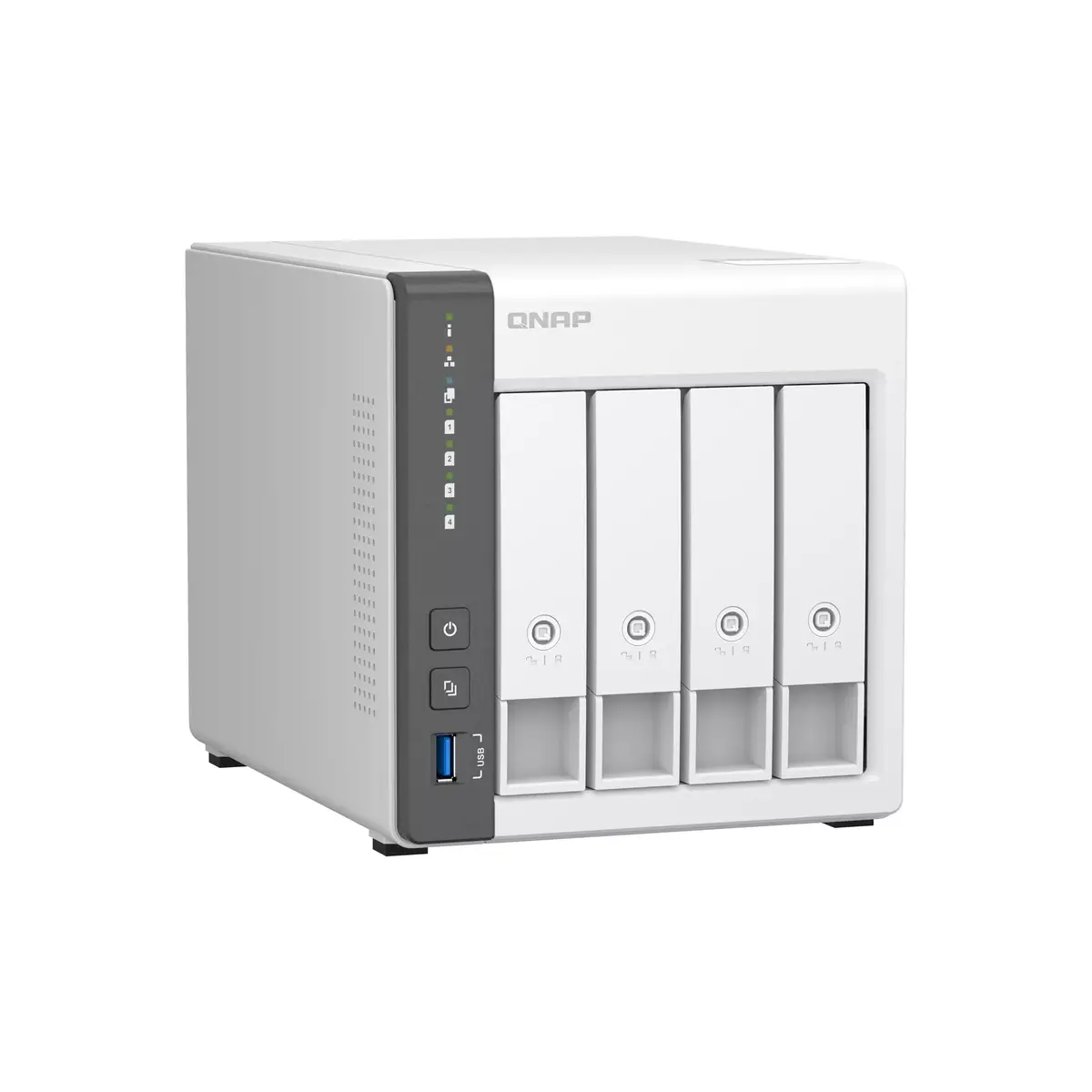

QNAP TS-433 NAS tower — Cortex-A55 4 GB 16 TB Photo 3

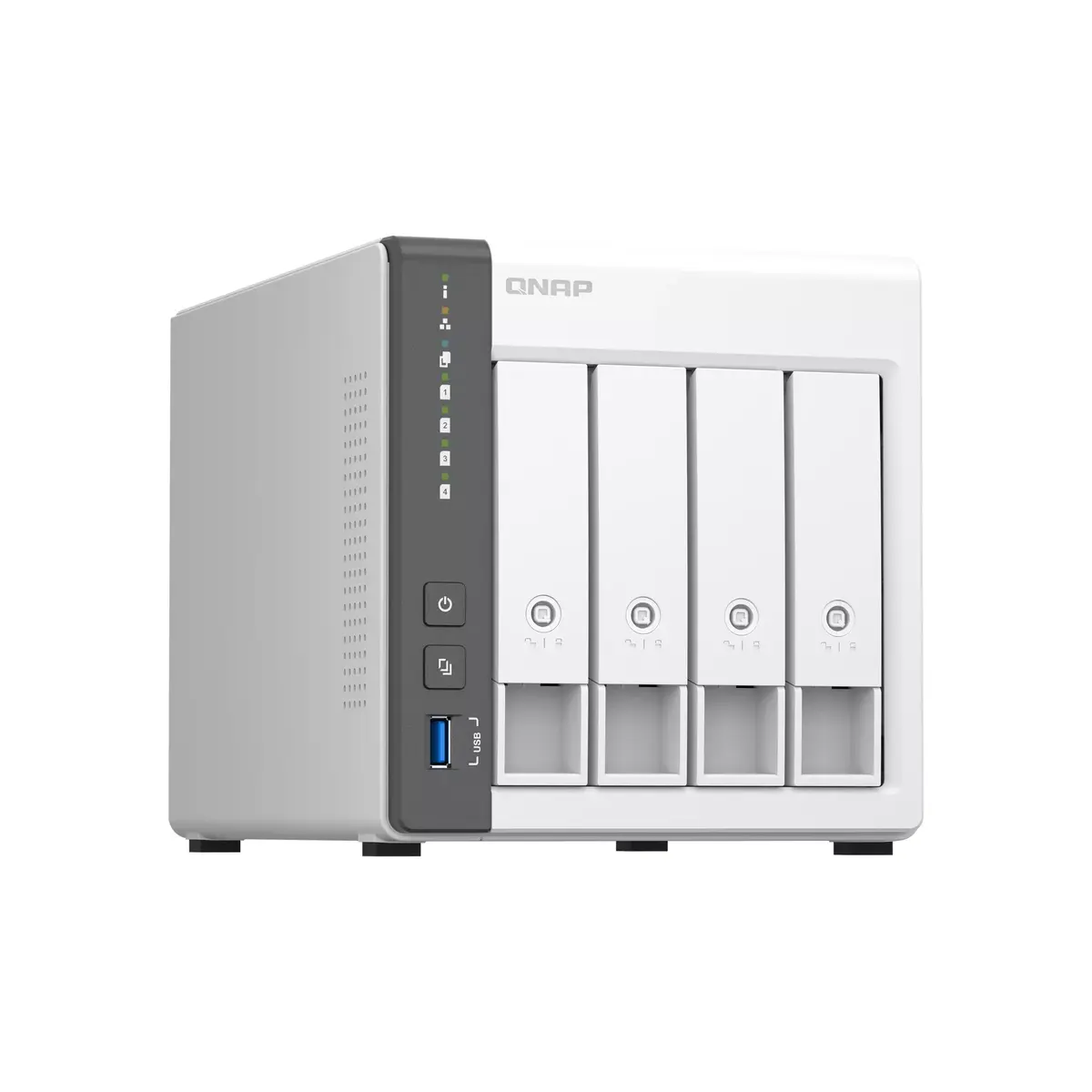

QNAP TS-433 NAS tower — Cortex-A55 4 GB 16 TB Photo 4

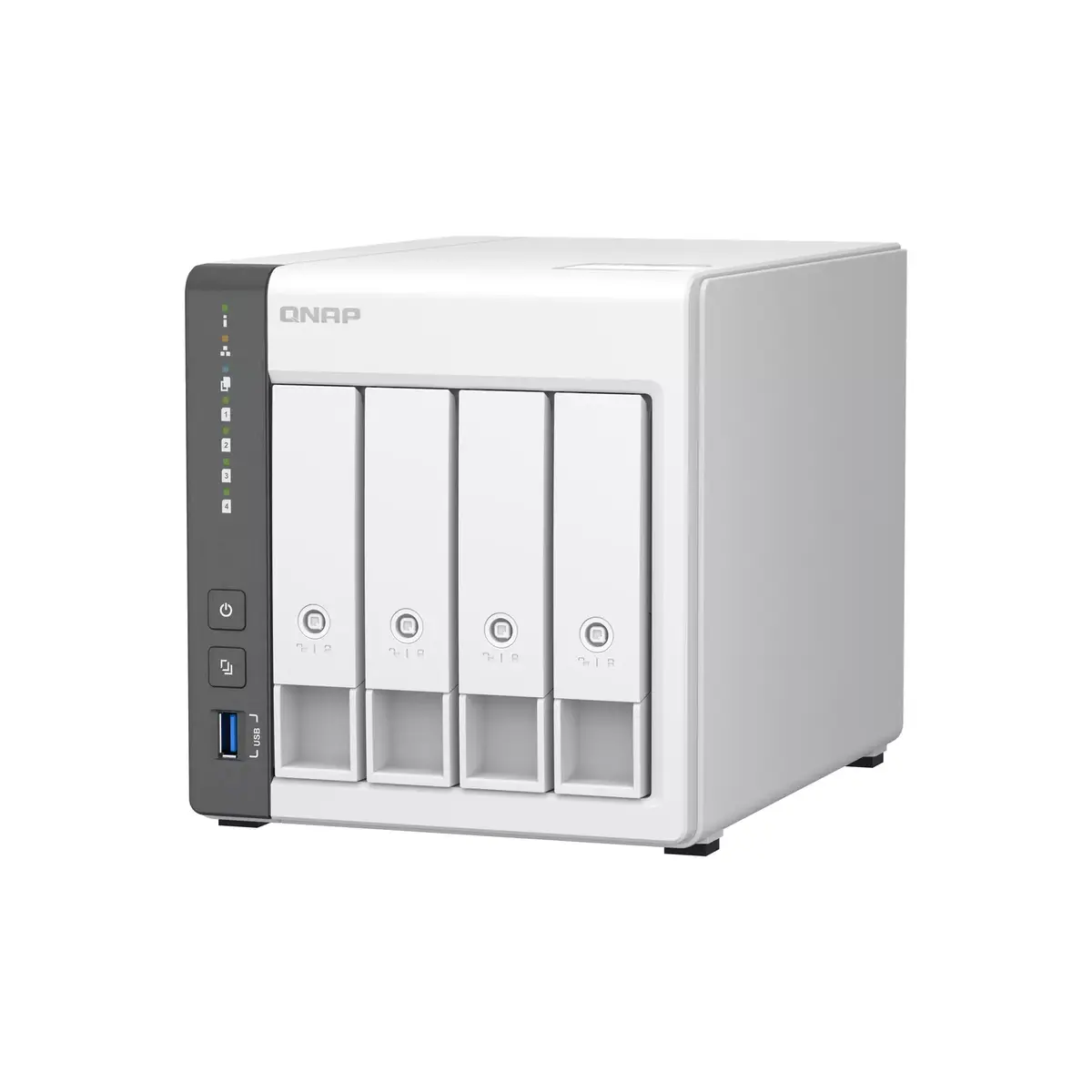

QNAP TS-433 NAS tower — Cortex-A55 4 GB 16 TB Photo 5

QNAP TS-433 NAS tower — Cortex-A55 4 GB 16 TB Photo 6

Short description

QNAP TS-433 is a tower NAS for home and home office use powered by a Cortex-A55 2.0 GHz CPU and 4 GB internal memory. It comes with 16 TB total installed HDD storage across 4 drive bays, supports HDD and SSD, and provides RAID support for data protection. Runs QNAP Turbo System and offers Ethernet LAN connectivity in a white chassis for centralized file storage, backups, media streaming and remote access.

Warranty: 2 Years

SKU: 11290540

Information regarding the items availability for purchase will be posted on this site

Item cost information will be published on this site

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

QNAP TS-433 is a compact tower NAS for home and home-office use that provides centralized file storage, backups, media streaming and remote access. Equipped with a 64-bit ARM Cortex-A55 quad-core 2.0 GHz CPU, 4 GB of RAM and four preinstalled hard drives (16 TB total), the TS-433 supports HDD and SSD drives across four bays and offers RAID configurations and hardware-accelerated AES-NI encryption to protect data while maintaining performance. A 2.5GbE port and Gigabit LAN port enable faster collaboration and improved network throughput, and the device runs QTS 5 for system management, multimedia services and containerized applications.

Advantages

The TS-433 combines a slim, minimalist white chassis with tool-less hard drive installation and an effective cooling fan to deliver quiet, reliable operation in small spaces. Built-in NPU accelerates on-device AI tasks for faster face and object recognition, while QTS 5 and a range of apps (including Container Station for Docker containers) expand functionality for backups, synchronization, media streaming and productivity. Snapshot-based protection and AES-NI encryption add layers of security against data loss and ransomware.

Suitable for

Centralized home or small office file storage and automated backups
Media storage and streaming to TVs and DLNA devices
Collaborative remote work with faster network access (2.5GbE)
Photographers and video editors who need high-capacity storage for RAW and large media files
Hobbyist developers and container-based application hosting (Docker)

Key specifications

Processor: 64-bit ARM Cortex-A55 quad-core 2.0 GHz
Memory: 4 GB RAM (built-in)
Drive bays: 4 bays, supports HDD and SSD
Installed storage: 16 TB total across four HDDs
RAID: supports multiple RAID levels for data protection
Network: one 2.5 Gigabit Ethernet port and one Gigabit Ethernet port
Encryption: AES-NI hardware-accelerated encryption
Operating system: QTS 5
Additional hardware: built-in NPU for AI acceleration, ARM NEON for video processing
Chassis: compact tower, white color

How to use

Install the TS-433 in a well-ventilated location and insert or replace drives using the tool-less trays. Connect the NAS to your network via the Gigabit and 2.5GbE ports and power it on. Use the QTS 5 web interface or QNAP’s setup utilities to initialize the system, configure RAID and create shared folders. Install desired apps from the App Center for backup, synchronization, multimedia streaming or container hosting, and enable snapshot protection and encryption as required to safeguard data.

Usage recommendations

For best results, place the TS-433 on a stable, dust-free surface with adequate airflow, use RAID for redundancy, schedule regular backups and snapshots, and keep QTS and installed apps updated. When streaming high-resolution media or using AI-accelerated tasks, connect compatible devices to the 2.5GbE network to benefit from increased bandwidth.

Specifications

Number of storage drives installed:: 4
Number of storage drives supported:: 4
Storage drives installed:: Yes
RAID support:: Yes
Installed storage drive type:: HDD
Supported storage drive types:: HDD & SSD
Ethernet LAN:: Yes
Chassis type:: Tower
Product colour:: White

All features

Storage

RAID levels:: 6, 1, JBOD, 5, 10
Supported file systems:: FAT32, exFAT, HFS+, NTFS, ext3, ext4
RAID support:: Yes
Storage drive interface:: Serial ATA III, Serial ATA II
Number of storage drives supported:: 4
Storage drive sizes supported:: 2.5, 3.5
Storage drives installed:: Yes
Number of storage drives installed:: 4
Installed storage drive type:: HDD
Supported storage drive types:: HDD & SSD
Hot-swap drive bays:: Yes
Storage drive capacity:: 4000 GB
Supported storage drive interfaces:: Serial ATA III, Serial ATA II
Online RAID migration:: Yes
Online RAID expansion:: Yes
Disk roaming:: Yes
RAID rebuild:: Yes
Total installed storage capacity:: 16 TB

Ports & interfaces

USB 2.0 ports quantity:: 2
Ethernet LAN (RJ-45) ports:: 2
Concurrent connections:: 200
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:: 1
USB port:: Yes

Network

Ethernet LAN:: Yes
Wake-on-LAN ready:: Yes
Jumbo frames support:: Yes
DHCP server:: Yes
Ethernet LAN data rates:: 1000, 2500, 100
iSCSI support:: Yes
Dynamic DNS (DDNS):: Yes

Processor

Processor model:: Cortex-A55
Processor cores:: 4
Processor architecture:: ARM Cortex-A55
Processor frequency:: 2 GHz

Memory

Flash memory:: 4000 MB
Maximum RAM supported:: 4 GB
Internal memory:: 4 GB

Power

Power consumption (typical): Power consumption in switched-on state expressed in W.: 22.54 W
AC input voltage:: 100 - 240
Power supply location:: External
Fan voltage:: 12 V
Power supply unit (PSU) capacity:: 90 W
Power consumption (HDD standby):: 8.45 W

Operational conditions

Operating relative humidity (H-H):: 5 - 95
Storage temperature (T-T):: -20 - 70
Operating temperature (T-T):: 0 - 40
Storage relative humidity (H-H):: 5 - 95

Design

Chassis type:: Tower
Cable lock slot:: Yes
LED indicators:: HDD, Status, LAN
Product colour:: White
Number of fans:: 1 fan(s)
Cooling type:: Active
Fan diameter:: 120 mm
Cable lock slot type:: Kensington
Drive bay locking:: Yes

Performance

Type:: NAS
Security algorithms:: HTTPS, SSH, 256-bit AES, FIPS 140-2
Management protocols:: SNMP V2/V3
Browser supported:: Apple Safari, Google Chrome, Microsoft Edge, Mozilla Firefox
Buzzer:: Yes
Snapshot:: Yes
Access Control List (ACL):: Yes
Reset button:: Yes
Multilingual support:: Yes
On/off switch:: Yes
S.M.A.R.T. support:: Yes
Device class:: Home & Home Office
Backup function:: Yes
Backup features:: Cloud, iSCSI LUN
Built-in FTP server:: Yes
System log:: Yes
Hot spare:: Yes
Password authentication:: Yes
Disk scan:: Yes

Weight & dimensions

Height:: 169 mm
Width:: 160 mm
Depth:: 219 mm

Software

Operating system installed:: QNAP Turbo System
Operating system version:: 5.0.1
Windows operating systems supported:: Windows 10, Windows 11, Windows 7, Windows 8
Mac operating systems supported:: Y
Linux operating systems supported:: Y
Server operating systems supported:: Windows Server 2008, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019

Packaging content

Cables included:: AC, LAN (RJ-45)
External power adapter:: Yes
Number of screws:: 28
Power cables quantity:: 1
Drive tray key included:: Yes
