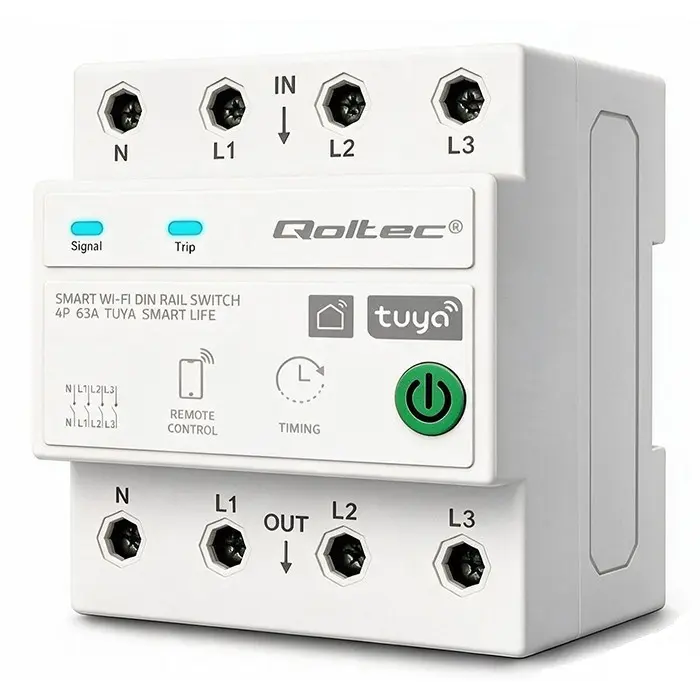

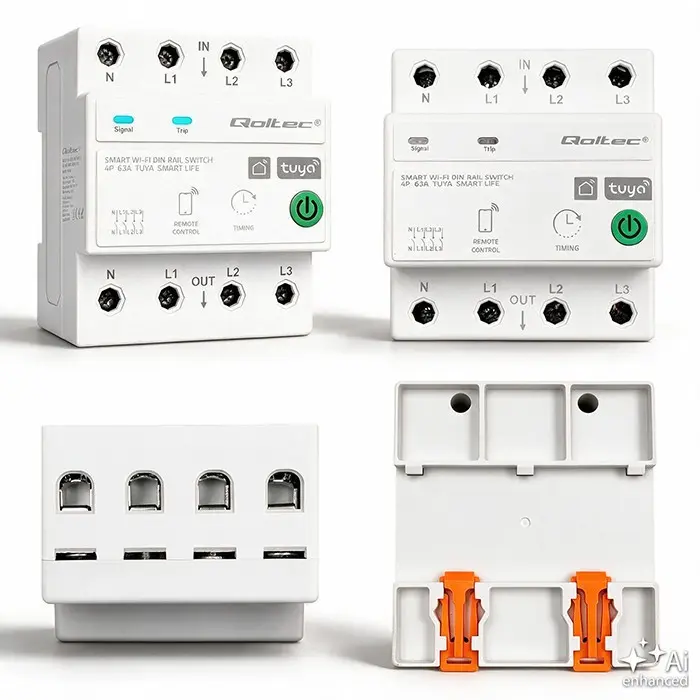

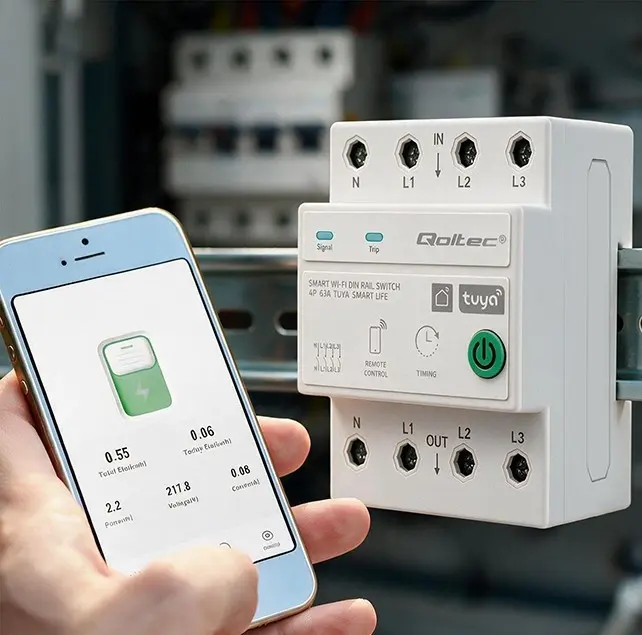

QOLTEC Three Phase 63A Relay for DIN Rail 3P+N with Timer

The QOLTEC Three Phase 63A Relay for DIN Rail 3P+N with Timer is a specialized electrical device engineered for advanced power management and circuit control. Designed to handle demanding electrical environments, this unit integrates a 3P+N configuration alongside a built-in timer function to deliver precise operational scheduling and dependable switching performance. It serves as a vital component for modern industrial setups, commercial electrical infrastructure, and complex automation panels requiring consistent power distribution.

Advantages

This three-phase relay offers robust construction tailored for heavy-duty electrical installations, ensuring long-term operational reliability. The integration of a timer function eliminates the need for external timing modules, streamlining panel layouts and reducing installation complexity. Its standardized DIN rail mounting design facilitates quick and secure integration into existing distribution boards, while the 3P+N configuration provides comprehensive circuit management capabilities for multi-phase systems.

Suitable for

• Industrial power distribution systems and automation control panels
• Commercial electrical infrastructure requiring scheduled switching
• Heavy-duty electrical installations managed via DIN rail mounting
• Advanced electrical circuit control and management applications

When it may not be suitable

This device is not designed for single-phase residential applications or low-voltage circuits that do not require a 3P+N configuration. Additionally, it may not be appropriate for installations where maximum current demands exceed 63A or where advanced programmable logic controllers are already handling complete timing logic without the need for hardware-integrated timers.

Key specifications

• Three-phase relay with 3P+N configuration
• Maximum current rating of 63A
• DIN rail installation compatibility

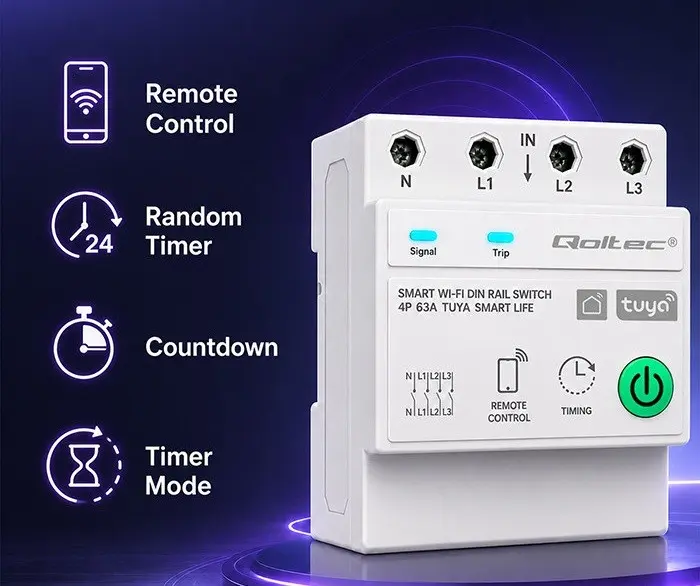

• Integrated timer function for precise timing control

How to use

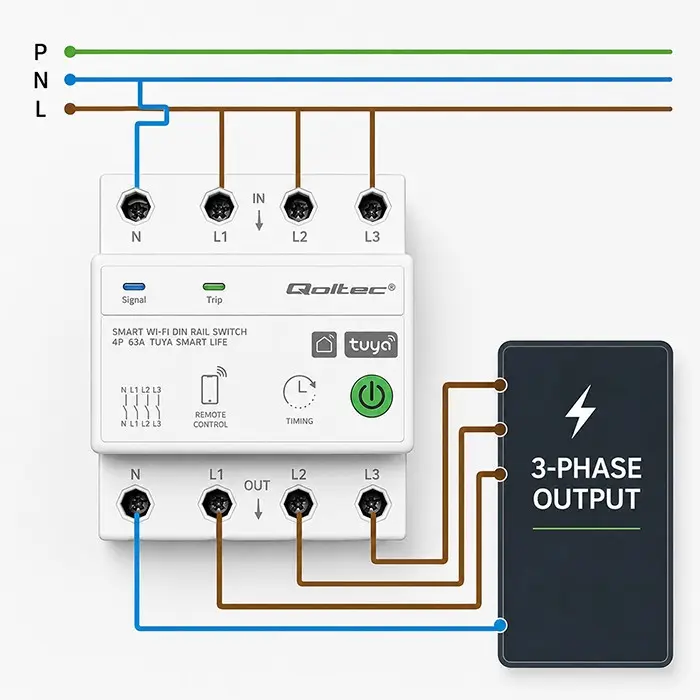

Installation should be performed by a qualified electrician in accordance with local electrical codes and safety regulations. Mount the unit securely onto a standard DIN rail within a suitable electrical enclosure or distribution board. Connect the three-phase and neutral lines to the designated terminals, ensuring all wiring is tightened to the correct torque specifications. Configure the integrated timer function according to the required operational schedule before energizing the circuit.

What to consider before purchase

• Verify that your electrical system utilizes a 3P+N configuration
• Confirm that the 63A current rating aligns with your load requirements
• Ensure sufficient space is available on the DIN rail within your distribution panel
• Check whether an integrated timer function matches your operational scheduling needs

Always disconnect the main power supply before installing, servicing, or modifying any electrical components associated with this relay to prevent electrical shock or equipment damage.
