RAIDSONIC IB-RD2253-U31 HDD/SSD enclosure

Name: HDD/SSD enclosure RAIDSONIC IB-RD2253-U31 — IB-RD2253-U31
Brand: RAIDSONIC
SKU: 312038
Price: 69.49 EUR
Availability: InStock

Aquaphor

Filters you can trust. Pure water every day.

HDD/SSD enclosure RAIDSONIC IB-RD2253-U31 — 2.5" SATA I/II/III, USB-C, 10 Gbit/s, RAID 0/1, Hot-swap, Black

RAIDSONIC IB-RD2253-U31 HDD/SSD enclosure Photo 1

RAIDSONIC IB-RD2253-U31 HDD/SSD enclosure Photo 2

RAIDSONIC IB-RD2253-U31 HDD/SSD enclosure Photo 3

RAIDSONIC IB-RD2253-U31 HDD/SSD enclosure Photo 4

RAIDSONIC IB-RD2253-U31 HDD/SSD enclosure Photo 5

RAIDSONIC IB-RD2253-U31 HDD/SSD enclosure Photo 6

RAIDSONIC IB-RD2253-U31 HDD/SSD enclosure Photo 7

RAIDSONIC IB-RD2253-U31 HDD/SSD enclosure Photo 8

RAIDSONIC IB-RD2253-U31 HDD/SSD enclosure Photo 9

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

RAIDSONIC IB-RD2253-U31 is a 2.5" HDD/SSD external enclosure supporting SATA, SATA II and SATA III drives with a 10 Gbit/s USB-C connection. It offers RAID 0 and RAID 1 modes plus hot-swap capability for fast data transfer and redundancy. The black enclosure is suitable for backup, drive cloning, portable storage expansion and secure data transport.

Available for order: 1 pcs.

Warranty: 2 Years

SKU: 312038

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

26.06.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

26.06.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

01.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.51 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts nodaļa

01.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

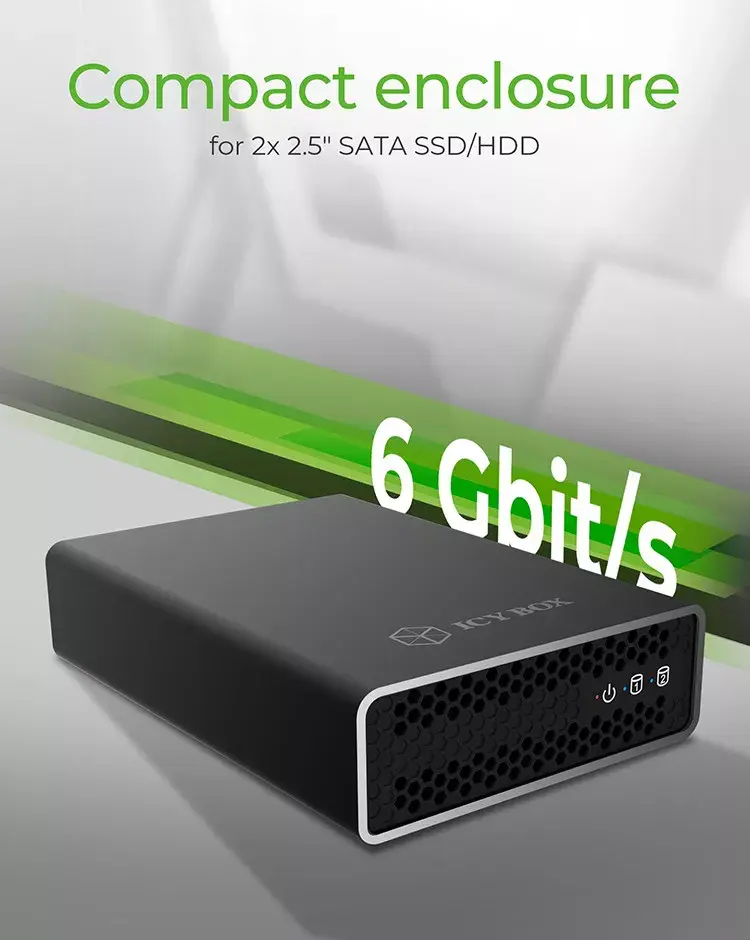

RAIDSONIC IB-RD2253-U31 is a compact external enclosure for two 2.5" SATA I/II/III HDDs or SSDs that provides a USB-C 10 Gbit/s connection and support for multiple RAID modes. The unit accepts two drives simultaneously and offers RAID 0 for performance, RAID 1 for redundancy, Single for independent operation, and LARGE for concatenated capacity. A physical switch on the rear panel allows selecting the desired mode, while hot-swap capability enables replacing drives without powering down the enclosure. The black housing is designed for portable storage expansion, backups, cloning and transport of drives.

Advantages

The aluminum grid on the enclosure aids passive heat dissipation, reducing operating temperature without the need for an internal fan. Dual-cable support includes both USB Type-C and USB Type-A cables to maximize compatibility with modern and legacy hosts. LED indicators provide clear status information for power, drive access and errors. Native support for SATA I/II/III ensures compatibility with a wide range of 2.5" HDDs and SSDs, and the 10 Gbit/s USB 3.1 interface delivers significantly higher transfer rates when paired with a compatible host.

Suitable for

Portable backup and archive storage
Fast file transfer and media editing using RAID 0
Data redundancy and mirror copies using RAID 1
Drive cloning and data migration between 2.5" drives
Temporary expansion of laptop or desktop storage

Key specifications

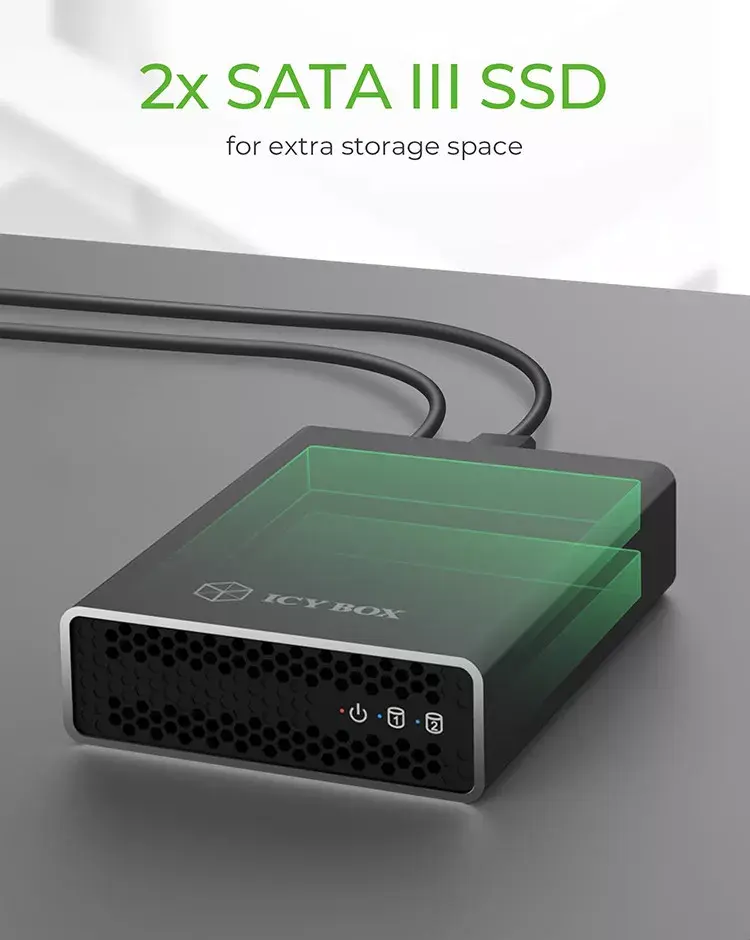

Form factor: supports two 2.5" SATA drives (HDD/SSD)

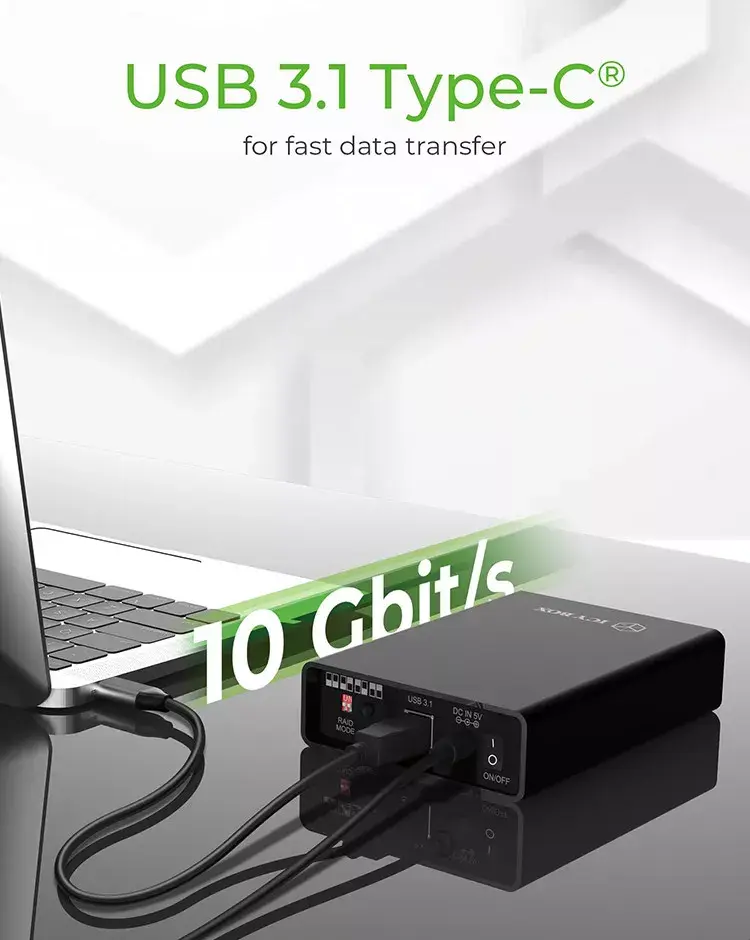

Interface to host: USB 3.1 (10 Gbit/s) via USB-C connector; includes USB-C and USB-A cables
Supported SATA versions: SATA I, SATA II, SATA III

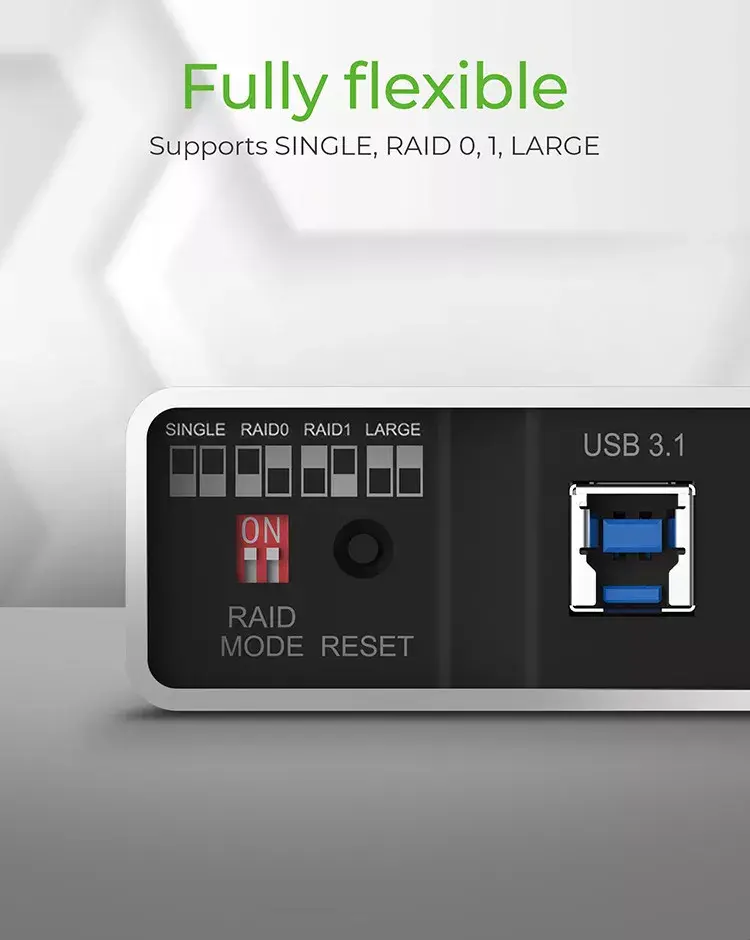

RAID modes: RAID 0, RAID 1, Single, LARGE (concatenation)

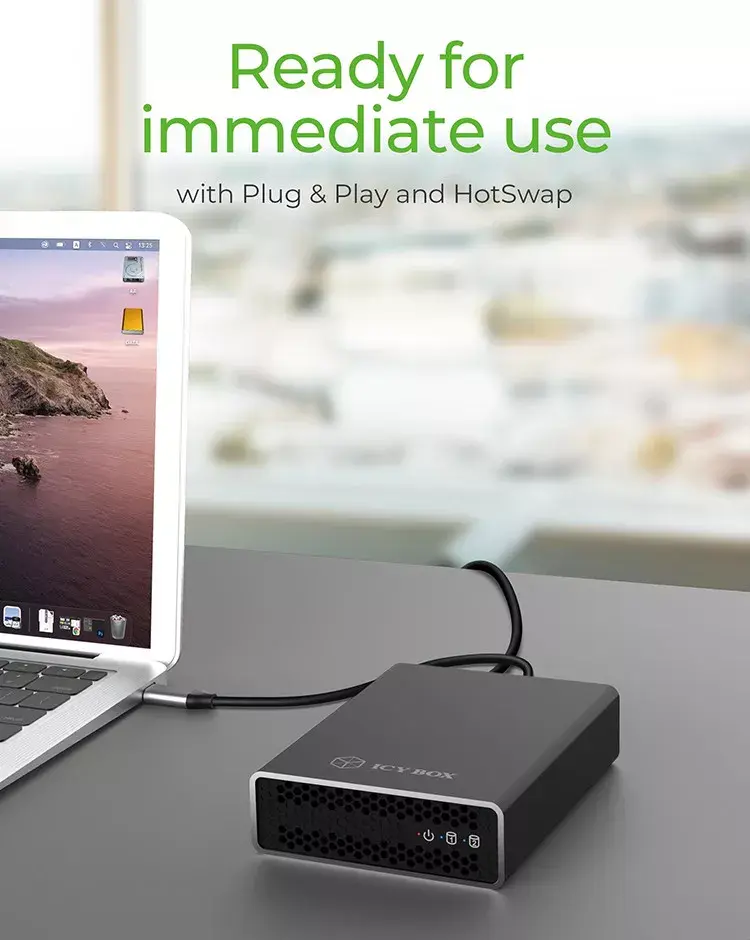

Hot-swap capability: supports drive replacement without powering down

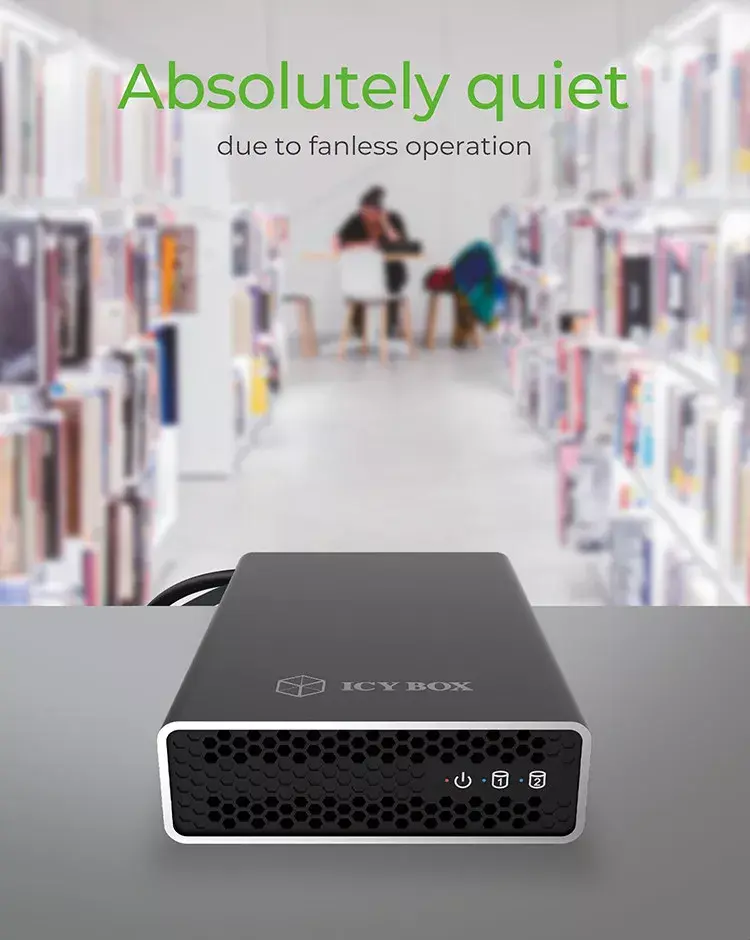

Cooling: passive cooling with aluminum grid for heat dissipation
Status indicators: LEDs for power, drive access and error reporting
Color and material: black housing with aluminum grid

How to use

Install one or two 2.5" SATA drives into the enclosure following the mechanical guide; ensure connectors align and drives are seated firmly. Connect the enclosure to a computer using the supplied USB-C or USB-A cable, depending on the host port. Set the RAID mode using the rear switch before powering on if you need a specific configuration (RAID 0, RAID 1, Single or LARGE). When operating, monitor the LEDs to verify power and drive activity; to replace a drive use the hot-swap feature by following safe removal procedures in the host operating system before physically removing the drive.

Usage recommendations

For best performance, connect to a host port that supports USB 3.1 10 Gbit/s and use SSDs when high sustained transfer rates are required. Use RAID 1 for critical data that needs redundancy, and RAID 0 only for temporary performance tasks where data backup exists elsewhere. Allow adequate ventilation around the aluminum grid and avoid blocking the enclosure vents to maintain passive cooling efficiency.

Specifications

Storage drive size:: 2.5
USB version:: 3.2 Gen 2 (3.1 Gen 2)
Weight:: 0.178 kg
Supported storage drive interfaces:: Serial ATA III, Serial ATA II, Serial ATA
USB connector type:: USB Type-C
Material:: Aluminium, Plastic
Product colour:: Black

All features

Storage

RAID levels:: 1
Hot-swap:: Yes
Storage drive size:: 2.5
Supported storage drive interfaces:: Serial ATA III, Serial ATA II, Serial ATA

Ports & interfaces

USB connector type:: USB Type-C
USB version:: 3.2 Gen 2 (3.1 Gen 2)
USB connectivity:: Yes

Design

Product type:: HDD/SSD enclosure
Material:: Aluminium, Plastic
Product colour:: Black
LED indicators:: Activity, Power
On/off switch:: Yes

Weight & dimensions

Weight:: 0.178 kg
Package weight:: 435 g
Height:: 32 mm
Width:: 132 mm
Depth:: 92 mm
Package depth:: 145 mm
Package height:: 65 mm
Package width:: 195 mm

Power

AC adapter input voltage:: 100 - 240
AC adapter frequency:: 50/60
AC adapter output voltage:: 5
AC adapter output current:: 1.5 A
Power source type:: AC
AC adapter input current:: 0.3 A

Performance

Plug and Play:: Yes
Data transfer rate:: 10 Gbit/s
Country of origin:: China

System requirements

Windows operating systems supported:: Windows 7 Starter x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 10 Enterprise, Windows 7 Professional x64, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Starter
Mac operating systems supported:: Mac OS X 10.8 Mountain Lion, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.9 Mavericks

Packaging content

Manual:: Yes

Logistics data

Master (outer) case height:: 350 mm
Master (outer) case width:: 405 mm
Master (outer) case gross weight:: 9400 g
Master (outer) case length:: 315 mm
Products per master (outer) case:: 20 pc(s)
Harmonized System (HS) code:: 84733080

Hide Show all

Instructions

mmo_30971719_1673363362_9681_3854.pdf

raidsonic-IB-RD2253-U31-312038.pdf

Description

Instructions

mmo_30971719_1673363362_9681_3854.pdf

raidsonic-IB-RD2253-U31-312038.pdf

Machine translation. Load original

{{highlightedFeature.featureTitle}}:

{{getProductFeatureValueById(product, highlightedFeature.featureId)}}

Customer reviews

Show all reviews

Customer questions

FAQ

How much does the RAIDSONIC IB-RD2253-U31 HDD/SSD enclosure cost, and is it available for purchase?

The price is 69.49 € (valid at the time of publication and already includes all taxes). The item is available for order — 1 pcs. are in stock, and you can place your purchase right now with delivery across Latvia and Europe or choose pickup at the Riga collection point. We offer favorable purchase terms, including the option to split the payment into convenient monthly installments. Availability and price are updated in real time, so we recommend placing your order in advance.

If I order this product today, when will I receive my order?

If you place your order today, delivery will be as fast and convenient as possible. You will be able to pick up your order on 26.06.2026 at the Riga pickup point or choose delivery across Latvia and Europe. We carefully inspect every purchase and pack it securely for safe transportation.

What payment options are available?

AiO.lv offers several payment methods: Bank transfer, Bank cards on-line, Apple Pay, Google Pay. All transactions are 100% secure and encrypted.

Can this product be purchased for a company (with VAT)?

Yes. AiO.lv works with legal entities in Latvia and across Europe. The product price already includes VAT. For certain product categories, as well as for companies from other EU countries with a valid VAT number, a 0% VAT rate may apply. We issue the invoice immediately after the order is placed, support electronic BIS invoices, and automatically generate all necessary accounting documents. You can complete the purchase for a company online — simply select the company profile and choose bank transfer as the payment method during checkout.

What is the warranty period?

All RAIDSONIC products come with an official 2 Years warranty. It covers all manufacturing defects and malfunctions that may occur during use. The warranty is valid at all authorized RAIDSONIC service centers and through AiO.lv

Can the product be returned after purchase?

Yes, you can return the product within 14 days of purchase if you bought it as a consumer (not a legal entity). Returns are possible without giving any reason — the main condition is that the product retains its original appearance and full set of accessories. We will make the process as simple and convenient as possible: just contact our customer support team, and we will help you arrange the return.

Where should I contact for warranty service?

For warranty-related questions you can contact the AiO.lv (SIA VSPRO) customer support team. We will assist with consultation, warranty claim processing, and coordination with certified service centers.

How can I tell if this product suits my needs?

When making a choice, we recommend paying attention to the key features: storage drive size, usb version, weight, supported storage drive interfaces, usb connector type, material, product colour, compatibility with your devices or usage conditions, material quality, functionality, and warranty terms. These characteristics will help you determine how well the model meets your needs.

Where can I download the instructions for RAIDSONIC IB-RD2253-U31 HDD/SSD enclosure?

You can download the instructions in PDF format from the “Instructions” section on the product description page. The file contains complete information about installation, setup, and usage.

Show all questions
