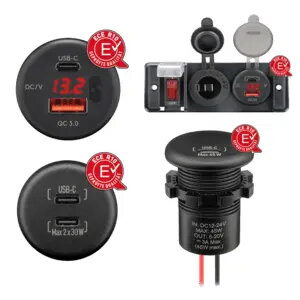

Switch panel with integrated USB charger and LED, ram mount 560005, open cable ends

ram mount switch panel model 560005 integrates a multi-function switch, an LED voltage display and a built-in USB charger in a compact front-panel unit with open cable ends. Designed for installation in vehicles, boats or mobile equipment, this panel offers a USB‑A and USB‑C charging outlets together with a 12 V socket, an illuminated on/off switch and a 7‑segment LED indicator that shows onboard voltage during charging. The unit includes a 200 mm cable for the USB charger and flat connectors for the remaining power connections, and it is intended for front-panel mounting using two holes.

Advantages

The integrated design reduces space requirements by combining USB‑A, USB‑C and a 12 V socket with a dedicated illuminated switch and voltage display. Built‑in Quick Charge and Power Delivery support allow faster charging of compatible smartphones and devices. Rounded edges and internal protections guard against short circuits, overvoltage and overheating, while protective covers help reduce dust and moisture ingress. Compliance with automotive and industrial quality standards and EMC requirements ensures suitability for demanding mobile applications.

Suitable for

• Motorhomes and caravans for charging phones, tablets and powering accessories
• Boats and marine equipment where a front‑mounted charging and switch solution is required
• Commercial vehicles and service vans for powering tools, lights and USB devices
• Industrial or mobile workstations that need visible voltage monitoring and protected charging

Key specifications

• Integrated USB‑A and USB‑C charging ports plus a 12 V socket
• Built‑in charger cable length for USB: 200 mm; other outputs with flat connectors
• Illuminated on/off switch with protective cover
• 7‑segment LED display for onboard voltage readout
• Protection against short circuit, overvoltage and high temperature
• Rounded front‑panel edges and dust/moisture protective covers
• Front‑panel mounting via two holes; compact dimensions suitable for dashboard installation

How to use

Mount the panel in a prepared front‑panel cutout and secure it using the two front mounting holes. Connect the USB charger cable and the flat connectors to the vehicle or equipment power supply following polarity and wiring best practices; ensure the supply is a compatible 12 V source. Use the illuminated switch to enable or disable power to the outlets; observe the 7‑segment LED to monitor onboard voltage while charging. Verify all connections and protective covers are in place before regular use.

Usage recommendations

Use short, proper gauge wiring and secure flat connectors to reduce voltage drop. Avoid exposing the panel to direct water jets; protective covers help against splashes and dust but do not substitute for waterproof enclosures. For reliable high‑speed charging, connect devices that support Quick Charge or Power Delivery via appropriate cables. Regularly inspect connectors and cable ends for corrosion or wear, and follow vehicle or equipment manufacturer guidelines for accessory loads.
