Industrial Relay Relpol R15-2013-23-5024-WT 3P 10A 24V AC

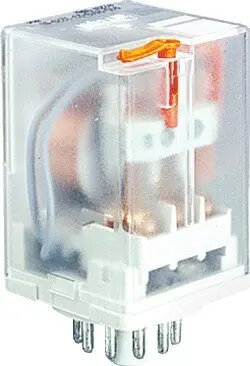

Relpol R15-2013-23-5024-WT is an industrial electromagnetic relay with three changeover poles and a 24 V AC coil. The unit provides compact, reliable switching for control circuits in automation equipment, machine control panels and relay modules. With a rated switching current of 10 A per contact, this relay is intended for general-purpose signal and load switching in electrical control systems where small footprint and three-pole changeover capability are required.

Advantages

The relay combines three changeover contacts in a single housing, reducing the need for multiple devices and simplifying wiring in control cabinets. A 24 V AC coil ensures compatibility with common industrial AC control supplies. The design supports reliable mechanical operation and straightforward integration into PLC interfaces, protection circuits and modular relay blocks.

Suitable for

• Switching and isolation of control signals in automation systems
• Interfacing between PLC outputs and field devices
• Relay modules and compact control panels where three-pole changeover is required
• Protection circuits and auxiliary switching in machinery

Key specifications

• Contact configuration: 3 changeover contacts (3P)
• Rated switching current: 10 A per contact
• Coil voltage and type: 24 V AC
• Actuation type: electromagnetic
• Intended mounting: panel or relay socket (compatible with relay modules)

How to use

Mount the relay in the appropriate socket or on a DIN rail adapter per the control cabinet layout and ensure the coil supply is a stable 24 V AC source. Connect the common, normally open and normally closed terminals according to the circuit diagram for the intended switching function. Verify contact ratings and wire sizes to match the 10 A switching capability and route wiring to avoid mechanical strain. Perform an initial functional test by energising the coil and confirming proper contact changeover under no-load and then under expected load conditions.

Usage recommendations

Use the relay within its rated current limits and in environments matching industrial electrical standards. Avoid exposing the device to excessive vibration, moisture or temperatures outside the specified operating range. When integrating with PLCs or protection circuits, include appropriate fusing, suppression or snubber components as required by the specific application.
