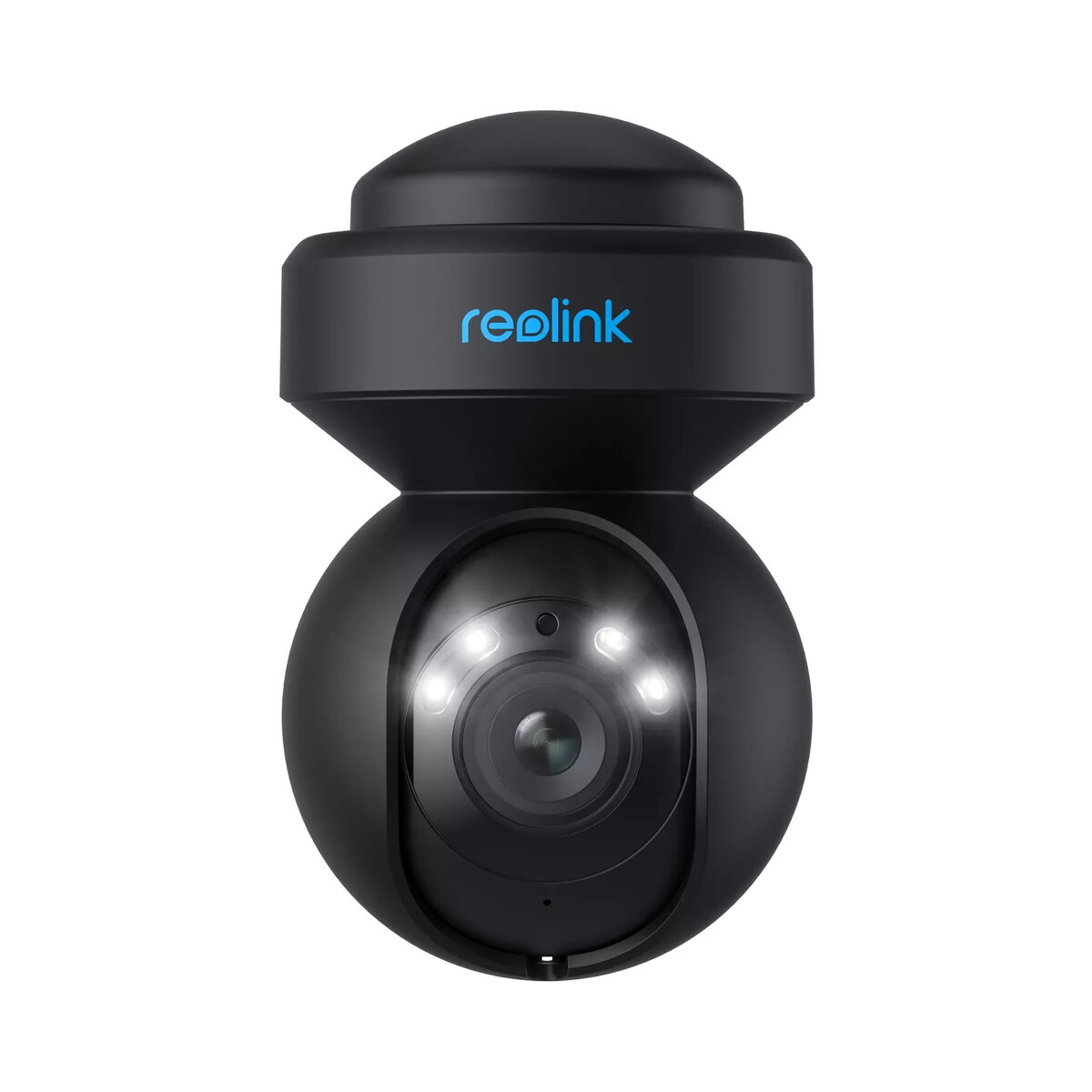

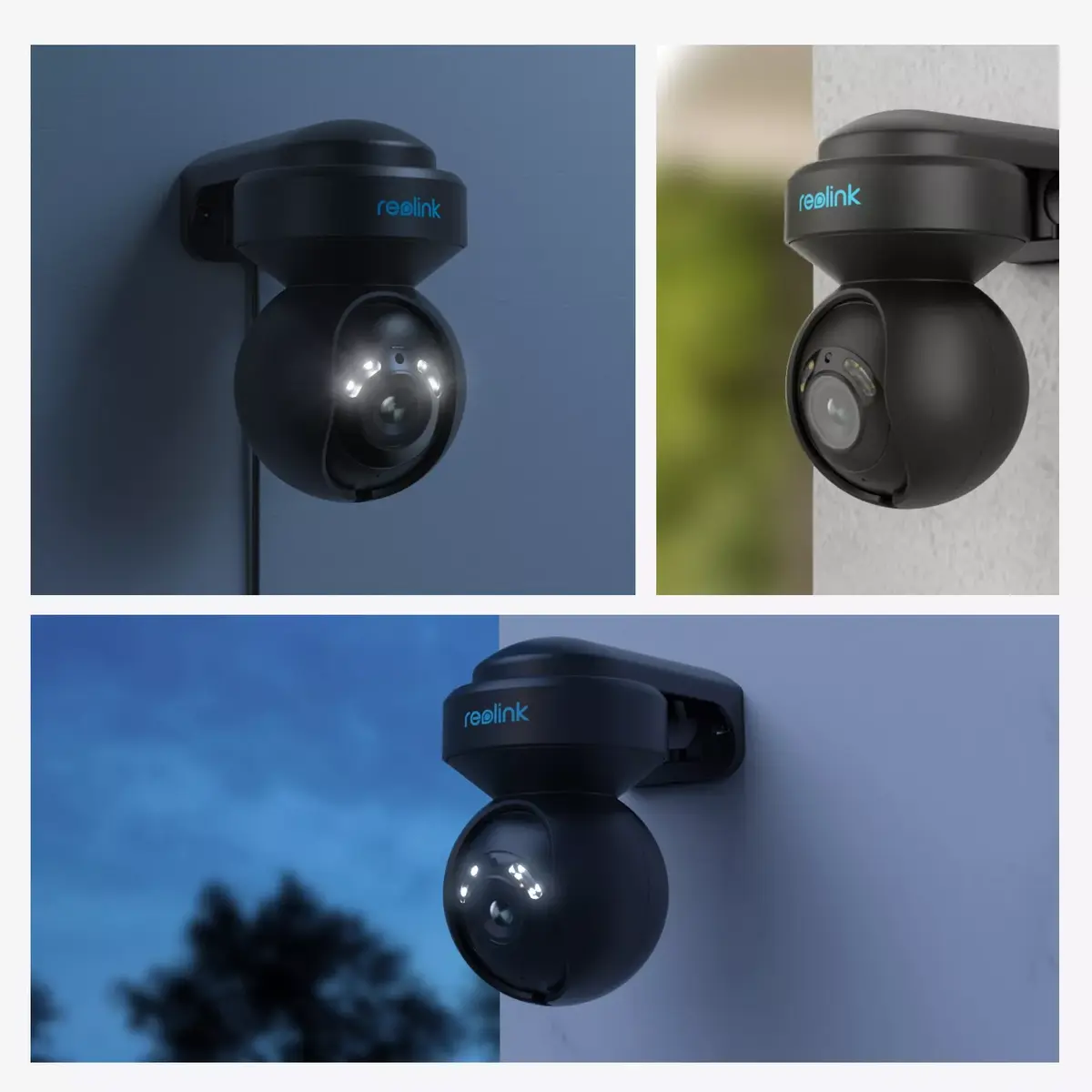

Type:
-
IP security camera
-
Weight:
-
0.415 kg
-
Wi-Fi standards:
-
802.11g, Wi-Fi 4 (802.11n), 802.11b, 802.11a
-
Audio system:
-
2-way
-
Security algorithms:
-
WPA2, WPA
-
Supported network protocols:
-
HTTPS, SSL, TCP/IP, UDP, IPv4, UPnP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
-
Operating relative humidity (H-H):
-
10 - 90
-
Compatible memory cards:
-
MicroSD (TransFlash)
-
Form factor:
-
Spherical
-
Built-in microphone:
-
Yes
-
Operating temperature (T-T):
-
-10 - 50
-
Ethernet LAN:
-
Yes
-
Height:
-
120 mm
-
Focal length range:
-
2.8 - 8
-
Sensor type:
-
CMOS
-
Optical sensor size:
-
25.4 / 2.7
-
Connectivity technology:
-
Wired & Wireless
-
Maximum resolution:
-
2560 x 1920
-
Product colour:
-
Black
-
Number of users:
-
20 user(s)
-
Networking standards:
-
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.11a
-
LED type:
-
IR/White
-
Tilt angle range:
-
0 - 50
-
Bluetooth:
-
No
-
Video compression formats:
-
H.264
-
Bit rate:
-
64 Kbps - 5120 Kbps
-
Ethernet LAN (RJ-45) ports:
-
1
-
DC-in jack:
-
Yes
-
Built-in speaker(s):
-
Yes
-
Pan range:
-
0 - 355
-
Diameter:
-
90 mm
-
Wi-Fi:
-
Yes
-
Card reader integrated:
-
Yes
-
Placement supported:
-
Indoor & outdoor
-
Frame rate:
-
20 fps
-
Reset button:
-
Yes
-
Manual:
-
Yes
-
Supported graphics resolutions:
-
2560 x 1920
-
Maximum aperture number:
-
1.6
-
Night vision:
-
Yes
-
Live view:
-
Yes
-
Number of illumination LEDs:
-
12
-
Mounting type:
-
Ceiling
-
Video motion detection:
-
Yes
-
Video formats supported:
-
H.264
-
DC output voltage:
-
12
-
DC output current:
-
1 A
-
Maximum memory card size:
-
256 GB
-
Ethernet interface type:
-
Fast Ethernet
-
International Protection (IP) code:
Device protection rating against dust and water according to the international IP standard.
-
IP65
-
Windows operating systems supported:
-
Y
-
Mac operating systems supported:
-
Y
-
Power source type:
-
DC
-
Total megapixels:
-
5 MP
-
Mounting kit:
-
Yes
-
Built-in HDD:
-
No
-
Night vision distance:
-
12
-
Video recording:
-
Yes
-
Infra-red wavelength:
-
850 nm
-
Number of cameras:
-
1
-
Mobile operating systems supported:
-
Android, iOS
-
Power consumption (max):
-
12 W
-

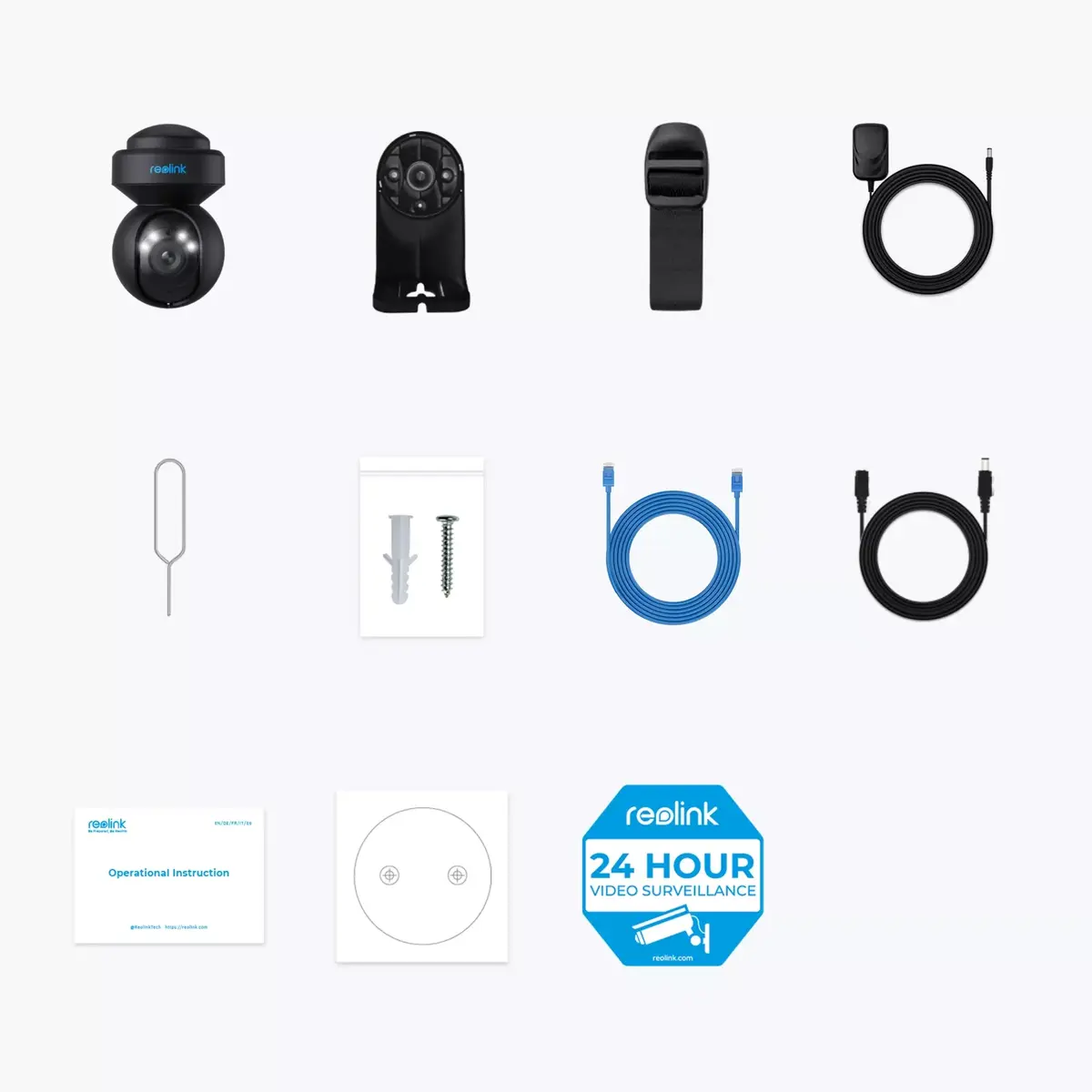

Packaging content:
-
1* E Series E540-B
1* Security Bracket
1* Strap
1* Power Adapter
1* Reset Needle
1* Pack of Screws
1* 4.5m Power Extension Cable
1* 1m Network Cable
1* Mounting Template
1* Quick Start Guide
1* Surveillance Sticker
-
Screws included:
-
Yes
-
Video streaming:
-
Yes
-
Number of lenses:
-
1
-
Infrared (IR) cut-off filter:
-
Yes
-
Number of sensors:
-
1
-
Virtual assistant:
-
Google Assistant
-
User access level:
-
User, Administrator
-
Human and vehicle targets classification:
-
Yes
-
Lens viewing angle, horizontal:
-
48 - 90
-
Lens viewing angle, vertical:
-
37 - 68
