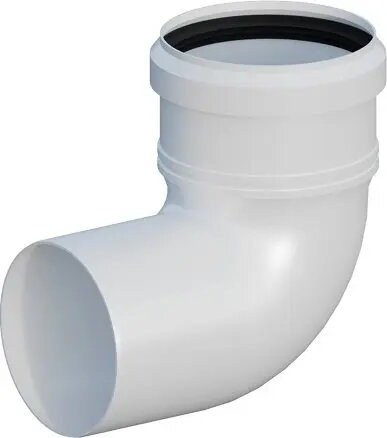

Ricom elbow PP 87° DN80 with gasket (model 10080B)

Ricom elbow PP 87° DN80 with gasket (model 10080B) is a polypropylene (PP) pipe fitting designed to connect DN80 pipes with an 87-degree bend. The fitting includes an integrated elastic gasket to create a reliable, leak-resistant joint without the need for additional sealing materials. It is intended for use in drainage, sewage and ventilation systems where a slight offset from a right-angle is needed, offering a compact, lightweight solution that is corrosion-resistant and simple to install.

Advantages

The Ricom PP elbow is made from durable polypropylene, providing chemical resistance and long service life in typical non-pressurized drainage and sewage applications. The integrated gasket ensures consistent sealing performance and reduces installation time by eliminating separate seal assembly. Its 87° angle allows for minor directional adjustments where a standard 90° elbow would be too abrupt, and the smooth inner surface supports efficient flow and reduced risk of blockage.

Suitable for

• Domestic and light commercial drainage systems
• Sewage and waste pipe connections using DN80 dimensions
• Ventilation runs requiring a slight directional offset
• Retrofit or repair jobs where compact fittings are needed

Key specifications

• Material: polypropylene (PP)
• Connection size: DN80
• Angle: 87°
• Seal type: integrated elastic gasket for socket connection
• Typical applications: gravity drainage, sanitary sewage, ventilation
• Surface: smooth inner bore to facilitate flow

How to use

Ensure pipe ends are clean, free of burrs and cut squarely. Apply the DN80 pipe end into the socket until it seats against the stop and the gasket; confirm correct insertion depth. For a secure joint, push the pipe evenly and avoid twisting; the integrated gasket provides the seal. Inspect the assembled joint for alignment and remove any excess debris. The fitting is intended for non-pressurized gravity systems; follow local building codes and standards for spacing, slope and support of pipeline runs.

Usage recommendations

Store fittings in a dry, shaded area away from direct sunlight and extreme temperatures. Use appropriate supports to prevent strain at the joint and avoid exposure to aggressive solvents or high-temperature media beyond polypropylene material limits. For long runs or where access is limited, plan connections to allow inspection and maintenance.
