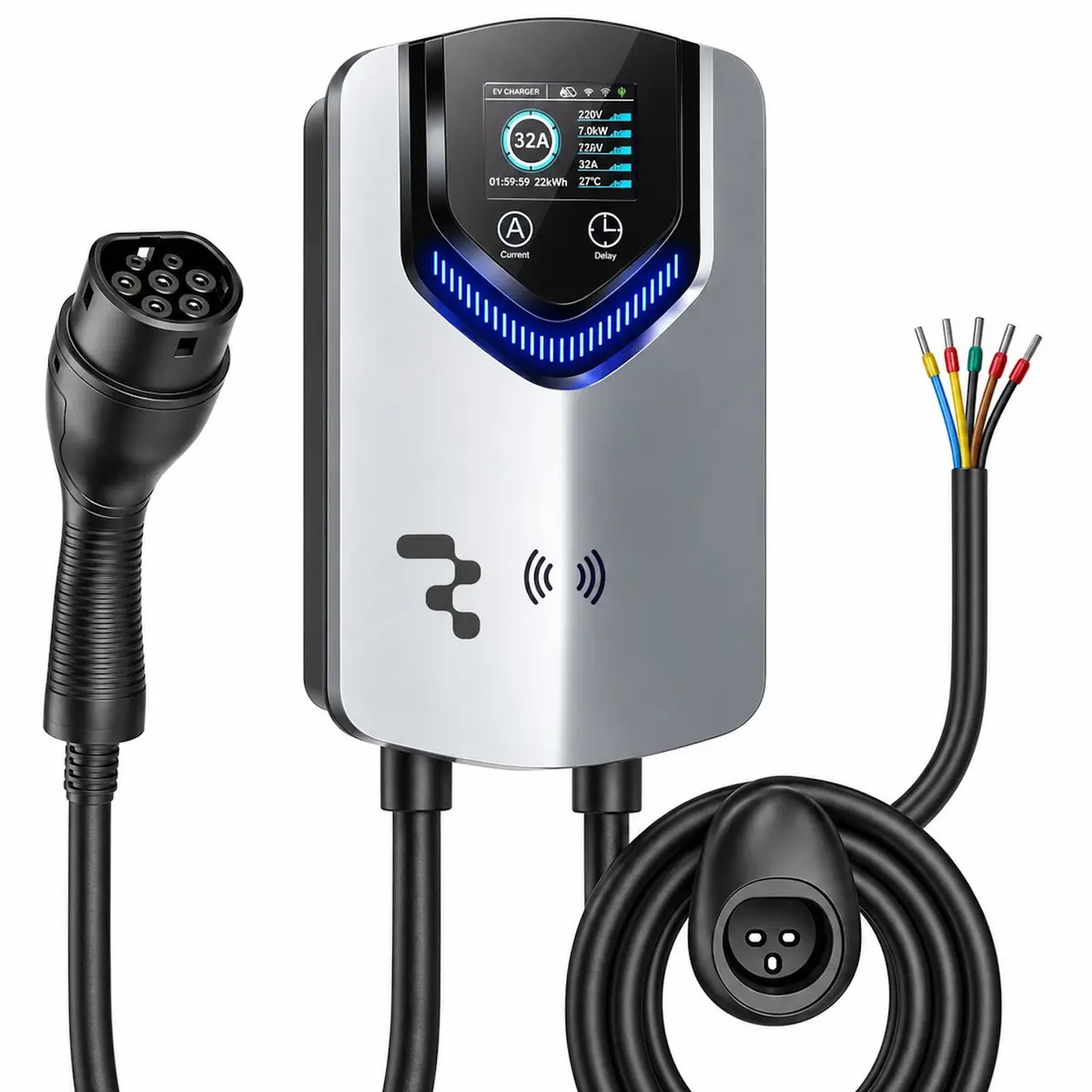

The Riff CS01-22 electric vehicle charging station is compared with four alternative models from the Riff brand: Riff CS04-11, Riff CS21-11, Riff CS41-11, and Riff EVCS8L. All units support the Type 2 standard, come with a 5-meter charging cable, feature an IP65 protection rating, and provide comprehensive electrical safety. The main differences between the models lie in their maximum power output, current rating, display size, and the inclusion of advanced load management and delayed start functions.
⚙️ The following specifications table details the key technical parameters of the devices, such as maximum power, current, screen size, and dynamic load balancing availability, to demonstrate differences in performance and control capabilities.
| Parameter | Riff CS01-22 | Riff CS04-11 | Riff CS21-11 | Riff CS41-11 | Riff EVCS8L | Practical Significance |
|---|
| Connector and Cable | Type 2, 5 m | Type 2, 5 m | Type 2, 5 m | Type 2, 5 m | Type 2, 5 m | All models are equipped with the same connector standard and an optimal cable length for convenient vehicle connection. |
| Maximum Power | 22 kW | 11 kW | 11 kW | 11 kW | 11 kW | The Riff CS01-22 delivers twice the charging power, reducing energy replenishment time when supported by a high-capacity three-phase electrical supply. |
| Current Rating | 32 A | 16 A | 16 A | 16 A | 16 A | The higher current rating of the Riff CS01-22 requires appropriate electrical wiring but ensures accelerated charging. |
| Display | 2.8-inch | Digital indicator | 2.4-inch | 4.3-inch | 4.3-inch | The Riff CS41-11 and Riff EVCS8L models feature larger screens for detailed monitoring of charging parameters. |
| Dynamic Load Management | No | No | No | No | Yes (3 CT clamps) | The Riff EVCS8L can automatically balance phase loads in real-time, preventing overloads in home electrical grids. |
◎ The table below evaluates the suitability of each model for specific usage scenarios and electric vehicle owner needs.
| Use Case | Recommended Product | Why |
|---|
| Fastest home or commercial charging | Riff CS01-22 | Provides up to 22 kW of power at 32 A, significantly reducing charging times for compatible vehicles. |
| Standard and efficient 11 kW charging | Riff CS04-11 | Delivers standard 11 kW power with reliable IP65 protection and basic status indication for daily use. |
| Daily charging with parameter monitoring | Riff CS21-11 | Equipped with a convenient 2.4-inch display and a delayed start function to optimize charging schedules. |
| Wall-mounted use with an expanded screen | Riff CS41-11 | Offers an enlarged 4.3-inch display and convenient on-body controls for comfortable process tracking. |
| Home grid overload protection | Riff EVCS8L | Includes a dynamic load management system with three current transformers for safe power distribution. |
The Riff CS01-22 electric vehicle charging station stands out among alternative models by supporting an increased power output of 22 kW and a 32 A current, making it the optimal choice for users who require the fastest possible charging and whose electrical grid can support higher loads. While the 11 kW versions suit standard residential conditions, the Riff CS01-22 is preferable for minimizing vehicle downtime at the charger.
