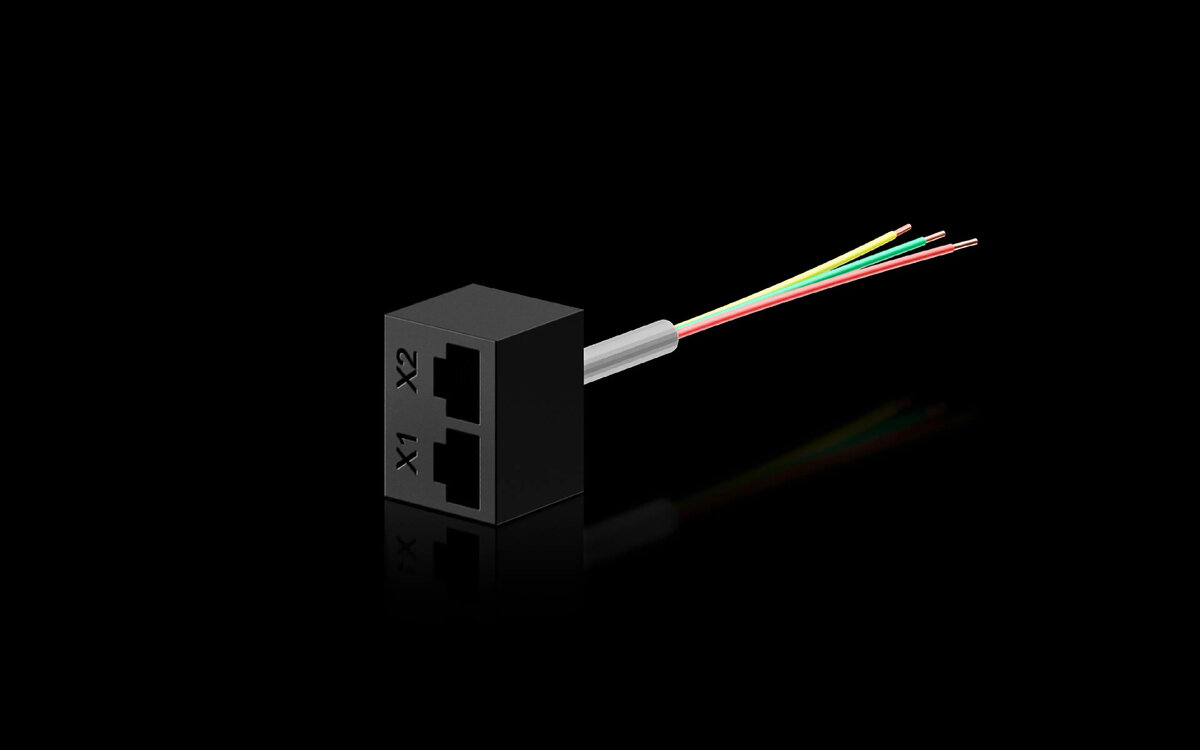

Rittal Y Adapter Modbus EC Black – EC female connector, 100 m cable length

The Rittal Y Adapter Modbus EC Black is a passive Modbus connection accessory designed to link EC-controlled components such as Blue e+ EC filter fans on a shared Modbus line. With an EC female connector and a 100 m cable length, this adapter enables daisy-chaining or parallel connection of devices within control cabinets and ventilation systems without active signal conversion. The product is supplied in a single-piece configuration and is intended for straightforward integration where an EC female interface is required.

Advantages

This Y adapter provides a passive, plug-and-play style connection for EC devices, reducing wiring complexity when multiple fans or EC modules must share a common Modbus bus. The EC female interface ensures compatibility with EC male connectors used on many Blue e+ filter fans and other EC-controlled components. Its 100 m cable length supports longer runs within industrial or commercial enclosures, and the black jacket offers a neutral appearance that fits standard cabinet interiors.

Suitable for

• Connecting multiple Blue e+ EC filter fans on a single Modbus line
• Extending Modbus EC connections within control cabinets and server racks
• Linking EC-controlled ventilation components in industrial or commercial HVAC systems

When it may not be suitable

This adapter is a passive Y connector and does not include active signal amplification, protocol conversion, or termination features. It may not be suitable for installations that require signal conditioning, long-term network diagnostics, or active network management. For systems with complex bus topologies, high node counts, or environments with significant electromagnetic interference, an active repeater or managed bus device could be more appropriate.

Key specifications

• Connector type: EC female
• Cable length: 100 m
• Colour: Black
• Quantity: 1 piece
• Function: Passive Modbus Y adapter for EC devices

How to use

Install the adapter by plugging the EC female connector(s) into the corresponding EC male connectors of the devices to be linked. Route the 100 m cable inside the cabinet or along the intended path, avoiding sharp bends and contact with high-voltage wiring. Use appropriate strain relief at cable entry points and secure the cable to prevent movement. Verify Modbus addressing and bus termination according to the overall network design; since the adapter is passive, termination and addressing must be handled elsewhere in the network.

What to consider before purchase

• Confirm the target devices use EC male connectors compatible with an EC female interface
• Assess whether a passive adapter meets requirements for signal integrity and bus management in your installation
• Check required cable routing length to ensure the 100 m cable is sufficient
• Evaluate environmental conditions inside the cabinet to confirm the cable and connector materials are appropriate

Usage recommendations

For reliable operation, integrate the Y adapter into a planned Modbus network topology with proper addressing and termination. Avoid routing the cable alongside high-power lines, and use additional protection or repeaters for long runs or electrically noisy environments. Regularly inspect connections for secure seating and signs of wear when used in maintenance-prone installations.
