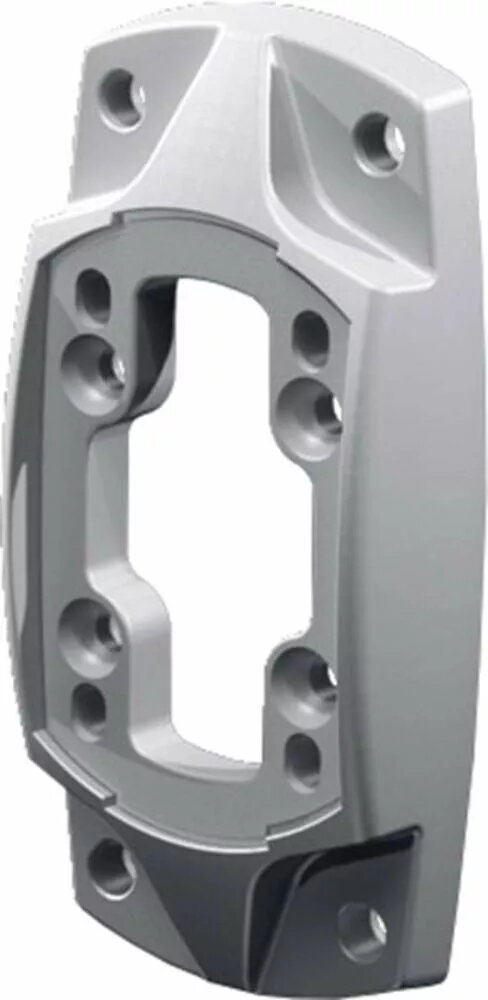

Bracket for support arm system Rittal CP 120 Small Wall/base – model 6212.820, RAL 7035

Rittal CP 120 Small Wall/base bracket in RAL 7035 is a compact mounting component intended to secure support arm systems to vertical or horizontal surfaces. Designed for use with the CP 120 range, this bracket provides a stable connection point for mounting arms used in control cabinets, industrial workstations and equipment installations where a reliable and space-efficient interface is required.

Advantages

The bracket offers a robust and space-saving solution for fastening CP 120 support arms, with a neutral RAL 7035 finish that integrates into industrial and machine-room environments. Its compact design simplifies fitting in confined areas while ensuring the mechanical stability needed for mounted arm assemblies. The bracket is compatible with standard CP 120 components, allowing straightforward replacement or expansion of existing support structures.

Suitable for

• Mounting CP 120 support arms on walls
• Securing support arms to floor or base plates
• Equipment installations inside control cabinets and switchgear rooms
• Industrial workstations and machine enclosures requiring compact arm fixtures

When it may not be suitable

This small wall/base bracket is intended for CP 120 support arm systems and compact mounting situations; it may not be suitable where heavy-duty or high-load bearing support is required. For applications that demand larger cantilever capacity, wider mounting surfaces, or specialised vibration isolation, consider heavier-duty mounting solutions or larger bracket variants.

Key specifications

• Intended system compatibility: CP 120 support arm series
• Function: wall or base mounting for support arms
• Finish: RAL 7035 (light grey)
• Form factor: compact / small bracket designed for confined spaces
• Typical applications: control cabinets, industrial workstations, equipment enclosures

How to use

Install the bracket by aligning it with the intended wall or base mounting points and secure it using appropriate fasteners for the substrate (e.g., bolts for steel frames or anchors for masonry). Attach the CP 120 support arm assembly to the bracket according to thearm system instructions, ensuring all connection points are tightened to the recommended torque. Verify the mounted arm is level and check load clearance and movement range before bringing equipment into service.

What to consider before purchase

• Confirm compatibility with the CP 120 support arm components you intend to use
• Assess mounting surface material and select suitable fasteners or anchors
• Evaluate the expected load and moment to ensure the small bracket capacity is sufficient
• Consider required clearance and space constraints in the installation area

Usage recommendations

Use the bracket as part of a complete CP 120 support arm assembly and follow the system installation guidelines. Regularly inspect mounting fasteners and bracket condition in routine maintenance checks, especially in high-vibration environments, and replace if deformation or corrosion is observed.
