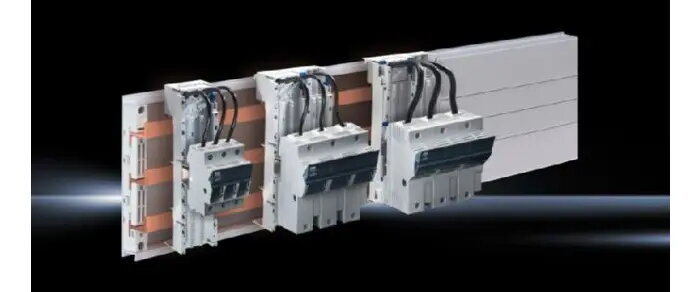

Fuseholder Rittal SV 9345.035, Class J, 3-pole, 600 V, 60 A, light grey

The Rittal SV 9345.035 is a 3-pole Class J fuseholder designed for 600 V systems and a rated current of 60 A. Finished in light grey, this fuseholder provides a reliable mechanical and electrical connection for Class J fuses used in control panels, distribution blocks, and industrial switchgear. Its three-pole configuration enables simultaneous protection of three phase conductors in compact installations where secure fuse mounting and replacement access are required.

Advantages

This fuseholder supports Class J fuses and is specified for a 60 A rated current at voltages up to 600 V, offering compatibility with a common industrial fuse class. The 3-pole construction simplifies wiring for three-phase systems and reduces the need for multiple single-pole holders. Its light grey housing provides visual neutrality in panel layouts and is made to withstand typical electrical enclosure environments, enabling straightforward installation and maintenance.

Suitable for

• Three-phase motor protection and branch circuit protection in industrial panels
• Control panels and distribution assemblies that use Class J fuses
• Commercial electrical installations requiring a 60 A, 600 V fuse solution

When it may not be suitable

This fuseholder is intended specifically for Class J fuses and for systems rated up to 600 V and 60 A. It may not be appropriate for installations that require other fuse classes (for example, Class RK1 or Class CC) or for systems with higher voltage or current requirements. Additionally, if the design requires integrated surge suppression, current-limiting devices, or fused disconnects with additional switching features, a different component would be more suitable.

Key specifications

• Poles: 3-pole configuration for three-phase protection
• Fuse class compatibility: Class J fuses
• Rated voltage: up to 600 V
• Rated current: 60 A
• Housing color: light grey

How to use

Mount the fuseholder securely in the panel or enclosure according to panel cutout and mounting guidelines, ensuring proper mechanical support and clearance for heat dissipation. Fit compatible Class J fuses into each pole, tighten any terminal connections to the recommended torque values, and verify correct wiring for the three-phase supply. Perform insulation and continuity checks before energizing the circuit. For replacement or maintenance, de-energize the circuit, remove the blown fuse, and insert a matching Class J fuse of the correct current rating.

What to consider before purchase

• Confirm compatibility with Class J fuse dimensions and ratings used in your system
• Verify that 60 A and 600 V ratings meet the load and system voltage requirements
• Ensure panel space and mounting provisions match the fuseholder dimensions and three-pole layout

Usage recommendations

Use matched Class J fuses with the specified 60 A rating to maintain overcurrent protection performance. Follow manufacturer torque settings and panel wiring standards when tightening terminals. Always de-energize the circuit before servicing the fuseholder and consult applicable electrical codes for installation and protective device coordination.
