Circuit breaker accessory Rittal SV 9345.704 4‑pole adapter for 500A breakers, bottom cable outlet

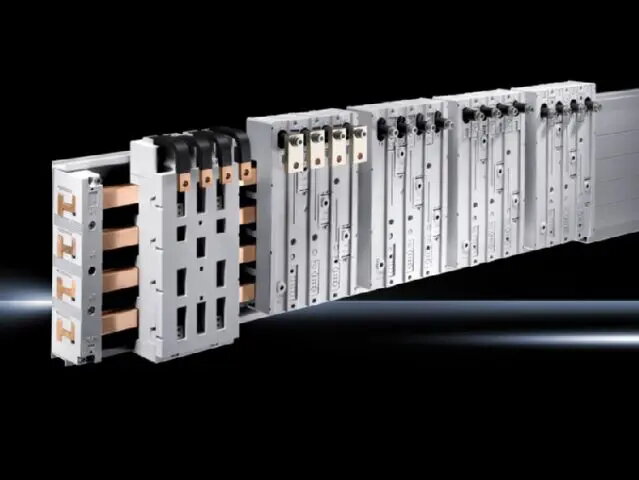

Rittal SV 9345.704 is a circuit breaker accessory designed as a 4‑pole adapter for use with 500A breakers. The adaptor provides a bottom cable outlet to simplify line routing and connection within industrial switchgear and distribution panels. Supplied as a single unit, it is intended to integrate with compatible high‑current circuit breakers to support safe and organized power distribution.

Advantages

The 4‑pole design supports three phases plus neutral in a compact adapter, enabling consistent conductor alignment and reliable electrical contact. A bottom cable outlet offers a predictable routing path for incoming or outgoing conductors, which helps reduce installation time and improves cable management inside enclosures. Constructed to meet industrial requirements, the adapter contributes to clearer panel layouts and easier maintenance access.

Suitable for (tasks / use cases)

• Integration into industrial electrical distribution boards and switchgear for 500A circuits
• Applications requiring a bottom cable exit for space-constrained enclosures
• Retrofit or replacement work where a single-piece 4‑pole adapter is needed
• Electrical panels needing organized conductor routing and simplified connections

When it may not be suitable

This adapter is intended for use with compatible 500A circuit breakers; it may not be suitable for breakers of different current ratings or form-factors. It is not a standalone protective device and must be used as part of a properly specified breaker and enclosure system. Installation should follow the breaker and panel manufacturer's mechanical and electrical specifications.

Key specifications

• Poles: 4 (three phases + neutral)
• Rated application current: for 500A breaker assemblies
• Cable outlet orientation: bottom exit for conductor routing
• Packaging: supplied as a single-piece adapter
• Intended environment: industrial switchgear and distribution panels

How to use

Mount the adapter to the compatible circuit breaker following the mechanical instructions provided by the breaker and adapter manufacturers. Route conductors through the bottom outlet and make electrical connections according to the panel wiring diagram and applicable electrical standards. Verify tightness and clearances, and perform insulation and continuity checks as part of commissioning. Ensure all work is performed by qualified personnel and power is isolated before installation.

What to consider before purchase

• Compatibility with the specific breaker model and mechanical mounting dimensions
• Confirmed suitability for 500A rated circuits and conductor sizes used
• Required orientation of cable outlet (bottom) to fit enclosure layout
• Compliance with local electrical standards and installation practices

Usage recommendations

Use this 4‑pole adapter in combination with the specified 500A breakers and within manufacturer-recommended enclosures. During installation, follow torque, clearance, and test procedures from the breaker and panel manufacturers to ensure safe, reliable operation.
