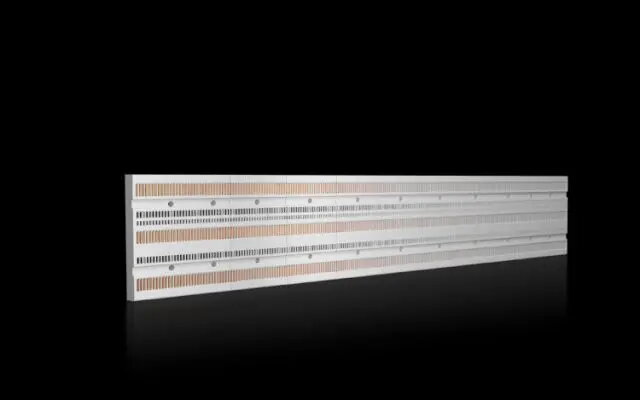

Electrical switch accessory Rittal SV 9635.045 — polyamide/polycarbonate housing, light grey, for RiLine Compact 1000 mm, 160 A

Rittal SV 9635.045 is an electrical switch accessory designed for RiLine Compact busbar systems. The component features a light grey polyamide/polycarbonate housing sized for a 1000 mm board length and supports 160 A configurations. It is certified to UL 508 and IEC 61439 standards, providing an insulating enclosure suitable for industrial control panels and power distribution assemblies that require robust electrical separation and mechanical protection.

Advantages

The polyamide/polycarbonate construction combines mechanical strength with electrical insulation, delivering resistance to impact and environmental stress in typical industrial settings. Compatibility with RiLine Compact 1000 mm busbar systems ensures straightforward integration into existing layouts and simplifies installation. Certifications to UL 508 and IEC 61439 indicate conformity with international safety and assembly requirements for control and power distribution equipment.

Suitable for

• Integration into RiLine Compact 1000 mm busbar assemblies in control cabinets
• Industrial control panels requiring a 160 A rated insulated housing
• Power distribution modules and switchgear enclosures where mechanical protection and electrical insulation are needed

When it may not be suitable

This accessory is intended specifically for RiLine Compact systems and a 1000 mm board length; it may not fit other busbar form factors or lengths. It is a housing accessory and does not include active switching elements — systems that require integrated breakers, contactors, or monitoring electronics will need additional components.

Key specifications

• Housing material: polyamide/polycarbonate blend
• Color: light grey
• Designed board length: 1000 mm
• Current support: 160 A configurations
• Standards: UL 508, IEC 61439

How to use

Position the Rittal SV 9635.045 housing over the RiLine Compact busbar at the designated 1000 mm segment, ensuring correct alignment with mounting points and adjacent components. Secure the housing according to Rittal installation guidance, verify mechanical fastening and clearances, and confirm electrical compatibility with the 160 A configuration in the assembly. After installation, perform standard visual and mechanical checks and follow applicable electrical safety tests before energizing the system.

What to consider before purchase

• Compatibility with your RiLine Compact busbar system and confirmation of 1000 mm board length
• Required current rating in your application (160 A support)
• Verification that a housing accessory (not an active switching device) meets your functional needs
• Compliance requirements in your jurisdiction related to UL 508 and IEC 61439

Usage recommendations

Use this accessory as part of a complete RiLine Compact installation; follow Rittal mounting and safety instructions, ensure torque and clearance specifications are observed, and combine with appropriately rated conductors and protective devices for reliable operation.
