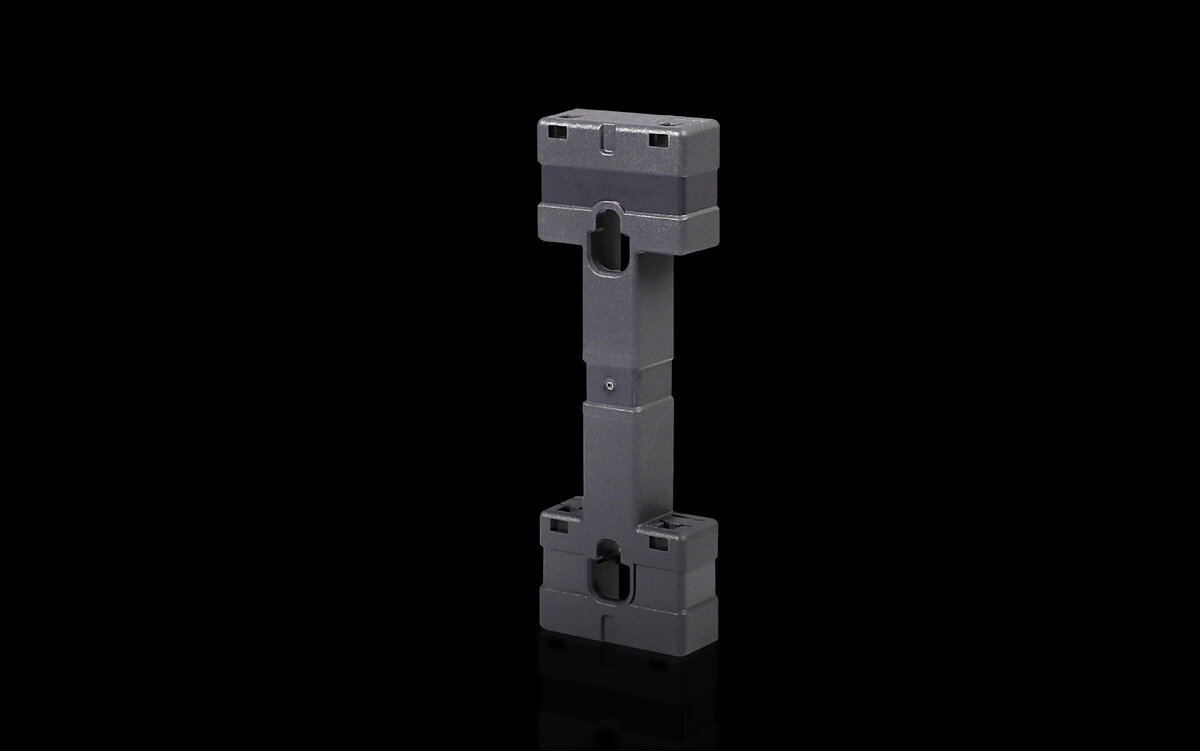

Adapter for electrical switch, Rittal 9635.091 — light grey polyamide housing, for RiLine Compact

Rittal 9635.091 is an adapter for electrical switches designed specifically for RiLine Compact mounting systems. The unit has a light grey polyamide housing and is supplied as a single adapter weighing approximately 120 g. It provides a mechanical interface that allows switch modules to be mounted securely in distribution boards and enclosures for industrial electrical installations and panel assembly tasks.

Advantages

The polyamide housing offers mechanical robustness and resistance to common workshop conditions while keeping weight low. The adapter is designed for straightforward integration with RiLine Compact rails and supports reliable positioning of switch devices within control cabinets. Supplied as a single unit, it simplifies inventory and replacement processes for maintenance and assembly work.

Suitable for

• Mounting electrical switches and small control modules on RiLine Compact distribution rails
• Panel assembly and retrofitting in industrial control cabinets and enclosures
• Electrical distribution boards where compact, rail-mounted switching components are required

When it may not be suitable

This adapter is intended as a mechanical mounting accessory and does not include electrical contacts, wiring, or switch mechanisms. It may not be suitable where integrated electrical functionality, custom form factors, or specific certifications beyond material and mechanical compatibility are required. For applications demanding load-bearing or environmental properties outside standard indoor industrial conditions, verify compatibility before use.

Key specifications

• Housing material: polyamide (light grey)
• Intended mounting system: RiLine Compact rails
• Unit weight: approximately 120 g
• Supply configuration: single adapter unit

How to use

Align the adapter with the RiLine Compact rail and engage it according to the rail’s mounting profile until it locks into position. Insert the intended switch module into the adapter’s interface and secure it following the module manufacturer’s instructions. Ensure all mechanical connections are firm and that adjacent components allow sufficient clearance. For maintenance, remove the switch module before inspecting the adapter and reinstall using the same engagement procedure.

What to consider before purchase

• Confirm compatibility with your RiLine Compact rail profile and the intended switch or module dimensions
• Check that polyamide material and light grey finish meet your environmental and aesthetic requirements
• Verify that a single-unit supply meets your project quantity needs or order additional units as required

Usage recommendations

Use the adapter only with compatible RiLine Compact components and follow the enclosure and panel manufacturer’s assembly guidelines. For electrical connections, rely on the switch module’s specifications and certified wiring practices; the adapter provides mechanical support but does not replace proper electrical installation.
