Rittal 9340.470 Cable Management Panel

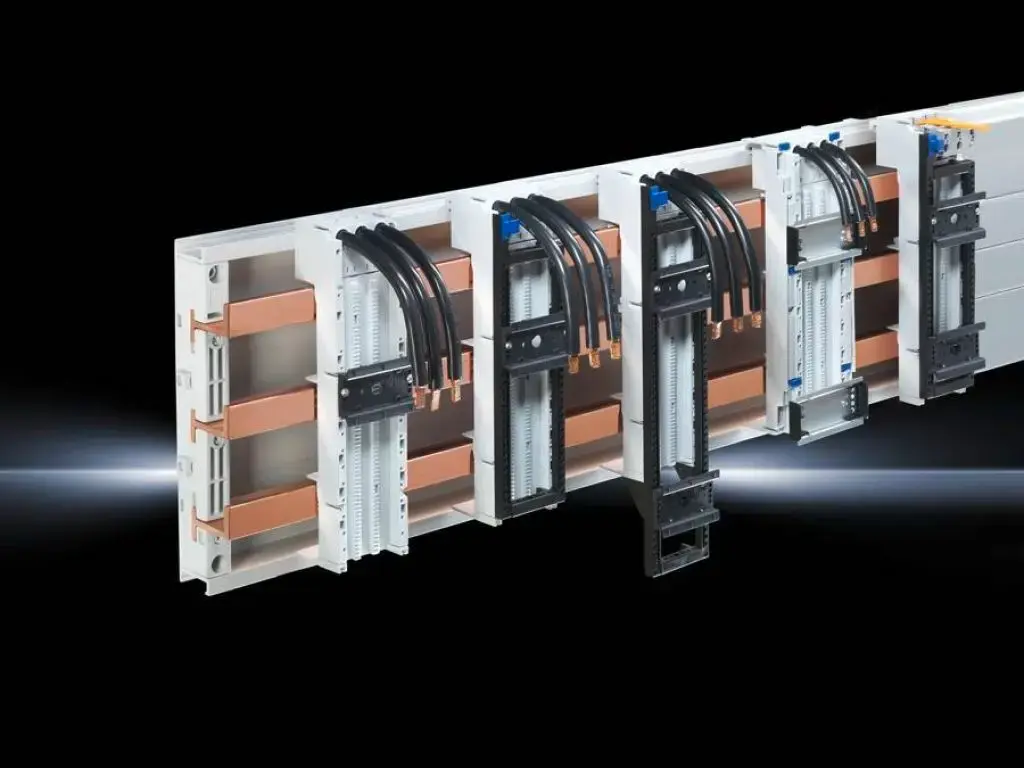

The Rittal 9340.470 is a professional-grade OM adapter designed for secure and efficient power distribution within electrical enclosures. Engineered for high-performance applications, this 3-pole component supports a current rating of 32 A and a voltage rating of 690 V. Its compact design, measuring 55x208 mm, allows for seamless integration into existing support frame and rail systems, specifically compatible with TS 55D configurations. By providing a reliable connection point, this adapter ensures stability and safety in complex power management setups.

Advantages

This adapter offers exceptional durability and precision engineering, characteristic of Rittal components. It facilitates organized power routing, which is essential for maintaining a clean and functional electrical environment. The robust construction ensures long-term reliability even under demanding operational conditions, while the standardized dimensions allow for quick and straightforward installation into compatible support rails. Its design effectively minimizes space consumption while maximizing connectivity efficiency.

Suitable for

• Power distribution in industrial enclosures
• Integration with TS 55D support rail systems
• Data center and server cabinet power management
• Professional electrical infrastructure setups

When it may not be suitable

This component is specifically designed for use with TS 55D support rails and may not be compatible with other mounting systems or non-standard enclosure configurations. It is intended for professional electrical applications and should not be used in environments that exceed its specified voltage or current ratings.

Key specifications

• Current rating: 32 A
• Voltage rating: 690 V
• Number of poles: 3-pole
• Dimensions: 55 mm x 208 mm
• Connection cable: AWG 10
• Compatibility: TS 55D support rail and support frame

How to use

To install the Rittal 9340.470, ensure the power supply is disconnected and the enclosure is de-energized. Align the adapter with the designated TS 55D support rail within the cabinet. Secure the unit firmly onto the rail, ensuring that the connection points are properly seated. Connect the AWG 10 cables according to the required electrical schematic, verifying that all terminals are tightened to the manufacturer's specified torque settings before restoring power.

What to consider before purchase

• Verify compatibility with your existing TS 55D support rail system
• Ensure the 32 A and 690 V ratings meet your specific power requirements
• Check the available space within the enclosure for the 55x208 mm footprint
• Confirm that the AWG 10 cabling is appropriate for your installation needs

Usage recommendations

Always adhere to local electrical safety regulations and guidelines during installation. It is recommended to perform a final inspection of all connections and mounting points to ensure structural integrity and electrical safety before activating the system.
